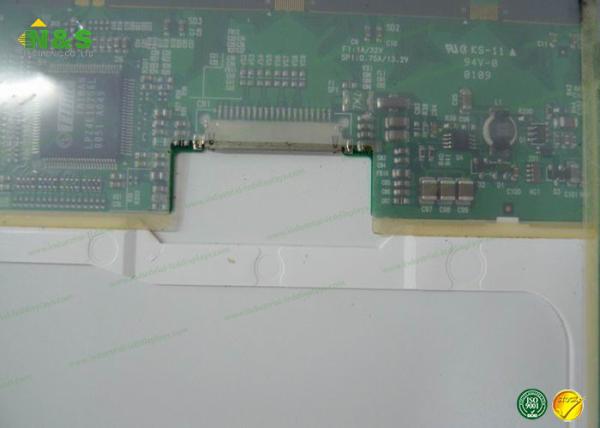

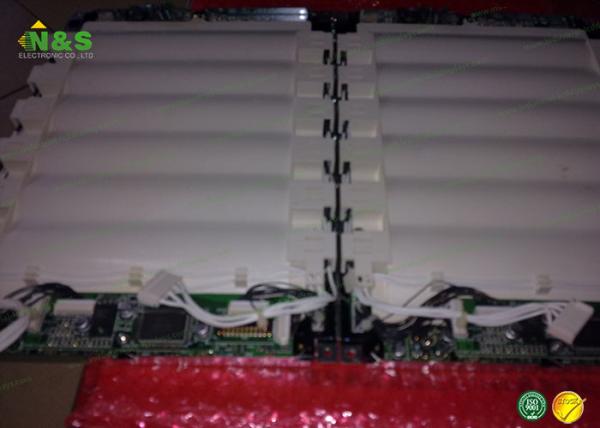

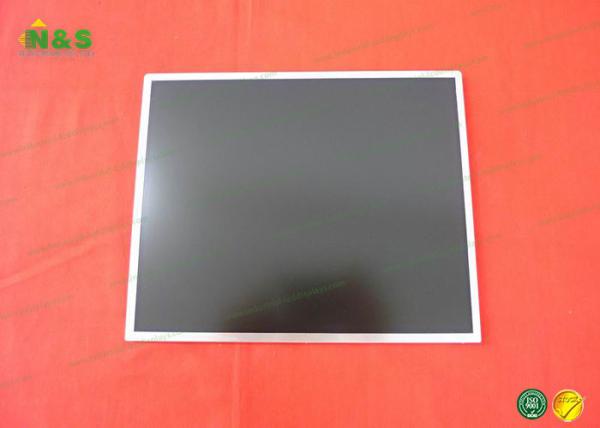

10.4 inch LG LCD Panel LP104V2-B1 with 640*480 Dot Resolution

Product Application

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

LG. LCD LP104V2-B1 General Features

LG. LCD LP104V2-B1 Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 380g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.8×163.0 mm (H×V)
Outline Dimension : 246.5×179.4 mm (H×V)
Outline Depth : 8.0 (Typ.) mm
Holes & Brackets : Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

LG. LCD LP104V2-B1 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 280 cd/m² (Typ.)
Contrast Ratio : 200 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 10/35 (Typ.)(Tr/Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.317; Wy:0.331
White Variation : 1.20/1.40 (Typ./Max.)(9 points)

More Information For N&S electronic Co.,LTD:

1. Agent Brand:

* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you canget the most competitive price for real products.

2. Quality to be ensure:

All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory;Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.

3.Quickly delivery:

We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;

4.long-term partner:

* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;

5. Super After-Sale service:

N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;

6.the best TFT LCD solution:

*more tft lcd model detail information including,size, resolution, brightness, operating temperature or life time etc.

Below are our other LCD panels stock for your easy reference:

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
