Innolux LCD Panel P070BAG-CM1 7.0 inch 154.214×85.92 mm Active Area 164.9×100×5.1 mm Outline
Innolux LCD Panel P070BAG-CM1 7.0 inch 154.214×85.92 mm Active Area 164.9×100×5.1 mm Outline
Innolux LCD Panel P070BAG-CM1 7.0 inch 154.214×85.92 mm Active Area 164.9×100×5.1 mm Outline
Innolux LCD Panel P070BAG-CM1 7.0 inch 154.214×85.92 mm Active Area 164.9×100×5.1 mm Outline
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
P070BAG-CM1
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
7.0 inch
Resolution :
1024(RGB)×600 , WSVGA
Display Mode :
TN, Normally White, Transmissive
Response Time :
10/15 (Typ.)(Tr/Td)
Viewing Angle :
75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency :
60Hz
Lamp Type :
WLED
Description

Innolux LCD Panel P070BAG-CM1 7.0 inch 154.214×85.92 mm Active Area 164.9×100×5.1 mm Outline

INNOLUX P070BAG-CM1 General Features

Panel Brand :INNOLUX
Panel Model :P070BAG-CM1
Panel Type :a-Si TFT-LCD , Panel
Panel Size :7.0 inch
Resolution :1024(RGB)×600 , WSVGA
Display Mode :TN, Normally White, Transmissive
Active Area :154.214×85.92 mm
Outline :164.9×100×5.1 mm
Surface :Hard coating
Brightness :500 cd/m² (Typ.)
Contrast Ratio :800:1 (Typ.)
Display Colors :262K/16.7M (6-bit / 6-bit + Dithering) , CIE1931 70%
Response Time :10/15 (Typ.)(Tr/Td)
Viewing Angle :75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :WLED
Signal Interface :LVDS (1 ch, 6/8-bit) , 40 pins
Input Voltage :3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)


Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

INNOLUX P070BAG-CM1 Optical Features

Display Mode :TN, Normally White, Transmissive
Brightness :500 cd/m² (Typ.)
Contrast Ratio :800 : 1 (Typ.) (Transmissive)
Display Color :262K/16.7M (6-bit / 6-bit + Dithering)
Color Gamut :70% NTSC (CIE1931)
Response Time :10/15 (Typ.)(Tr/Td)
Viewing Angle :75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :6 o'clock
White color Chromaticity :Wx:0.310; Wy:0.330
White Variation :1.33/1.43 (Typ./Max.)(9 points)


Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
V156B2-P02Innolux15.6"1366×768
N154I2-P05Innolux15.4"1280×800
C03024-01ZInnolux3.0"960×480(dot)
G121IJ1-P01Innolux12.1"1280×800
F04307-06ZInnolux4.3"480×800
CG043JN16Innolux4.3"480×800
F04008-01UInnolux4.0"480×800
N156BGE-P21Innolux15.6"1366×768
F04801-01ZInnolux4.8"540×960
N133HSG-D31Innolux13.3"1920×1080

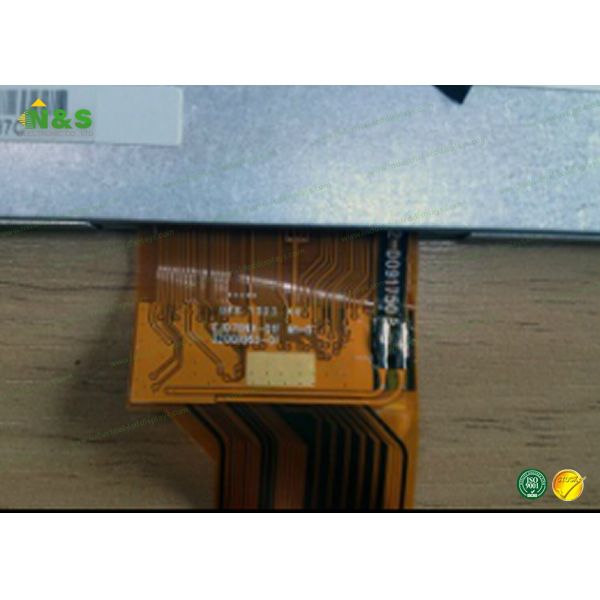

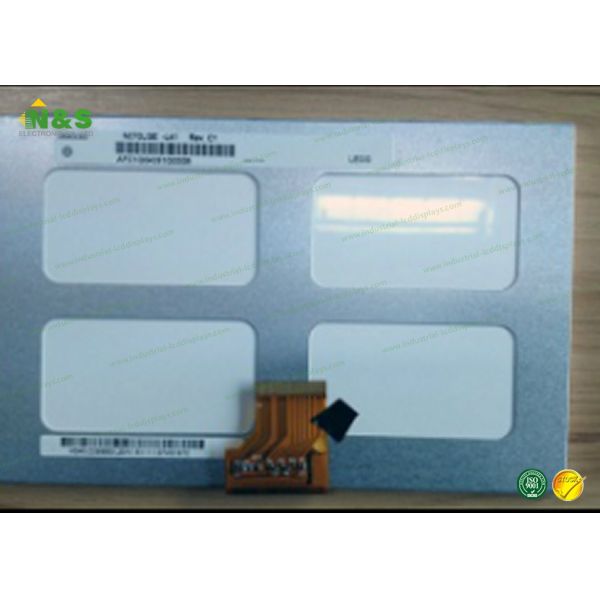

Details Pictures for Innolux LCD Panel P070BAG-CM1

Innolux LCD Panel P070BAG-CM1 7.0 inch 154.214×85.92 mm Active Area 164.9×100×5.1 mm Outline

Innolux LCD Panel P070BAG-CM1 7.0 inch 154.214×85.92 mm Active Area 164.9×100×5.1 mm Outline
