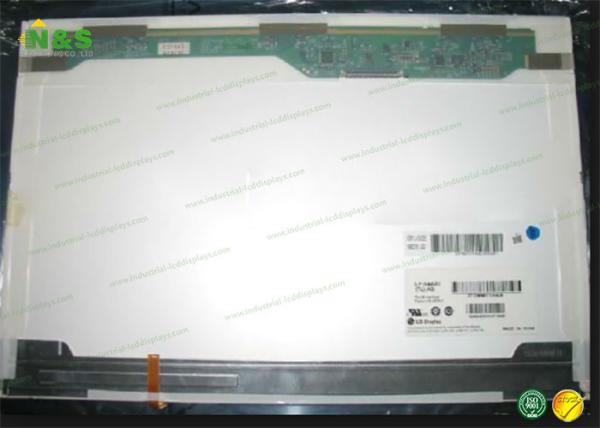

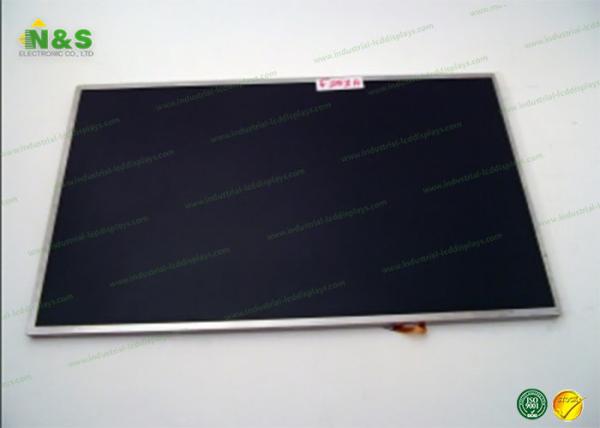

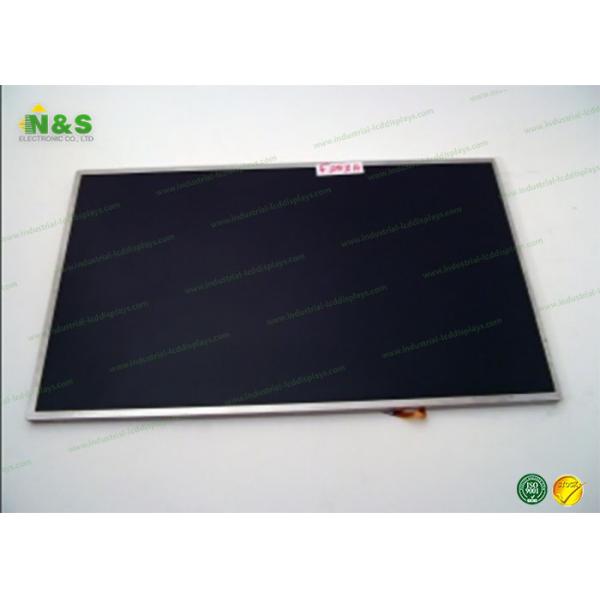

1280*800 and 15.4 inch LG LCD Panel LP154WX7-TLP2 without touch TN, Normally White, Transmissive
1280*800 and 15.4 inch LG LCD Panel LP154WX7-TLP2 without touch TN, Normally White, Transmissive
1280*800 and 15.4 inch LG LCD Panel LP154WX7-TLP2 without touch TN, Normally White, Transmissive
1280*800 and 15.4 inch LG LCD Panel LP154WX7-TLP2 without touch TN, Normally White, Transmissive
1280*800 and 15.4 inch LG LCD Panel LP154WX7-TLP2 without touch TN, Normally White, Transmissive
1280*800 and 15.4 inch LG LCD Panel LP154WX7-TLP2 without touch TN, Normally White, Transmissive
Specifications
Brand Name :
LG LCD Panel
Model Number :
LP154WX7-TLP2
Certification :
ISO9001
Place of Origin :
Japan/Taiwan
MOQ :
1 piece
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
1000 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :

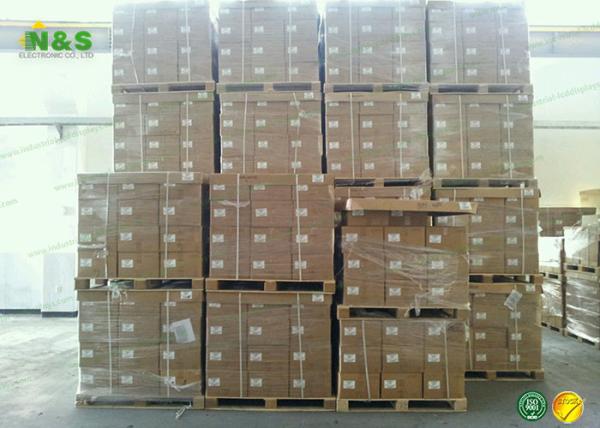

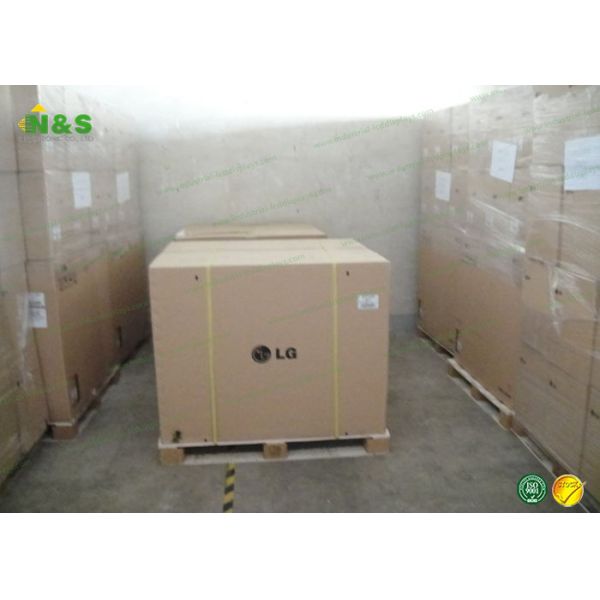

Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Contrast Ratio :
500:1 (Typ.)
Brightness :
220 cd/m² (Typ.)
Panel Size :
15.4 inch
Aspect Ratio :
16:10 (H:V)
Panel Brand :
LG Display
Resolution :
1280(RGB)×800 , WXGA
Description

1280*800 and 15.4 inch LG LCD Panel LP154WX7-TLP2 without touch TN, Normally White, Transmissive

Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.43 (Typ.)(5/13 points)

General Features

Panel Brand : LG Display
Panel Model : LP154WX7-TLP2
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.4 inch
Resolution : 1280(RGB)×800 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 331.2×207 mm
Outline : 344×222×6.5 mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Surface : Antiglare
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 7S6P WLED Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 30 pins
Input Voltage : 3.3V (Typ.)

LG Display LP154WX7-TLP2 Mechanical Features

Panel Size : 15.4 inch
Dot Resolution : 1280(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 98 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.08625×0.25875 mm (H×V)
Pixel Pitch : 0.25875×0.25875 mm (H×V)
Weight : 570g (Max.)
Surface : Antiglare
Active Area : 331.2×207 mm (H×V)
Bezel Area : 335.0×210.7 mm (H×V)
Outline Dimension : 344×222 mm (H×V)
Outline Depth : 6.5 (Max.) mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets : Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Specifications

Laptop screen distributor laptop screen:

1. Plenty real stock
2. Professional QC
3. Property packing
4. New A+ grade LCD Panels.

5. One year warranty

6. Wholesale price.

After-sale service:

1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LB060S01-FD01 LG Display 6.0" 800×600
LD470DUJ-SFE2 LG Display 47" 1920×1080
LC650EQK-FGK1 LG Display 65" 3840×2160
LH470M01-SH01 LG Display 4.7" 540×960
LH250Q01-TH03 LG Display 2.5" 320×240
LH320H02-SH03 LG Display 3.2" 320×480

Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us..

Different payment term in different country; our company reserve the right of final explanation.
Please contact us for more information. Thank you.
