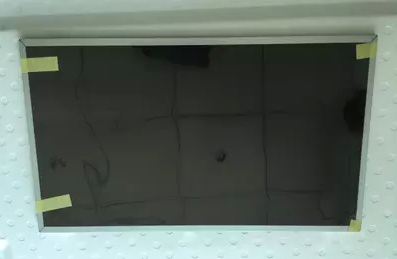

1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
Specifications
Brand Name :
Samsung LCD Panel
Model Number :
LTM215HL01
Certification :
ISO9001
Place of Origin :
Japan/Taiwan
MOQ :
1 piece
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
3000 PCS PER DAY
Delivery Time :
1-3 Working Days

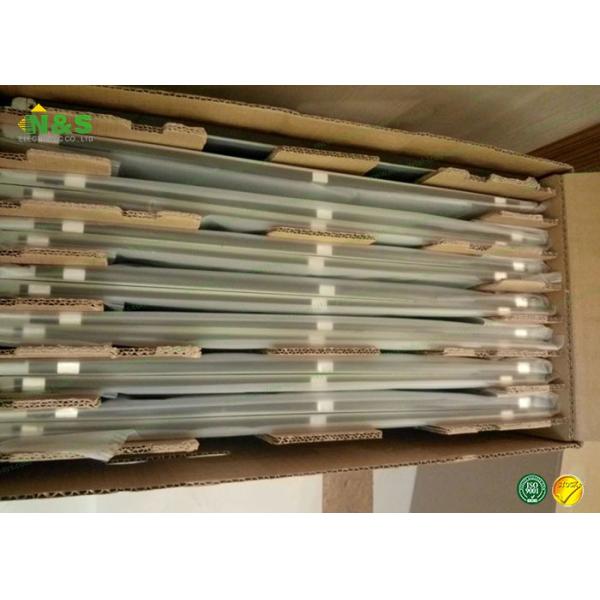

Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Size :
21.5 inch
Outline :
497.6×292.2×11 mm
Resolution :
1920(RGB)×1080 , FHD
Pixel Density :
102 PPI
Aspect Ratio :
16:9 (H:V)
Touch Panel :
Without
Surface :
Antiglare (Haze 25%), Hard coating (3H)
Pixel Configuration :
RGB Vertical Stripe
Description

1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive

Sample Charge:

1. Samples charge: According to the LCD panel model. Pls contact us to get details.
2. Samples time: 1-3 working days for stock models.

SAMSUNG LTM215HL01 General Features

Panel Brand : SAMSUNG
Panel Model : LTM215HL01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 21.5 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : PLS, Normally Black, Transmissive
Active Area : 476.064×267.786 mm
Outline : 497.6×292.2×11 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 14 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 16S2P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

SAMSUNG LTM215HL01 Mechanical Features

Panel Size : 21.5 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 102 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.08265×0.24795 mm (H×V)
Pixel Pitch : 0.24795×0.24795 mm (H×V)
Weight : 2.10Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 476.064×267.786 mm (H×V)
Bezel Area : 479.8×271.3 mm (H×V)
Outline Dimension : 497.6×292.2 mm (H×V)
Outline Depth : 11.0 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

SAMSUNG LTM215HL01 Optical Features

Display Mode : PLS, Normally Black, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 14 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.43 (Typ./Max.)(9 points)

SAMSUNG LTM215HL01 Backlight System

Lamp Position : Edge light type (Right side)
Lamp Type : WLED
Lamp Amount : 16S2P
Lamp Shape : 2 strings
Lamp Life Time : 40K(Min.) (Hours)
Lamp Voltage : 48.2/53.0V (Typ./Max.)
Lamp Current : 210/230mA (Typ./Max.)
Lamps Power Consumption : 10.12W (Typ.)
Interface Type : Connector

Why Choose Us?

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in international trade for the LCD display sourcing.

6. Fabulous after-sale service.

7. The brand we could hand for the LCD Panel contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other industrial LCD Screen.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS549HQ02 Samsung 5.5" 720×1280
AMS520BQ12-0 Samsung 5.2" 1080×1920
AMS497DX12-0 Samsung 5.0" 720×1280
AMS163AN01 Samsung 1.63" 320×320
AMS510CV02 Samsung 5.1" 1080×1920
AMS510CV01 Samsung 5.1" 1080×1920
AMS302AK03 Samsung 3.0" 720×480
AMS353FD01-0 Samsung 3.5" 480×800
AMS499QP89-0 Samsung 5.0" 1080×1920
AMS529BY03 Samsung 5.3" 1080×1920
SDC 1.63 320×320 Samsung 1.63" 320×320
AMS499QP42-0 Samsung 5.0" 1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
