1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
Specifications
Brand Name :
Samsung LCD Panel
Model Number :
LTM190EX-L31
Certification :
ISO9001
Place of Origin :
Japan/Taiwan
MOQ :
1 piece
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
3000 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :

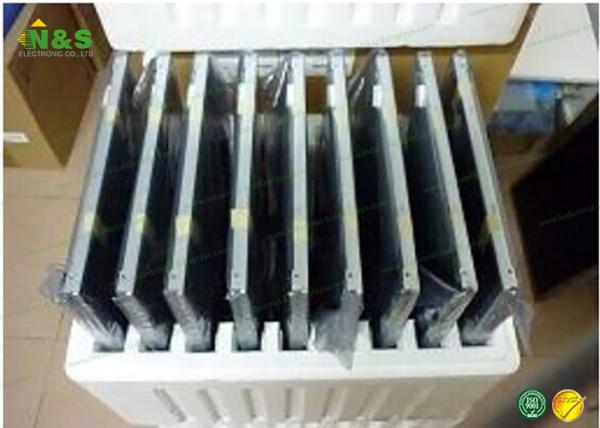

Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
SAMSUNG
Size :
19.0 inch
Outline :
396×324×17 mm
Resolution :
1280(RGB)×1024 (SXGA)
Pixel Density :
86 PPI
Aspect Ratio :
5:4 (H:V)
Touch Panel :
Without
Outline Depth :
17.0 (Max.) mm
Surface :
Antiglare (Haze 25%), Hard coating (3H)
Pixel Configuration :
RGB Vertical Stripe
Description

1280*1024 LTM190EX- L31 Samsung LCD Panel , Flat Rectangle samsung lcd display

Basic Info:

Panel Brand : SAMSUNG
Panel Model : LTM190EX-L31
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 376.32×301.056 mm
Outline : 396×324×17 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M , CIE1931 72%
Response Time : 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

Mechanical Features

Panel Size : 19.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 86 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.098×0.294 mm (H×V)
Pixel Pitch : 0.294×0.294 mm (H×V)
Weight : 2.25Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 376.32×301.056 mm (H×V)
Bezel Area : 380.2×305.0 mm (H×V)
Outline Dimension : 396×324 mm (H×V)
Outline Depth : 17.0 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M ()
Color Gamut : 72% NTSC (CIE1931)
Response Time : 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)

SAMSUNG LTM190EX-L31 Backlight System

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 4 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Min.) (Hours)
Lamp Voltage : 650V (Typ.)
Lamp Current : 3.0/7.5/8.0mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/60KHz (Min./Max.)
Lamp Startup Voltage : 1450/1650V (Max.)(Ta=+25/0℃)
Interface Type : Connector

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMS549HQ02 Samsung 5.5" 720×1280
AMS520BQ12-0 Samsung 5.2" 1080×1920
AMS497DX12-0 Samsung 5.0" 720×1280
AMS163AN01 Samsung 1.63" 320×320
AMS510CV02 Samsung 5.1" 1080×1920
AMS510CV01 Samsung 5.1" 1080×1920
AMS302AK03 Samsung 3.0" 720×480
AMS353FD01-0 Samsung 3.5" 480×800

Sample Charge:
1. Samples charge: According to the LCD panel model. Pls contact us to get details.
2. Samples time: 1-3 working days for stock models.

Our services:

We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
8. Solve all the problems after we got complaints from dear customers, no excuse! Because your problem, is ours.
9. Technical support. We have being already made these LCD Screen Panels for about 6 years in the international trade. Our product contained but not limited to Medical LCD display, Aerospace LCD screen, Gaming LCD Panels, Military LCD panels, Kiosk LCD display, Transportation LCD panels, Industrial LCD panels and more.

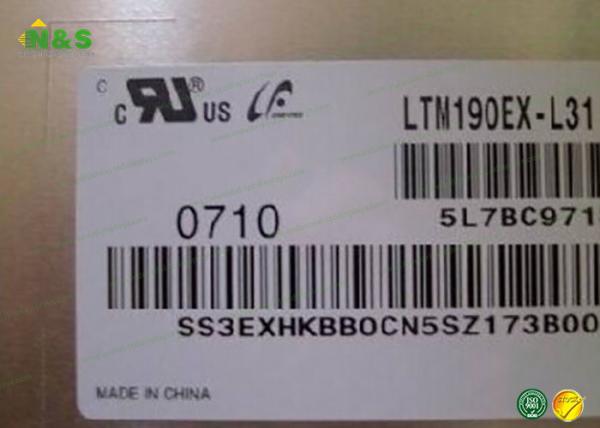

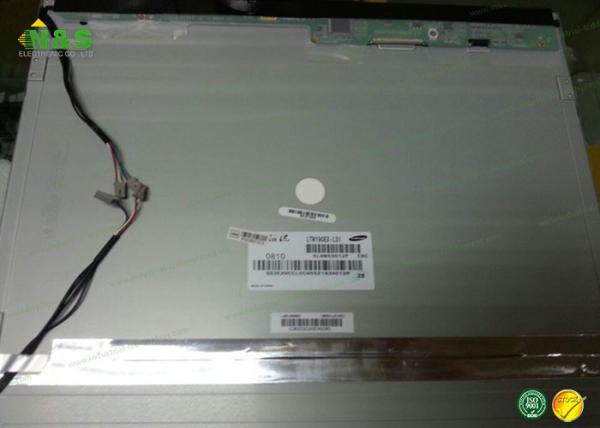

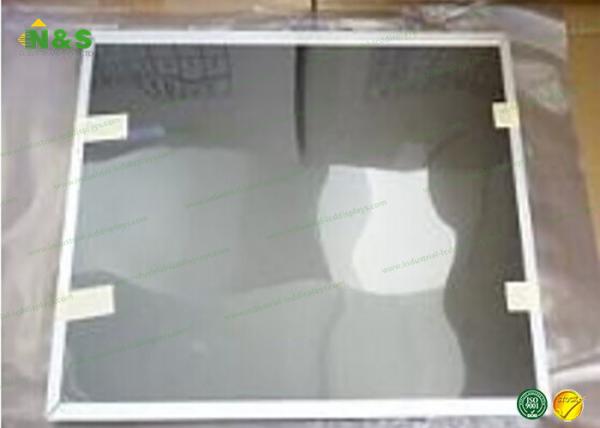

Details Pictures


1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display1280*1024 LTM190EX- L31 Samsung LCD Panel / Flat Rectangle samsung lcd display
