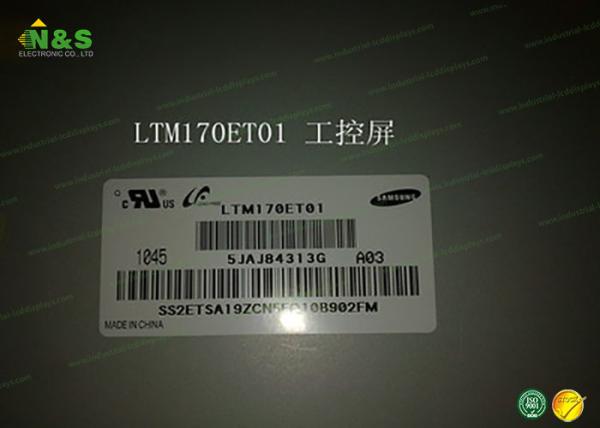

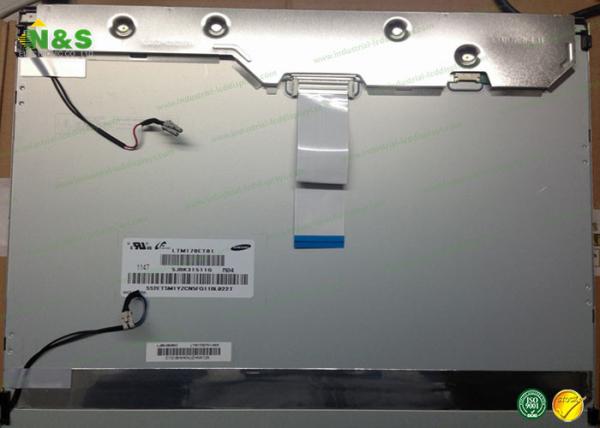

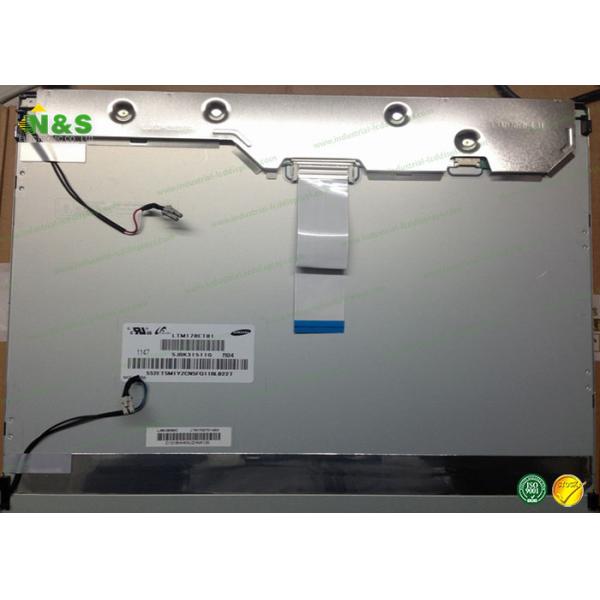

High brightness 1280*1024 Samsung LCD Panel LTM170ET01 with 17.0 inch

Advantages of N&S For the TFT LCD Screen:

Wholesale Price: We are the agency & professional sourcing buyer for the various branded LCD screens.
Fast delivery: We own the stock for the EOL & hard-to-find LCD screen replacements.
High Quality: Each LCD Screen will be tested pcs by pcs before shipments.
Good service: Professional international trade sales team & LCD panels testing team for 6 years.
One year international warranty.

Product details:

Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 2.00Kgs (Max.)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.6×274.0 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 17.0±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Min.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 5 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)

SAMSUNG LTM170ET01 Backlight System

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Min.) (Hours)
Lamp Voltage : 580V (Typ.)
Lamp Current : 3.0/8.0/8.5mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/60KHz (Min./Max.)
Lamp Startup Voltage : 1320/1500V (Max.)(Ta=+25/0℃)
Interface Type : Connector

Delivery Information:

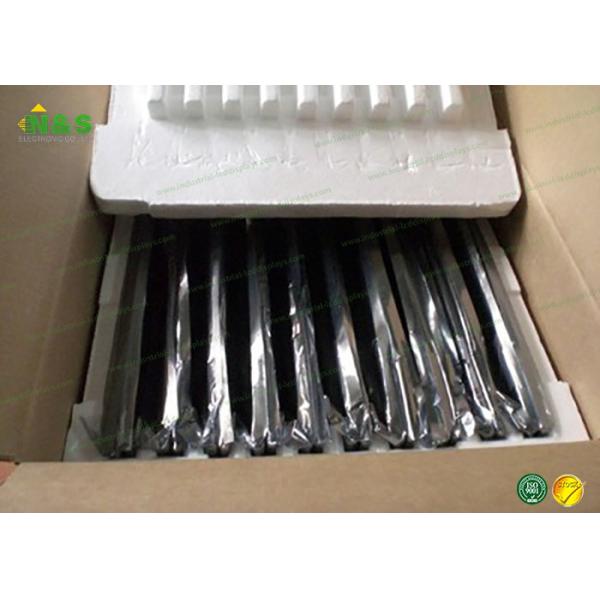

Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate

Why Choose our company?

• Our LCD module can ensure quantity of sale especial for the Hard-to-find LCD screen replacements.
• Reliability test and full examination to ensure the high quality of the display.
• Strictly ISO9001 quality management system.
• Mature and Professional after-sale service.
• Various cooperation experience with big brands, such as AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other TFT LCD Display brands.

Below are our other LCD panels stock for your easy reference:

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
