5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application
5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application
5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application
5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application
Specifications
Brand Name :
Kyocera
Model Number :
KCS057QV1AA-G03
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Display Mode :
STN, Normally Black, Transmissive
Active Area :
115.18×86.38 mm
Outline :
154.6×114.8×9 mm
Surface :
Glare (Haze 0%)
Response Time :
220/110 (Typ.)(Tr/Td)
Viewing Angle :
50/50/30/30 (Typ.)(CR≥2) (L/R/U/D)
Frequency :
75Hz
Lamp Type :
1 pcs CCFL
Description

5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application

Company Strength:

1. ISO9001 certificated, Factory Direct Supplied

2. RoHS Compliant, Lead Free, Reach Compliant

3. Competitive Price and Short Lead-time

4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

5. Small MOQ Support & Fast Response to Customers

6. Long Product Life Time

Kyocera KCS057QV1AA-G03 General Features

Panel Brand : Kyocera
Panel Model : KCS057QV1AA-G03
Panel Type : CSTN-LCD , Panel
Panel Size : 5.7 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : STN, Normally Black, Transmissive
Active Area : 115.18×86.38 mm
Outline : 154.6×114.8×9 mm
Surface : Glare (Haze 0%)
Brightness : 110 cd/m² (Typ.)
Contrast Ratio : 25:1 (Typ.)
Display Colors : Color
Response Time : 220/110 (Typ.)(Tr/Td)
Viewing Angle : 50/50/30/30 (Typ.)(CR≥2) (L/R/U/D)
Frequency : 75Hz
Lamp Type : 1 pcs CCFL
Signal Interface : Parallel Data (8-bit) , 15 pins
Input Voltage : 5.0V (Typ.)

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

Kyocera KCS057QV1AA-G03 Mechanical Features

Panel Size : 5.7 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 70 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.120×0.360 mm (H×V)
Pixel Pitch : 0.360×0.360 mm (H×V)
Weight : 200g (Typ.)
Surface : Glare (Haze 0%)
Active Area : 115.18×86.38 mm (H×V)
Bezel Area : 120.2×91.4 mm (H×V)
Outline Dimension : 154.6×114.8 mm (H×V)
Outline Depth : 8.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
KCS072VG1MJ-G40 Kyocera 7.2" 640×480
KCS6448MSTT-X1 Kyocera 7.2" 640×480
F-51430NFU-FW-AEN Kyocera 9.4" 640×480
F-51430NFU-FW-AA Kyocera 9.4" 640×480
KCL6448HSTT-X14 Kyocera 9.4" 640×480
KCL6448HSTT-X12 Kyocera 9.4" 640×480
KCS057QV1BM-G20 Kyocera 5.7" 320×240
KCG047QV1AA-G02 Kyocera 4.7" 320×240
KCG057QV1DB-G56 Kyocera 5.7" 320×240
KCB104VG2CG-G20 Kyocera 10.4" 640×480
KS3224ASTT-FW-X13 Kyocera 5.7" 320×240
KG057QV1DB-G00 Kyocera 5.7" 320×240
KCS6448BSTT-X1 Kyocera 10.4" 640×480
KCS6448BSTT-X4 Kyocera 10.4" 640×480
KCS6448BSTT-X12 Kyocera 10.4" 640×480

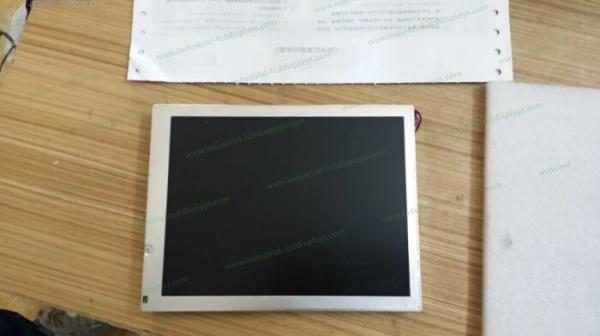

Details Pictures for KCS057QV1AA-G03 Industrial LCD

5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application
