202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
Specifications
Brand Name :
PVI
Model Number :
ED097OC4
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
1200×825
Active Area :
202.8×139.425 mm
Outline :
218.8×156.425 mm
Surface :
Antiglare, Hard coating
Display Colors :
Grayscale (4-bit)
Frequency :
50Hz
Description


202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader

Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

PVI ED097OC4 General Features

Panel Brand : PVI
Panel Model : ED097OC4
Panel Type : EPD , EPD
Panel Size : 9.7 inch
Resolution : 1200×825
Active Area : 202.8×139.425 mm
Outline : 218.8×156.425 mm
Surface : Antiglare, Hard coating
Contrast Ratio : 12:1 (Typ.)(Reflective)
Display Colors : Grayscale (4-bit)
Frequency : 50Hz
Signal Interface : Parallel Data (1ch, 8-bit) , 33 pins

PVI ED097OC4 Mechanical Features

Panel Size : 9.7 inch
Dot Resolution : 1200×825
Pixel Configuration : Rectangle
Pixel Density : 150 PPI
Aspect Ratio : 7:5 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.169×0.169 mm (H×V)
Pixel Pitch : 0.169×0.169 mm (H×V)
Weight : 80±5g
Surface : Antiglare, Hard coating
Active Area : 202.8×139.425 mm (H×V)
Outline Dimension : 218.8×156.425 mm (H×V)
Outline Depth : 1.18 (Typ.) mm
Landscape or Portrait : Landscape / Portrait


Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
E1190CS021 PDI 1.9" 144×128
E1260CS021 PDI 2.6" 232×128
E1271CS021 PDI 2.7" 264×176
E1144CS021 PDI 1.44" 128×96

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

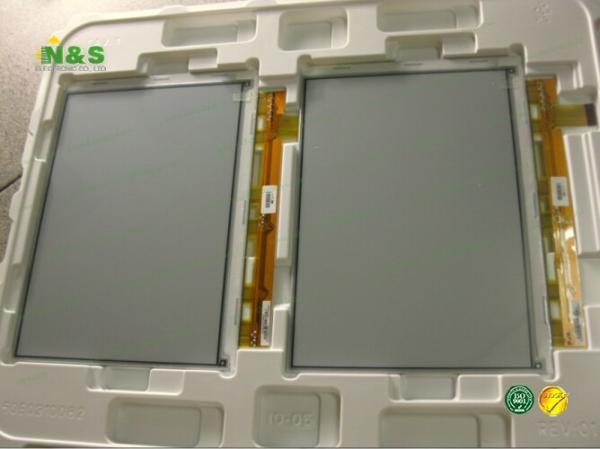

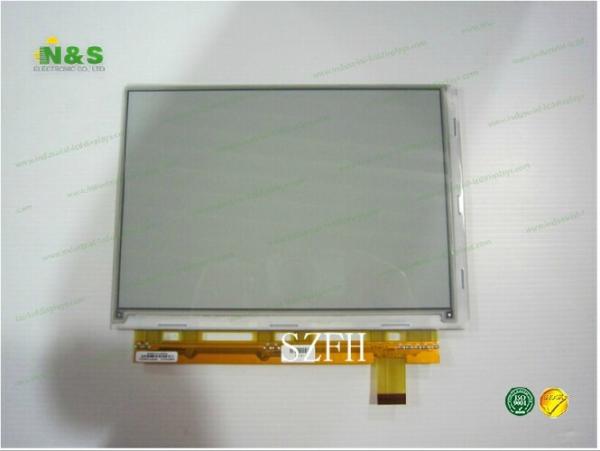

Details Pictures for ED097OC4 LCD Screen Replacements

202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader


202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
