TM050RBH01 5.0 inch small color lcd display 108×64.8 mm Active Area
TM050RBH01 5.0 inch small color lcd display 108×64.8 mm Active Area
Specifications
Brand Name :
Tianma LCD Displays
Model Number :
TM050RBH01
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Active Area :
108×64.8 mm
Outline :
120.7×75.8×6.3 mm
Surface :
Antiglare
Brightness :
300 cd/m² (Typ.)
Viewing Angle :
70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency :
60Hz
Lamp Type :
6S3P WLED
Signal Interface :
Parallel RGB (1 ch, 8-bit) , 45 pins
Description

TM050RBH01 5.0 inch small color lcd display 108×64.8 mm Active Area

Production Machinery

Panel Brand : TIANMA
Panel Model : TM050RBH01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 5.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 108×64.8 mm
Outline : 120.7×75.8×6.3 mm
Surface : Antiglare
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 450:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6S3P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 45 pins
Input Voltage : 3.3V (Typ.)

TIANMA TM050RBH01 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 450 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.320; Wy:0.340
White Variation : 1.25/1.33 (Typ./Max.)(9 points)

FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience inindustrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TM050JYSP01 Tianma 5.0" 720×1280
TL055VGXP01 Tianma 5.5" 1080×1920
TM045YYHP08 Tianma 4.5" 480×854
TL050JGXP01 Tianma 5.0" 720×1280
TM050JYHP05 Tianma 5.0" 720×1280
TM060XYSP01 Tianma 6.0" 540×960
TM046XYHP02 Tianma 4.7" 540×960
TL047JYXP01-00 Tianma 4.7" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

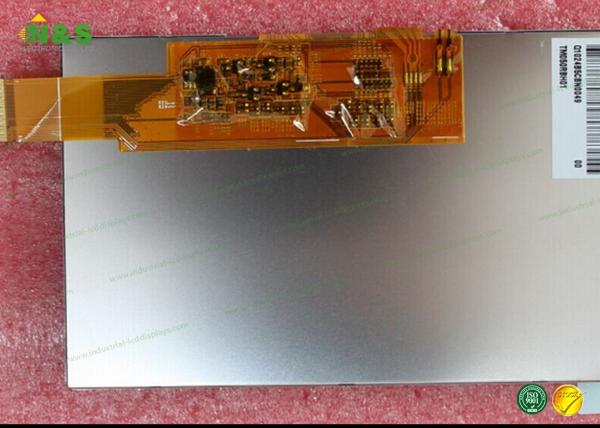

Details Pictures for Tianma LCD Displays TM050RBH01

TM050RBH01 5.0 inch small color lcd display 108×64.8 mm Active Area
