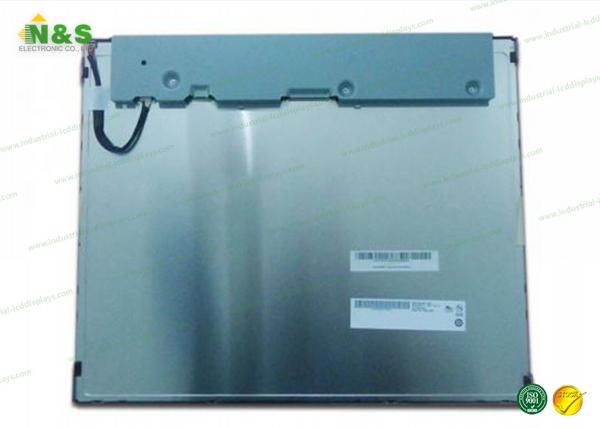

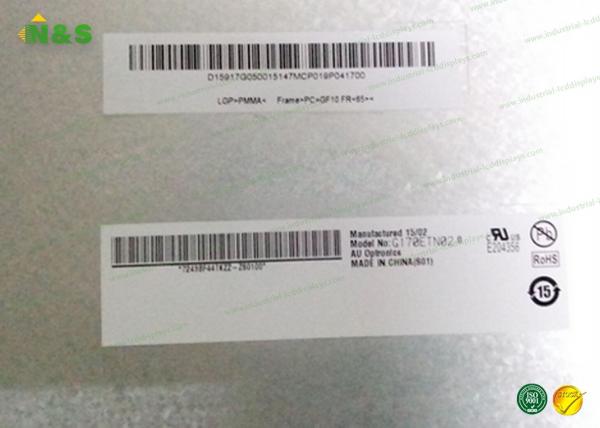

AUO G170ETN02.0 17 inch wide temperature industrial original screen
AUO G170ETN02.0 17 inch wide temperature industrial original screen
AUO G170ETN02.0 17 inch wide temperature industrial original screen
AUO G170ETN02.0 17 inch wide temperature industrial original screen
AUO G170ETN02.0 17 inch wide temperature industrial original screen
AUO G170ETN02.0 17 inch wide temperature industrial original screen
AUO G170ETN02.0 17 inch wide temperature industrial original screen
AUO G170ETN02.0 17 inch wide temperature industrial original screen
Specifications
Brand Name :
AUO LCD Panel
Model Number :
G170ETN02.0
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Viewing Angle :
80/80/60/70 (Typ.)(CR≥10) (L/R/U/D)
Color Gamut :
90% NTSC (CIE1931)
White Variation :
1.25/1.33 (Typ./Max.)(9 points)
Landscape or Portrait :
Landscape type
Outline Depth :
12.45 (Typ.) mm
Active Area :
337.92×270.336 mm (H×V)
Operating Temperature :
-30 ~ 85 °C
Pixel Density :
96 PPI
Description

AUO G170ETN02.0 17 inch wide temperature industrial original screen

Quick Details

Model: G170ETN02.0 Brand Name: AUO
Type: TFT Size 17.0 inch
Resolution: 1280(RGB)x1024, SVGA Display mode: TN,Normally White,Transmissive
Outline 358.5x296.5mm Brightness: 400 cd/㎡(Typ.)
backlight: WLED Signal Category : LVDS(2 ch, 8-bit)

Product Specifications

  • Brand Name : AUO
  • Type : TFT

Specification:
Screen Size: 17 inch
Resolution: 1280(RGB)x1024,SVGA
Luminance: 400 cd/m²
Contrast Ratio: 800: 1(Typ. )(Transmissive)
Active Area: 337.92×270.336 mm
Viewing Angle: 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D)
Operation Temperature(° C): -30 ~ 85 °C
Storage Temperature(° C): -30 ~ 85 °C
Lamp Position : Edge light type (Top side)

Lamp Life Time : 50K(Typ.) (Hours)

Interface Type : Connector

Signal Category : LVDS

Input Voltage for Panel : 5.0V (Typ.)

Input Current for Panel : 1.05/1.16A (Typ./Max.)
Panel Power Consumption : 5.25/5.8W (Typ./Max.)

Primary Competitive Advantages:

  1. Brand-name Parts
  2. Country of Origin
  3. Guarantee/Warranty
  4. International Approvals
  5. Packaging
  6. Price
  7. Product Features
  8. Product Performance
  9. Quality Approvals
  10. Reputation
  11. Service
  12. Small Orders Accepted

Our Advantages

  • 1. We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 2. 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • 3. Welcome small, medium & big quantity orders.
  • 4. 100% QC Inspection before Shipment.
  • 5. After-sales-service With 12 Months Warranty for our LCD panels.

Product Details for AUO G170ETN02.0

AUO G170ETN02.0 17 inch wide temperature industrial original screen

AUO G170ETN02.0 17 inch wide temperature industrial original screen

AUO G170ETN02.0 17 inch wide temperature industrial original screen
