Normally White LQ110Y1LG12 SHARP 11.0 inch with 238.8×143.28 mm
Normally White LQ110Y1LG12 SHARP 11.0 inch with 238.8×143.28 mm
Specifications
Brand Name :
SHARP
Model Number :
LQ110Y1LG12
Certification :
iso9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3WORK DAY
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
11.0 inch
Resolution :
800(RGB)×480 , WVGA
Display Mode :
TN, Normally White, Transmissive
Description

Normally White LQ110Y1LG12 SHARP 11.0 inch with 238.8×143.28 mm

LQ110Y1LG12 Specification

Panel Size : 11.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0995×0.2985 mm (H×V)
Pixel Pitch : 0.2985×0.2985 mm (H×V)
Weight : 420g (Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 238.8×143.28 mm (H×V)
Bezel Area : 241.2×146.9 mm (H×V)
Outline Dimension : 257×164.5 mm (H×V)
Outline Depth : 9.4 (Typ.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 330 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Color Gamut : 70% NTSC (CIE1931)
Response Time : 23.0 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.300; Wy:0.315
White Variation : 1.33 (Max.)(5 points)
Sunlight Readable : N

Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160

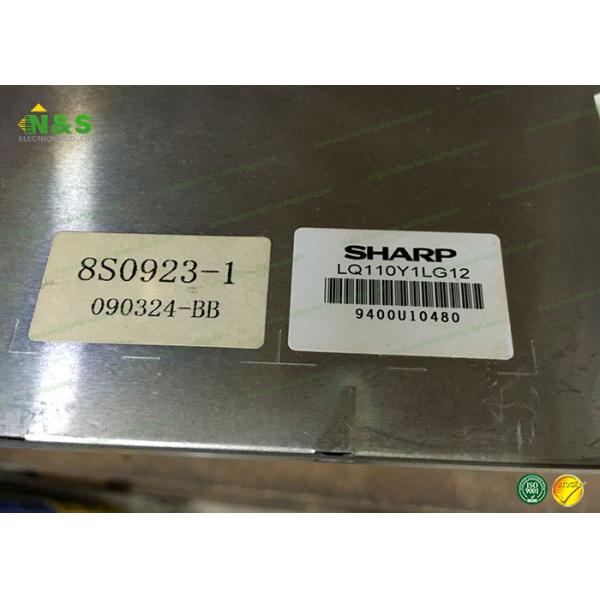

LQ110Y1LG12 Picture

Normally White LQ110Y1LG12 SHARP 11.0 inch with 238.8×143.28 mm
