ZJ080NA -08A 8.0 inch Chimei LCD Panel , 40 Pins Medical Lcd Display Frequency 60Hz
ZJ080NA -08A 8.0 inch Chimei LCD Panel , 40 Pins Medical Lcd Display Frequency 60Hz
ZJ080NA -08A 8.0 inch Chimei LCD Panel , 40 Pins Medical Lcd Display Frequency 60Hz
ZJ080NA -08A 8.0 inch Chimei LCD Panel , 40 Pins Medical Lcd Display Frequency 60Hz
Specifications
Brand Name :
Chimei LCD Panel
Model Number :
ZJ080NA-08A
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
8.0 inch
Active Area :
176.64×99.36 mm
Outline :
192.8×116.9×6.7 mm
Contrast Ratio :
700:1 (Typ.)
Display Colors :
16.7M (8-bit) , CIE1931 70%
Response Time :
10/20 (Typ.)(Tr/Td)
Frequency :
60Hz
Description

Chimei LCD Panel ZJ080NA-08A 8.0 inch 176.64×99.36 mm Active Area 192.8×116.9×6.7 mm Outline

Packing & Delivery for our LCD Screen Panel Replacements:

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

CHIMEI INNOLUX ZJ080NA-08A General Features

Panel Brand : CHIMEI INNOLUX
Panel Model : ZJ080NA-08A
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 8.0 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 176.64×99.36 mm
Outline : 192.8×116.9×6.7 mm
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 70%
Response Time : 10/20 (Typ.)(Tr/Td)
Viewing Angle : 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL)

Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options.

• All steel construction provides rugged frame for public use environments

• Two independent touch points

• Improved power efficiency and reduced consumption

• ISO9001 approvals.

CHIMEI INNOLUX ZJ080NA-08A Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 70% NTSC (CIE1931)
Response Time : 10/20 (Typ.)(Tr/Td)
Viewing Angle : 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

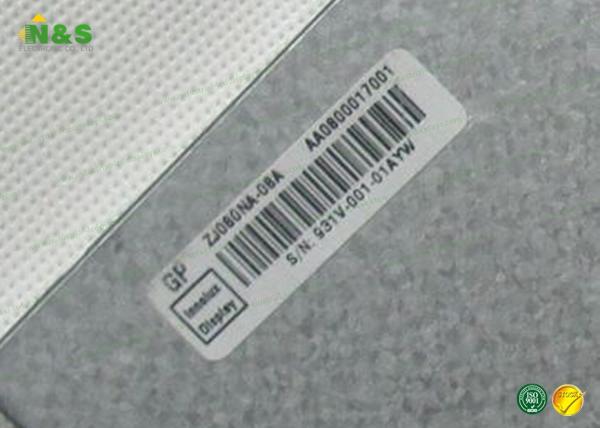

Details Pictures for Chimei LCD Panel ZJ080NA-08A

ZJ080NA -08A 8.0 inch Chimei LCD Panel , 40 Pins Medical Lcd Display Frequency 60Hz

ZJ080NA -08A 8.0 inch Chimei LCD Panel , 40 Pins Medical Lcd Display Frequency 60Hz
