Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline
Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline
Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline
Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
ZJ050NA-08C
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
5.0 inch
Resolution :
640(RGB)×480 , VGA
Outline :
117.65×88.43×5.9 mm
Surface :
Antiglare
Brightness :
250 cd/m² (Typ.)
Frequency :
60Hz
Lamp Type :
WLED
Description

Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline

INNOLUX ZJ050NA-08C General Features

Panel Brand :INNOLUX
Panel Model :ZJ050NA-08C
Panel Type :a-Si TFT-LCD , Panel
Panel Size :5.0 inch
Resolution :640(RGB)×480 , VGA
Display Mode :TN, Normally White, Transmissive
Active Area :101.57×76.18 mm
Outline :117.65×88.43×5.9 mm
Surface :Antiglare
Brightness :250 cd/m² (Typ.)
Contrast Ratio :500:1 (Typ.)
Display Colors :16.7M (8-bit) , CIE1931 50%
Response Time :10/15 (Typ.)(Tr/Td)
Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :WLED
Signal Interface :Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage :3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)


INNOLUX ZJ050NA-08C Mechanical Features

Panel Size :5.0 inch
Dot Resolution :640(RGB)×480 (VGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :160 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.053×0.159 mm (H×V)
Pixel Pitch :0.159×0.159 mm (H×V)
Weight :TBD
Surface :Antiglare
Active Area :101.57×76.18 mm (H×V)
Outline Dimension :117.65×88.43 mm (H×V)
Outline Depth :5.7±0.2 mm
Landscape or Portrait :Landscape type
Touch Panel :Without


Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
V850DK1-QS1 Rev.C8Innolux85"3840×2160
V850DK1-QS1 Rev.C2Innolux85"3840×2160
V650DJ4-QS5 Rev.M1Innolux65"3840×2160
N080ICP-G01 CELLInnolux8.0"800×1280
DE080NA-01DInnolux8.0"800×480
AT080YN01Innolux8.0"1024×600
PG055IA-03HInnolux5.5"720×1280
PP057IC-01AInnolux5.7"1080×1920


Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

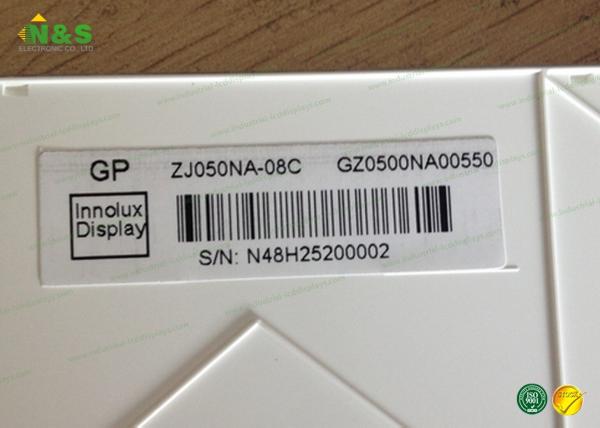

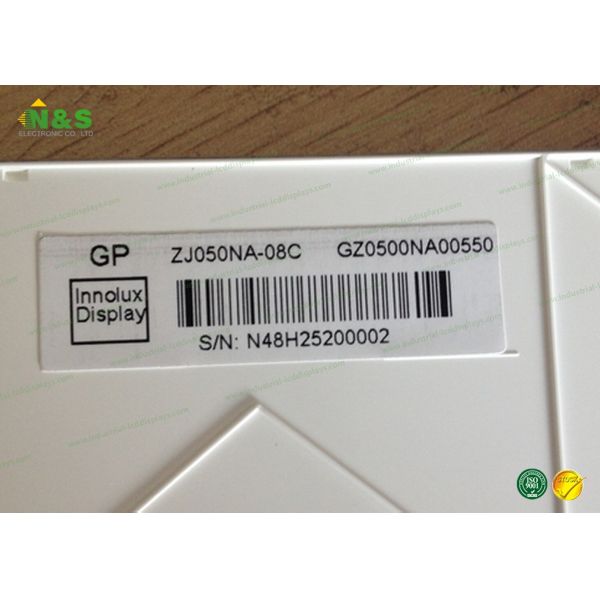

Details Pictures for Innolux LCD Panel ZJ050NA-08C

Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline

Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline
