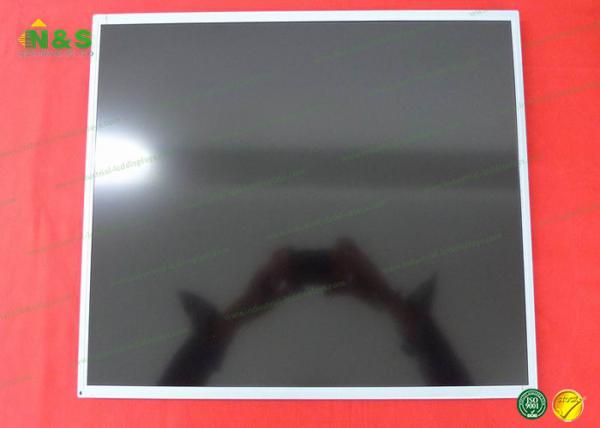

high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²
Specifications
Brand Name :
AUO LCD Panel
Model Number :
M190EG01 V2
Certification :
ISO9001
Place of Origin :
Japan/Taiwan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Display Mode :
MVA, Normally Black, Transmissive
Resolution :
1280(RGB)×1024 (SXGA)
Aspect Ratio :
5:4 (H:V)
Weight :
2.50/2.70Kgs (Typ./Max.)
Outline Depth :
14.33/17.53 (Typ./Max.) mm
Surface :
Antiglare, Hard coating (3H)
Signal Interface :
LVDS (2 ch, 8-bit) , 30 pins
Input Voltage :
5.0V (Typ.)
Description

Wholesale and high resolution 1280*1024 AUO LCD Panel M190EG01 V2 with 19.0 inch, 300 cd/m²

Advantages of N&S For the TFT LCD Screen:

  1. Wholesale Price: We are the agency & professional sourcing buyer for the various branded LCD screens.
  2. Fast delivery: We own the stock for the EOL & hard-to-find LCD screen replacements.
  3. High Quality: Each LCD Screen will be tested pcs by pcs before shipments.
  4. Good service: Professional international trade sales team & LCD panels testing team for 6 years.
  5. One year international warranty.

AUO M190EG01 V2 General Features

Panel Brand : AUO
Panel Model : M190EG01 V2
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : MVA, Normally Black, Transmissive
Active Area : 376.32×301.056 mm
Outline : 396×324×17.53 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 2000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC)
Response Time : 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

19.0", 1280×1024, 8-bit, LVDS, 2D, CCFL, Flat, Panel Hot Model

Panel Model Size Type Resolution cd/m2 C/R Backlight Color
M190EG01 V2 19.0" Panel 1280×1024 300 2000:01:00 CCFL 16.7M
LM190E05-SL02 19.0" Panel 1280×1024 280 600:01:00 CCFL 16.7M
M190EG01 V3 19.0" Panel 1280×1024 300 2000:01:00 CCFL 16.7M
LM190E05-SL03 19.0" Panel 1280×1024 230 800:01:00 CCFL 16.7M
HSD190MEN3-A00 19.0" Panel 1280×1024 300 1000:01:00 CCFL 16.7M
LTM190E4-L02 19.0" Panel 1280×1024 250 1500:01:00 CCFL 16.7M
M190EG01 V0 19.0" Panel 1280×1024 300 1300:01:00 CCFL 16.7M
LTM190E1-L03 19.0" Panel 1280×1024 250 600:01:00 CCFL 16.7M
A190EN02 V0 19.0" Panel 1280×1024 350 1000:01:00 CCFL 16.7M
HSD190MEN3-A03 19.0" Panel 1280×1024 300 1000:01:00 CCFL 16.7M


Other Features

Panel Size : 19.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 86 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.098×0.294 mm (H×V)
Pixel Pitch : 0.294×0.294 mm (H×V)
Weight : 2.50/2.70Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 376.32×301.056 mm (H×V)
Bezel Area : 380.32×305.06 mm (H×V)
Outline Dimension : 396×324 mm (H×V)
Outline Depth : 14.33/17.53 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without


Display Mode : MVA, Normally Black, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 2000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Response Time : 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)

Why choose us?

1) Products: All of our panels are 100% original and brand new, grade A+, no fake panels exists. Our products are original from AUO, LG, CMO, CPT, SAMSUNG, TOSHIBA, NEC, Hannstar, Mitsubishi and Sharp factory and so on, enjoy a good reputation among our customers in the past 6 years in our LCD panels international trade.

2) Stock: Mass stock for EOL & Hard-to-find LCD panel models with Competitive price. What is more, small order for LCD display are welcome here. .

3) Warranty: Provide 1 year of warranty, we will replace the defective LCD displays for you if it is of our party’s fault.

4) Various payment Terms: T/T, Western Union, PayPal etc.

5) Quick Delivery: As we have huge stock, orders only takes 1-3 working days after received the payment. And there are various Express supported, we also have competitive freight fee from DHL/UPS/EMS/FedEx/TNT Express companies.

6) Package: Strict package, all the products are in original package from original factory, and all the packages have labels and serial number from original factory.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
H497DAN02.1 AUO 5.0" 1080×1920
M270HVN02.3 CELL AUO 27.0" 1920×1080
M270HVN02.2 CELL AUO 27.0" 1920×1080
M270DTN01.0 CELL AUO 27.0" 2560×1440
T320HVN05.7 CELL AUO 31.5" 1920×1080
T320HVN05.4 CELL AUO 31.5" 1920×1080
T215HVN01.2 CELL AUO 21.5" 1920×1080
B070ATN02.0 CELL AUO 7.0" 600×1024
M238DAN01.3 CELL AUO 23.8" 2560×1440
B070AAN01.0 AUO 7.0" 600×1024
M238DAN01.1 CELL AUO 23.8" 2560×1440
M270DAN02.0 CELL AUO 27.0" 2560×1440

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
