CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
G150XGE-L04
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Dot Resolution :
1024(RGB)×768 (XGA)
Color Gamut :
55% NTSC (CIE1931)
Weight :
835g (Typ.)
Pixel Configuration :
RGB Vertical Stripe
Total Power Consumption :
10.8W (Typ.)
Lamp Position :
Edge light type
Operating Temperature :
-30 ~ 80 °C
Pixel Density :
85 PPI
Description

15'' CMI G150XGE-L04 Innolux LCD Panel with Wide Temperature and Viewing Angle

Quick Detail

Panel Brand : CHIMEI INNOLUX
Panel Model : G150XGE-L04
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Outline : 326.5×253.5×12 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 55%
Weight : 835g (Typ.)
Operating Temperature : -30 ~ 80 °C
Storage Temperature : -40 ~ 85 °C

CHIMEI INNOLUX G150XGE-L04 Optical&Electronics Features

Optical Features:

Display Mode : TN, Normally White, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 8/17 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.40 (Typ./Max.)(5 points)

Electronics Feature:

Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 10.8W (Typ.)

Return and Refund:

(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.

(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.

(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.

Feedback:

(1) Your early confirmation will be highly appreciated after receiving the item.

(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

1 Year warranty

1 Day shipping

0 Return

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

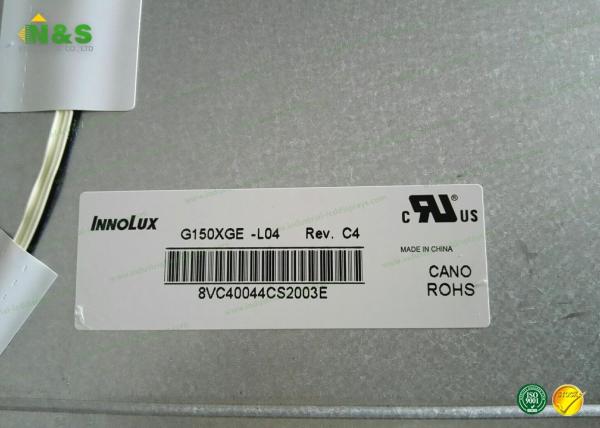

Picture Show:

CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle

CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle

CMI G150XGE-L04 low power lcd panel screen Wide Temperature and Viewing Angle
