Specifications
Brand Name :
Sharp LCD Panel
Model Number :
LQ231U1LW32
Certification :
CE
Place of Origin :
Korea
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Pixel Density :
86 PPI
Form Factor :
Flat Rectangle Display
Weight :
4.50Kgs (Max.)
Surfac :
Antiglare (Haze 40%), Hard coating
Description

470.4×352.8 mm SHARP Pixel Pitch 0.294×0.294 mm (H×V) LQ231U1LW32 23.1 inch a-Si TFT-LCD , Panel
Competitive Advantage:

1. We are a leading manufacturer of LCD products for more than 10 years.
2, We got the ISO9001 quality management system certification.
3, We have our own R&D team, and accept OEM order as per customer’s design.
4, We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5, Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6, All products win the certificate of CE,CCC,FCC and RoHS.
7, Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8, 3-years warranty is offered.

View: 18767

SHARP LQ231U1LW32 General Features:

Panel Brand :SHARP
Panel Model :LQ231U1LW32
Panel Type :a-Si TFT-LCD , Panel
Panel Size :23.1 inch
Resolution :1600(RGB)×1200 , UXGA
Display Mode :ASV, Normally Black, Transmissive
Active Area :470.4×352.8 mm
Outline :530×431.5×24.9 mm
Surface :Antiglare (Haze 40%), Hard coating (2H)
Brightness :500 cd/m² (Typ.)
Contrast Ratio :600:1 (Typ.)
Display Colors :16.7M (8-bit)
Response Time :12 (Typ.)(Tr+Td); 8 (Typ.)(G to G)
Viewing Angle :85/85/85/85 (Min.)(CR≥10) (L/R/U/D)
Lamp Type :WLED Embedded (LED Driver)
Signal Interface :OpenLDI , 31 pins
Input Voltage :5.0V (Typ.)


More Information For N&S electronic Co.,LTD:
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you can get the most competitive price for real products.
2. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory; Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.
3.Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;
4.long-term partner:
* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;
5. Super After-Sale service:
N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
6.the best TFT LCD solution:
*more tft lcd model detail information including,size, resolution, brightness, op

SHARP LQ231U1LW32 Optical Features:

Display Mode :ASV, Normally Black, Transmissive
Brightness :500 cd/m² (Typ.)
Contrast Ratio :600 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Response Time :12 (Typ.)(Tr+Td); 8 (Typ.)(G to G)
Viewing Angle :85/85/85/85 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :Wx:0.292; Wy:0.315
White Variation :1.33 (Max.)(9 Points)


Pictures for SHARP LQ231U1LW32 23.1 inch a-Si TFT-LCD , Panel :

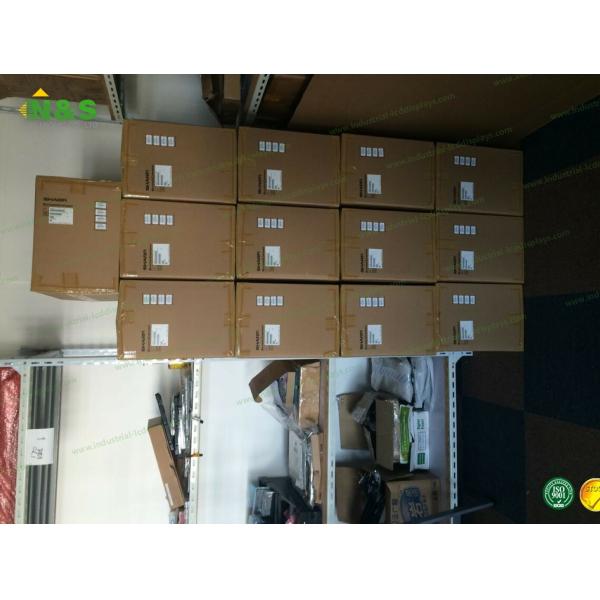

470.4×352.8 mm Pixel Pitch 23.1 inch Sharp LCD Panel 0.294×0.294 mm (H×V) LQ231U1LW32
470.4×352.8 mm Pixel Pitch 23.1 inch Sharp LCD Panel 0.294×0.294 mm (H×V) LQ231U1LW32
