Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio
Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio
Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio
Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio
Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio
Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio
Specifications
Brand Name :
CMO
Model Number :
G104V1-T03
Certification :
ISO9001
Place of Origin :
Japan,Taiwan
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
640(RGB)×480 , VGA
Panel Size :
10.4 inch
Viewing Angle :
88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Signal Interface :
CMOS/TTL (1 ch, 6-bit) , 31 pins
Input Voltage :
3.3/5.0V (Typ.)(VCC)
Contrast Ratio :
1500 : 1 (Typ.) (Transmissive)
Description

Super MVA 10.4'' CMO G104V1-T03 possess LCD High Contrast Ratio and Antiglare (Haze 25%),Hard coating (3H) Surface

CMO G104V1-T03 Mechanical Features

Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 395±50g
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 225.5×176.3 mm (H×V)
Outline Depth : 7.81/9.34 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Competitive Advantage:

1. We are a leading vendor & distributor for the LCD panels for more than 6 years.

2. We got the ISO9001 quality management system certification.

3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.

4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.

5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.

6. 1-year warranty is offered.

7. All LCD Panel will be tested before shipment.

8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

Electronics Feature&Backlight System

Vertical Frequency : 60Hz
Reverse Scan : Yes (180°)
Total Power Consumption : 8.94W (Typ.)
Time Controller (T-CON) : Embedded T-CON

Lamp Position :Edge light type (Top side)
Lamp Type : WLED
Lamp Life Time : 50K(Min.) (Hours)
Lamp Replaceable : Replaceable
Interface Type : Connector

Backlight Interface

Brand Model Pin Pitch Pins Amount
E&T 3823K-F05N-00L 1.25 mm 5 pins 1 pcs

Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 10.8/12.0/12.6V (Min./Typ./Max.)
Lamp Driver Board : 0.61A (Typ.)
Lamp Driver Board : 7.32W (Typ.)

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

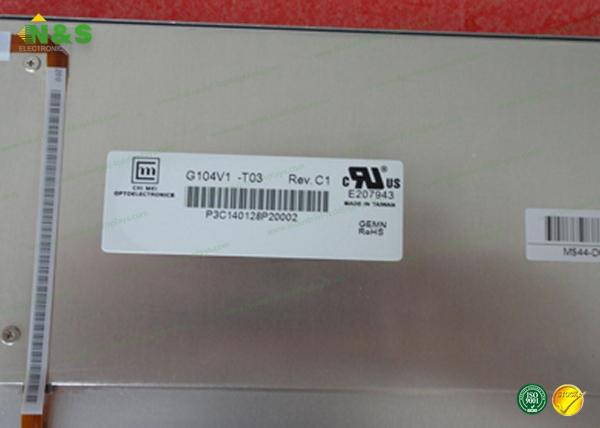

Product CMO G104V1-T03 Show

Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio

Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio

Super MVA 10.4'' Innolux LCD Panel CMO G104V1-T03 possess LCD High Contrast Ratio
