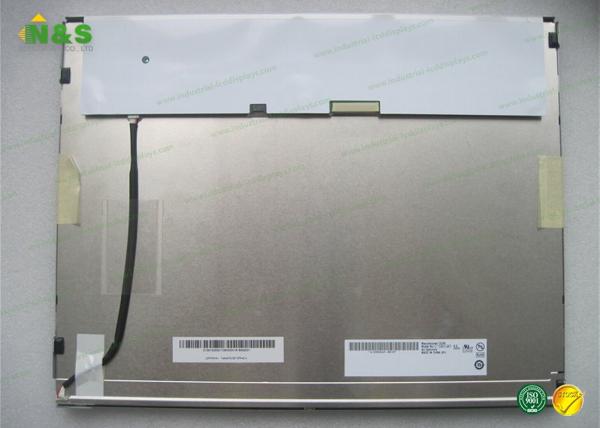

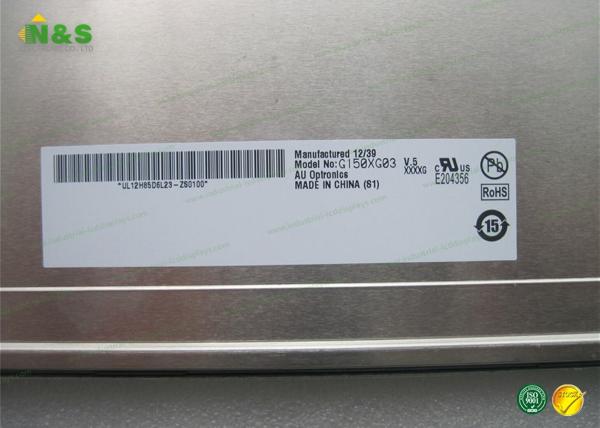

G150XG03 V5 Transmissive low power lcd display with Embedded LED Driver
G150XG03 V5 Transmissive low power lcd display with Embedded LED Driver
G150XG03 V5 Transmissive low power lcd display with Embedded LED Driver
G150XG03 V5 Transmissive low power lcd display with Embedded LED Driver
G150XG03 V5 Transmissive low power lcd display with Embedded LED Driver
G150XG03 V5 Transmissive low power lcd display with Embedded LED Driver
G150XG03 V5 Transmissive low power lcd display with Embedded LED Driver
G150XG03 V5 Transmissive low power lcd display with Embedded LED Driver
Specifications
Brand Name :
AUO LCD Panel
Model Number :
G150XG03 V5
Certification :
ISO9001
Place of Origin :
Japan,Korea,Taiwan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :

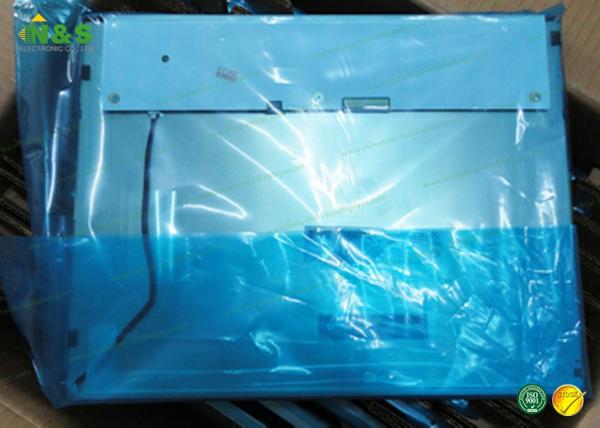

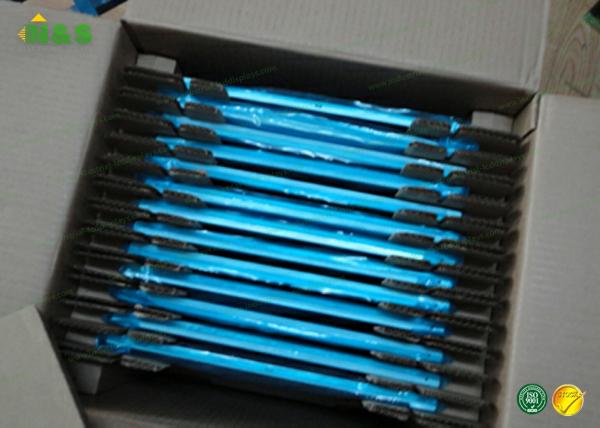

Antistatic bag, Bubble Bag, Foam Box and Carton Box
Signal Interface :
LVDS (1 ch, 6/8-bit) , 20 pins
Active Area :
304.128×228.096 mm
Panel Size :
15.0 inch
Response Time :
5.7/2.3 (Typ.)(Tr/Td)
Contrast Ratio :
700:1 (Typ.)
Resolution :
1024(2)×768(2) , XGA
Description

G150XG03 V5 Transmissive Display , AUO LCD Panel with Embedded LED Driver

G150XG03-V5 Photoelectric Parameter

Display mode TN, Normally White, Transmissive
Luminance 250 nits
Contrast Ratio 700:1 (Typ.)
Color 262K/16.2M
Color Saturation 60%NTSC(CIE1931)
Response 5.7/2.3 (Tr/Td) ms
Viewing Angle 60/80/80/80(U/D/L/R)
The Best View 6 o'clock
White Field Chroma X:0.313; Y:0.329
White Field Dynamic 1.25 (9 points)
Scanning Frequency 60Hz
Reverse Scan Yes (180°)
The kind of Singnal LVDS
Interface LVDS
Singnal Interface Definition LVDS-20P1C8B-080A
Drive-screen voltage 3.3V
Input Current 630mA
Kind of Singnal Interface Connector
Brand of Singnal Interface E&T
Model of Singnal Interface MSB240420E
Pitch of Singnal Interface 1.25 mm
Pin of Singnal Interface 5 pins

G150XG03 V5 Signal Interface

Signal Category LVDS
Signal Class LVDS (1 ch, 6/8-bit)
Input Voltage for Panel 3.3V (Typ.)
Input Current for Panel 630mA (Typ.)
Panel Power Consumption 2.08/2.27W (Typ./Max.)
Interface Type Connector
Signal Interface Brand Model Pin Pitch Pins Amount Configuration
STM MSB240420E 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-080A
