4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
Specifications
Brand Name :
Sharp LCD Panel
Model Number :
LQ043T1DG01
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
480(RGB)×272 , WQVGA
Display Mode :
TN, Normally White, Transmissive
Contrast Ratio :
300:1 (Typ.)
Display Colors :
16.7M (8-bit)
Response Time :
30/30 (Typ.)(Tr/Td)
Viewing Angle :
60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Description

4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements

FAQ

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q5:Do you accept sample order?

A:Yes,sample order is welcome.

Q6:How can I get the quotation?

A:Please enquire viaSkype,Email,Whatsapp or telephone. You will get reply within 24 hours.

SHARP LQ043T1DG01 General Features

Panel Brand : SHARP
Panel Model : LQ043T1DG01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 4.3 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 95.04×53.856 mm
Outline : 105.5×67.2 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 30/30 (Typ.)(Tr/Td)
Viewing Angle : 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 9S1P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3/5.0V (Typ.)(VCC/AVDD)

SHARP LQ043T1DG01 Mechanical Features

Panel Size : 4.3 inch
Dot Resolution : 480(RGB)×272 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.066×0.198 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 62g (Typ.)
Surface : Antiglare, Hard coating (2H)
Active Area : 95.04×53.856 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 5.05 (Typ.) mm
Landscape or Portrait : Landscape type

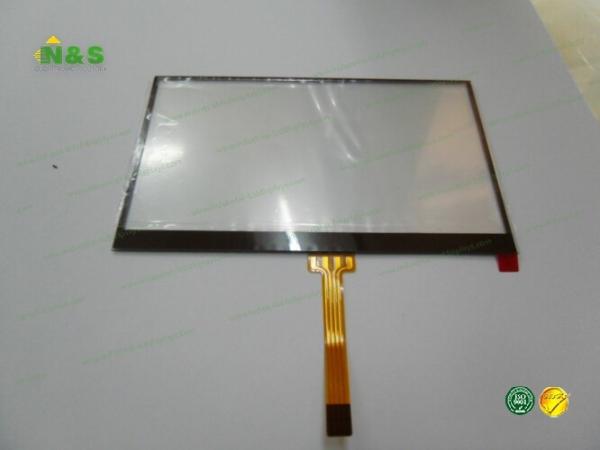

Touch Panel : Embeded (4-wire Resistive)

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160

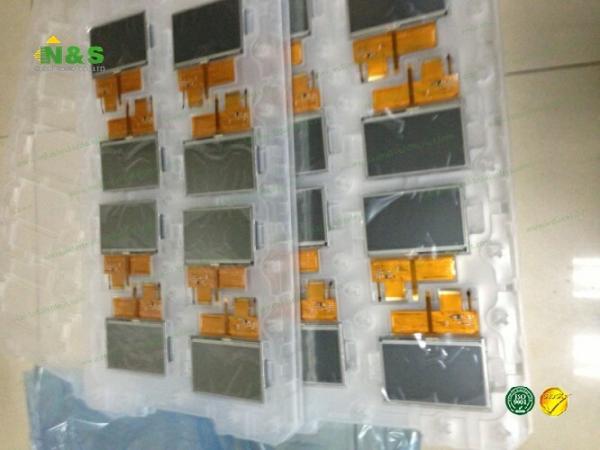

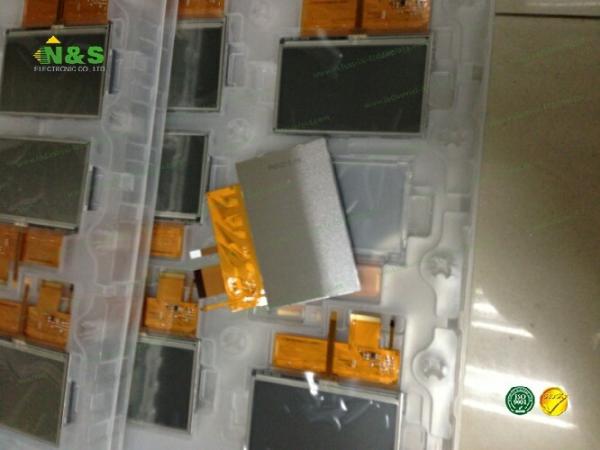

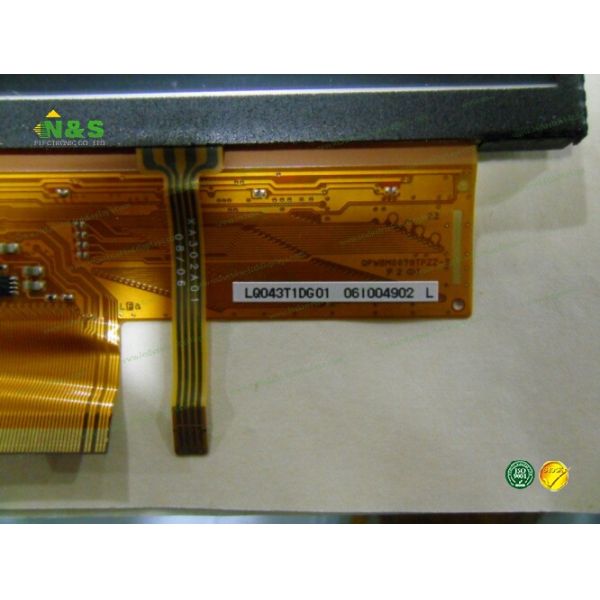

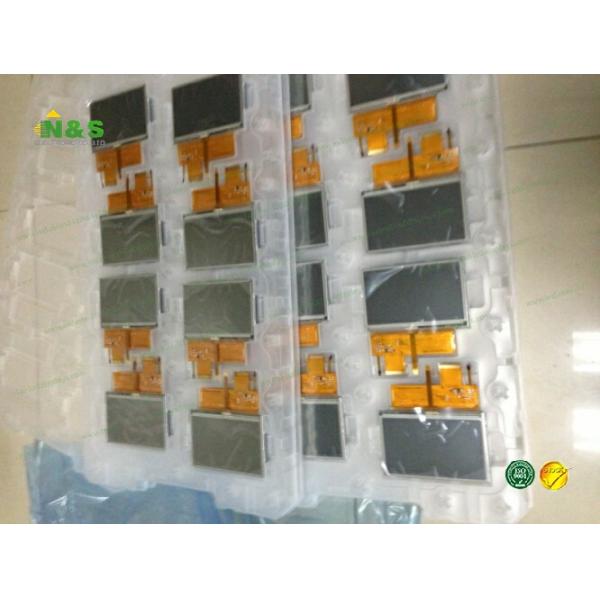

Details Pictures for LQ043T1DG01 LCD Screen Replacements

4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements

4.3 inch 95.04*53.856 mm Normally White LQ043T1DG01 LCD Screen Replacements
