LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm
LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm
LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm
LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm
LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm
LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm
Specifications
Brand Name :
Sharp LCD Panel
Model Number :
LQ035Q1DG02
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Contrast Ratio :
300:1 (Typ.)
Display Colors :
262K (6-bit) , CIE1931 50%
Viewing Angle :
60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency :
60Hz
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
3.5 inch
Description

LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm

SHARP LQ035Q1DG02 General Features

Panel Brand : SHARP
Panel Model : LQ035Q1DG02
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 3.5 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 70.56×52.92 mm
Outline : 76.9×63.9×4.45 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 320 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 50%
Response Time : 30/30 (Typ.)(Tr/Td)
Viewing Angle : 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6S1P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) + SPI , 71 pins
Input Voltage : 3.3/3.3V (Typ.)(VCI/VDDIO)

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

SHARP LQ035Q1DG02 Mechanical Features

Panel Size : 3.5 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 115 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0735×0.2205 mm (H×V)
Pixel Pitch : 0.2205×0.2205 mm (H×V)
Weight : 43g (Max.)
Surface : Antiglare, Hard coating (2H)
Active Area : 70.56×52.92 mm (H×V)
Bezel Area : 71.8×54.0 mm (H×V)
Outline Dimension : 76.9×63.9 mm (H×V)
Outline Depth : 4.25±0.2 mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)

Company Strength:

1. ISO9001 certificated, Factory Direct Supplied

2. RoHS Compliant, Lead Free, Reach Compliant

3. Competitive Price and Short Lead-time

4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

5. Small MOQ Support & Fast Response to Customers

6. Long Product Life Time

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

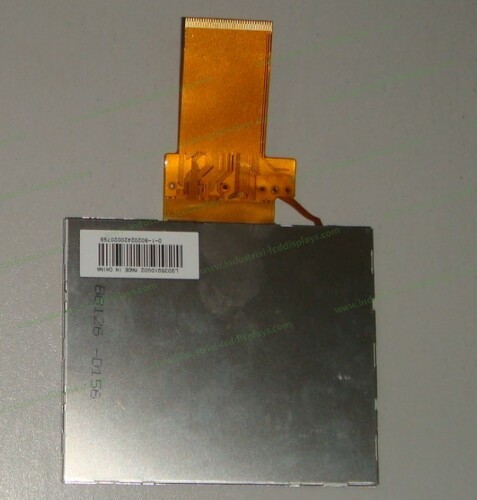

Details Pictures for LQ035Q1DG02

LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm

LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm
