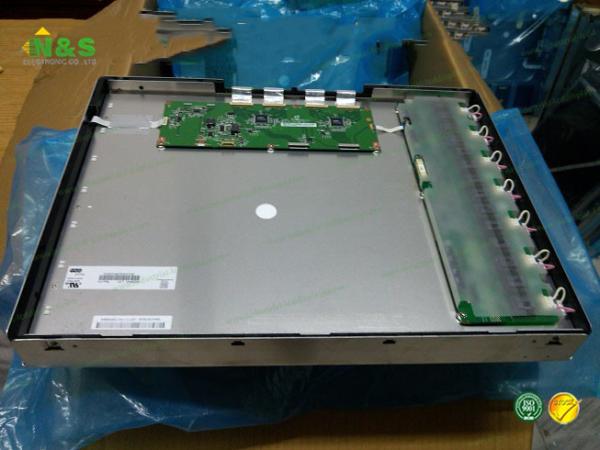

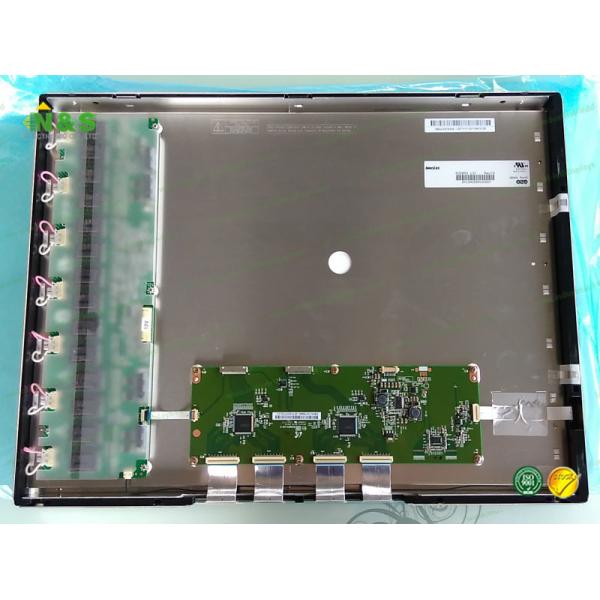

New and original R208R3-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for Medical Imaging
New and original R208R3-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for Medical Imaging
New and original R208R3-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for Medical Imaging
New and original R208R3-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for Medical Imaging
New and original R208R3-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for Medical Imaging
New and original R208R3-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for Medical Imaging
Specifications
Brand Name :
CMO
Model Number :
R208R3-L01
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
R208R3-L01
Panel Brand :
CMO
Descrition :
2048×1536
Panel Type :
a-Si TFT-LCD
Active Area :
423.9×318 mm
Outline :
457×350×45.8 mm
Description

New and original R208R3-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for Medical Imaging

R208R3-L01 Basic Information

Panel Model R208R3-L01
Panel Brand CMO
Descrition a-Si TFT-LCD ,20.8 inch, 2048×1536
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

R208R3-L01 Mechanical Features

Dot Resolution 2048(RGB)×1536 (QXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 122 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.069×0.207 mm (H×V)
Pixel Pitch 0.207×0.207 mm (H×V)
Weight 2.58Kgs (Max.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 423.9×318 mm (H×V)
Bezel Area 427.9×322.0 mm (H×V)
Outline Dimension 457×350 mm (H×V)
Outline Depth 45.0/45.8 (Typ./Max.) mm
Holes & Brackets Side mounting holes (8-M3)
Landscape or Portrait Landscape type
Touch Panel Without

Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok

R208R3-L01 Optical Features

Display Mode IPS, Normally Black, Transmissive
Brightness 600 cd/m² (Typ.)
Contrast Ratio 900 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 72% NTSC (CIE1931)
Response Time 10/10 (Typ.)(Tr/Td)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.294; Wy:0.309
White Variation 1.25/1.40 (Typ./Max.)(5 points)
Sunlight Readable N

Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.

R208R3-L01 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 76.32W (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
NP055IA-03E Innolux 5.5" 1080×1920
N080ICE-GB1 CELL Innolux 8.0" 800×1280
V650DJ4-QS5 Innolux 65" 3840×2160
F050A08-601 Innolux 5.0" 480×854
V750DK1-QS3 Innolux 75" 3840×2160
PP047IA-03A Innolux 4.7" 540×960
F068A01-6T1 Innolux 6.8" 720×1280
F060A09-604 Innolux 6.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information
