TCG104XGLPAPNN-AN40 Kyocera a-Si TFT-LCD ,10.4 inch, 1024×768 for Industrial Application
TCG104XGLPAPNN-AN40 Kyocera a-Si TFT-LCD ,10.4 inch, 1024×768 for Industrial Application
TCG104XGLPAPNN-AN40 Kyocera a-Si TFT-LCD ,10.4 inch, 1024×768 for Industrial Application
TCG104XGLPAPNN-AN40 Kyocera a-Si TFT-LCD ,10.4 inch, 1024×768 for Industrial Application
Specifications
Brand Name :
Kyocera
Model Number :
TCG104XGLPAPNN-AN40
Certification :
ISO9001
Place of Origin :
Korea
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
TCG104XGLPAPNN-AN40
Panel Brand :
Kyocera
Descrition :
1024×768
Panel Type :
a-Si TFT-LCD
Active Area :
210.432×157.824 mm
Outline :
230×180.2×11 mm
Description

TCG104XGLPAPNN-AN40 Kyocera a-Si TFT-LCD ,10.4 inch, 1024×768 for Industrial Application

TCG104XGLPAPNN-AN40 Basic Information

Panel Model TCG104XGLPAPNN-AN40
Panel Brand Kyocera
Descrition a-Si TFT-LCD ,10.4 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 80 °C

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

TCG104XGLPAPNN-AN40 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 123 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0685×0.2055 mm (H×V)
Pixel Pitch 0.2055×0.2055 mm (H×V)
Weight 480g (Typ.)
Surface Antiglare
Active Area 210.432×157.824 mm (H×V)
Bezel Area 215.4×161.8 mm (H×V)
Outline Dimension 230×180.2 mm (H×V)
Outline Depth 10.5±0.5 mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Return and Refund:

(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.

(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.

(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.

TCG104XGLPAPNN-AN40 Optical Features

Display Mode AWV, Normally Black, Transmissive
Brightness 1300 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Dithering)
Color Gamut 51% NTSC (CIE1931)
Response Time 18/12 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.315; Wy:0.340
Sunlight Readable Y

The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

TCG104XGLPAPNN-AN40 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
F-51373GNC-FW-ATN Kyocera 3.8" 240×320
F-51851GNFJ-SLW-AEN Kyocera 5.2" 240×64
F-51852GNBJ-LW-AKN Kyocera 2.8" 128×64
KCG057QVLDG-G77 Kyocera 5.7" 320×240
DMF-50036ZNFU-FW-BBN Kyocera 9.6" 640×200
DMF-50036ZNFU-FW Kyocera 9.6" 640×200
DMF682ANF-EW Kyocera 5.3" 256×128
DMF-50773NB-FW Kyocera 5.4" 240×128

We also have other industrial LCD panels, pls contact to us for the further information

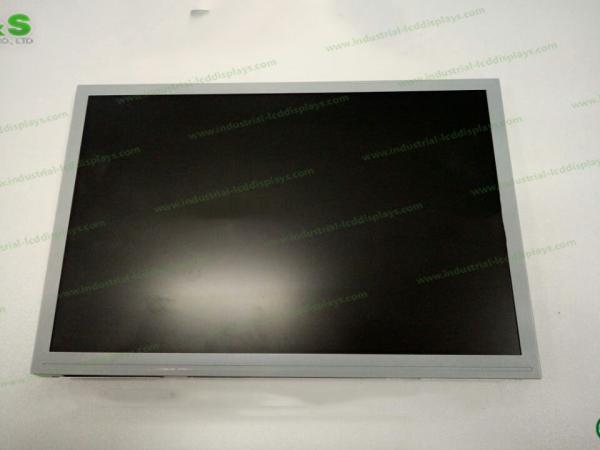

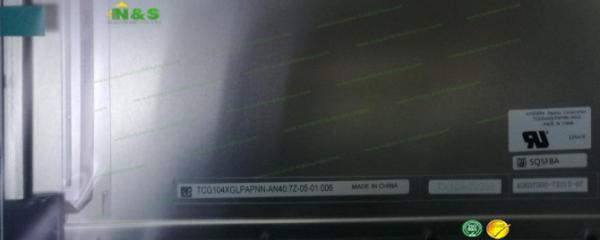

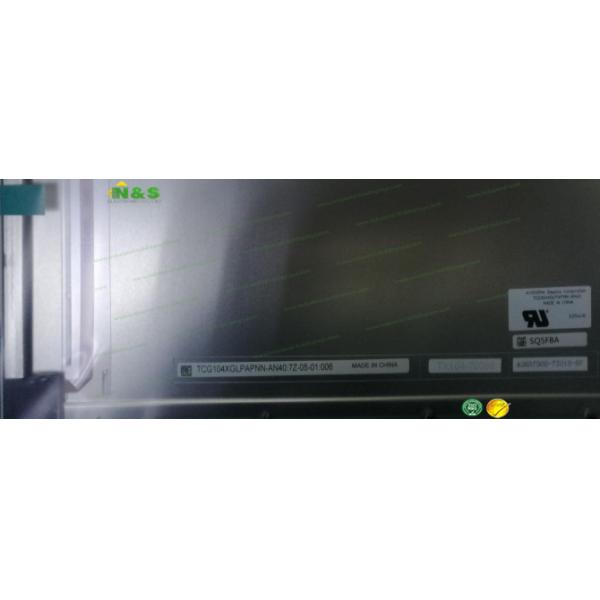

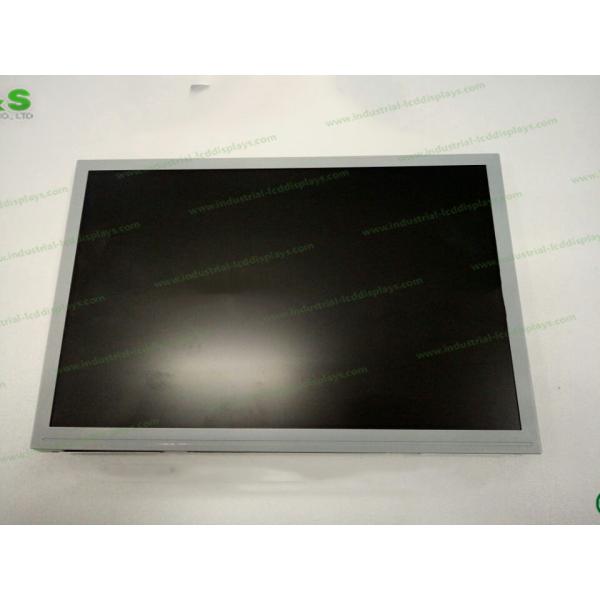

TCG104XGLPAPNN-AN40 pictures
