NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
Specifications
Brand Name :
NEC
Model Number :
NL8060BC21-10
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
8.4 inch
Resolution :
800(RGB)×600 , SVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
170.4×127.8 mm
Display Colors :
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Response Time :
6/19 (Typ.)(Tr/Td)
Description

NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm

Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.

NL8060BC21-10 Characteristic

Panel Brand : NEC
Panel Model : NL8060BC21-10
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 8.4 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 170.4×127.8 mm
Outline : 200×152 mm
Surface : Clear, Hard coating (3H)
Brightness : 400 cd/m2 (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Response Time : 6/19 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 6/8-bit)
Input Voltage : 3.3V (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED043WC1 E Ink 4.3" 480×800
ED043WC3 E Ink 4.3" 480×800
ED060XD6 E Ink 6.0" 758×1024
SMA058HRG1 E Ink 5.8" 600×448
SMA058H7G1 E Ink 5.8" 600×448

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

NEC NL8060BC21-10 Mechanical Features

Panel Size : 8.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 119 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.071×0.213 mm (H×V)
Pixel Pitch : 0.213×0.213 mm (H×V)
Weight : 330g (Typ.)
Surface : Clear, Hard coating (3H)
Active Area : 170.4×127.8 mm (H×V)
Outline Dimension : 200×152 mm (H×V)
Outline Depth : 10.5±0.5 mm
Landscape or Portrait : Landscape type

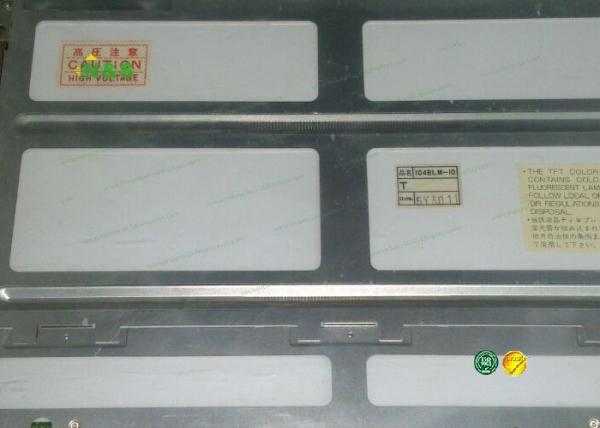

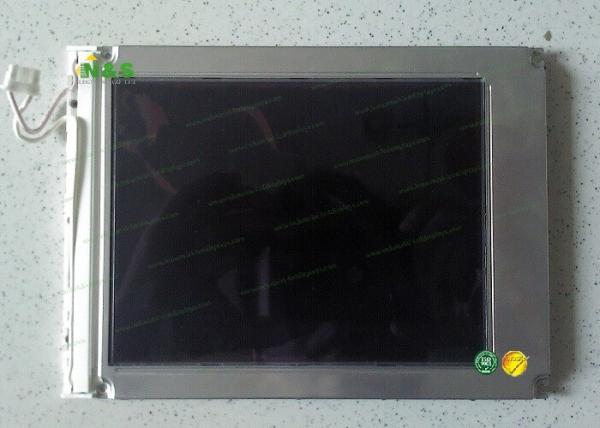

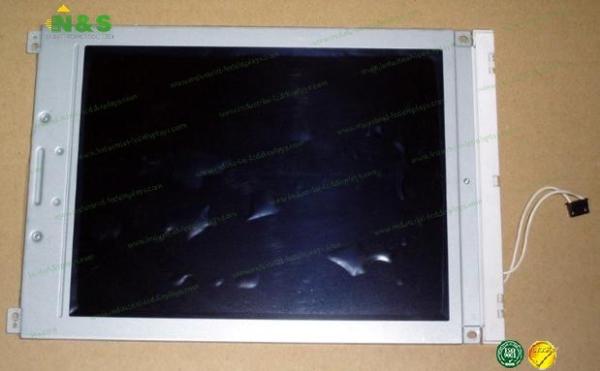

NL8060BC21-10 Picture

NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm

NL8060BC21-10 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
