LTM240W1-L04 Samsung LCD Panel 24.0 inch with 518.4×324 mm Active Area
LTM240W1-L04 Samsung LCD Panel 24.0 inch with 518.4×324 mm Active Area
Specifications
Brand Name :
Samsung
Model Number :
LTM240W1-L04
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Samsung
Panel Model :
LTM240W1-L04
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
24.0 inch
Resolution :
1920(RGB)×1200 , WUXGA
Display Mode :
APVA, Normally Black, Transmissive
Description

LTM240W1-L04 Samsung LCD Panel 24.0 inch with 518.4×324 mm Active Area

LTM240W1-L04 Information

Panel Brand : SAMSUNG
Panel Model : LTM240W1-L04
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 24.0 inch
Resolution : 1920(RGB)×1200 , WUXGA
Display Mode : APVA, Normally Black, Transmissive
Active Area : 518.4×324 mm
Outline : 569.1×368.4 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 270 cd/m² (Typ.)
Contrast Ratio : 700:1 (Min.)
Display Colors : 16.7M (8-bit)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6 pcs CCFL Without Driver
Signal Interface : OpenLDI , 43 pins
Input Voltage : 5.0V (Typ.)

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.

Panel Size : 24.0 inch
Dot Resolution : 1920(RGB)×1200 (WUXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 94 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.090×0.270 mm (H×V)
Pixel Pitch : 0.270×0.270 mm (H×V)
Weight : 5.65Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 518.4×324 mm (H×V)
Bezel Area : 522.4×328.0 mm (H×V)
Outline Dimension : 569.1×368.4 mm (H×V)
Outline Depth : 30.9 (Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMCE002 Samsung 2.4" 240×320
AMEJ006 Samsung 2.8" 240×400
AMCB004 Samsung 2.4" 240×320
AMS410GJ02-0 Samsung 4.1" 480×800
AMS397GE10-0 Samsung 4.0" 480×800
AMS331FY01 Samsung 3.3" 480×800
AMS347FF02 Samsung 3.5" 360×640
AMS347FF01 Samsung 3.5" 360×640

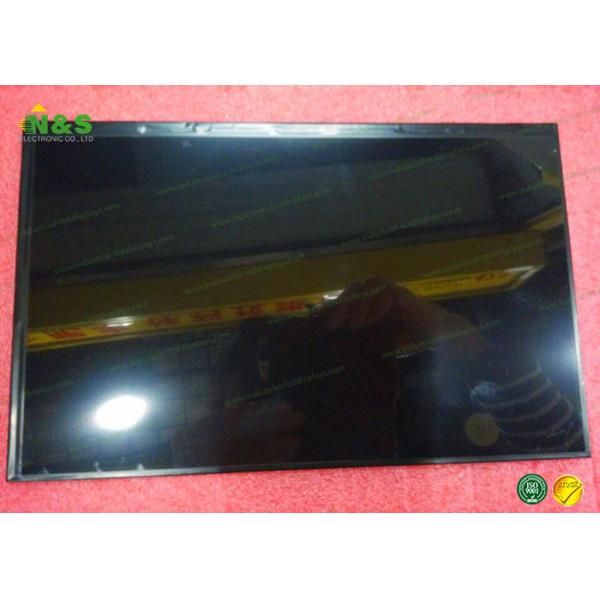

LTM240W1-L04 Picture
