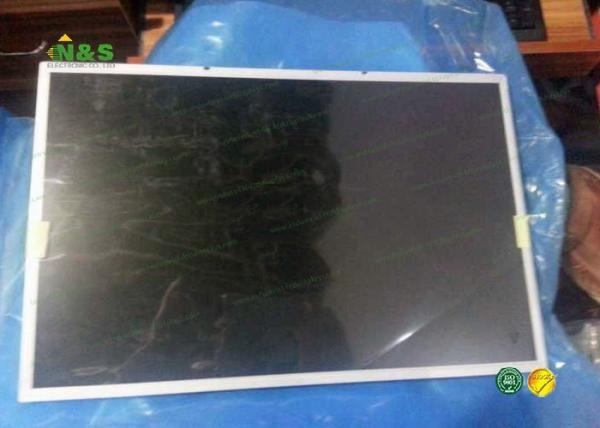

19.0 Inch LM190WX1-TLL1 Normally White Lg Display Panel with 408.24×255.15 mm Active Area
19.0 Inch LM190WX1-TLL1 Normally White Lg Display Panel with 408.24×255.15 mm Active Area
19.0 Inch LM190WX1-TLL1 Normally White Lg Display Panel with 408.24×255.15 mm Active Area
19.0 Inch LM190WX1-TLL1 Normally White Lg Display Panel with 408.24×255.15 mm Active Area
Specifications
Brand Name :
LG LCD Panel
Model Number :
LM190WX1-TLL1
Certification :
ISO9001
Place of Origin :
Korea
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
19.0 inch
Pixel Density :
89 PPI
Form Factor :
Flat Rectangle Display
Dot Pitch :
0.0945×0.2835 mm (H×V)
Description

19.0 Inch LM190WX1-TLL1 Normally White Lg Display Panel with 408.24×255.15 mm Active Area

Panel Brand : LG Display
Panel Model : LM190WX1-TLL1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 19.0 inch
Resolution : 1440(RGB)×900 , WXGA+
Display Mode : TN, Normally White, Transmissive
Active Area : 408.24×255.15 mm
Outline : 428×278×15 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC)
Response Time : 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)


Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

LG Display LM190WX1-TLL1 Mechanical Features

Panel Size : 19.0 inch
Dot Resolution : 1440(RGB)×900 (WXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 89 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0945×0.2835 mm (H×V)
Pixel Pitch : 0.2835×0.2835 mm (H×V)
Weight : 1.67/1.76Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 408.24×255.15 mm (H×V)
Bezel Area : 412.24×259.15 mm (H×V)
Outline Dimension : 428×278 mm (H×V)
Outline Depth : 15.0 (Max.) mm


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LG 1.3 Circular P-OLED LG Display 1.3" 320×320
LH300WQ1-ED01 LG Display 3.0" 240×400
LB050S01-RD02 LG Display 5.0" 800×600
LB050S01-RD01 LG Display 5.0" 800×600
LC430DUY-SHA3 LG Display 43" 1920×1080
LD490EPY-SHP1 LG Display 49" 1920×1080
