LTN170X3-L01 17.0 inch Industrial Flat Panel Display Hard coating 367.2×229.5 mm Active Area
LTN170X3-L01 17.0 inch Industrial Flat Panel Display Hard coating 367.2×229.5 mm Active Area
Specifications
Brand Name :
SAMSUNG
Model Number :
LTN170X3-L01
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
SAMSUNG
Panel Model :
LTN170X3-L01
Panel Type :
a-Si TFT-LCD , LCM
Active Area :
367.2×229.5 mm
Outline :
382.2×246.8×10 mm
Shape Style :
Wedge (PCBA Bent, Depth ≥5.2mm)
Description


LTN170X3-L01 17.0 inch Industrial Flat Panel Display Hard coating 367.2×229.5 mm Active Area

LTN170X3-L01 Characteristic

Panel Brand :SAMSUNG
Panel Model :LTN170X3-L01
Panel Type :a-Si TFT-LCD , LCM
Panel Size :17.0 inch
Resolution :1440(RGB)×900 , WXGA+
Display Mode :TN, Normally White, Transmissive
Active Area :367.2×229.5 mm
Outline :382.2×246.8×10 mm
Shape Style :Wedge (PCBA Bent, Depth ≥5.2mm)
Surface :Glare (Haze 0%), Hard coating (3H)
Brightness :400 cd/m2 (Typ.)
Contrast Ratio :500:1 (Typ.)
Display Colors :262K (6-bit) , CIE1931 72%
Response Time :25 (Typ.)(Tr+Tf)
Viewing Angle :65/65/45/55 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :2 pcs CCFL
Signal Interface :LVDS (2 ch, 6-bit) , 30 pins
Input Voltage :3.3V (Typ.)

SAMSUNG LTN170X3-L01 Mechanical Features

Panel Size :17.0 inch
Dot Resolution :1440(RGB)×900 (WXGA+)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :99 PPI
Aspect Ratio :16:10 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.085×0.255 mm (H×V)
Pixel Pitch :0.255×0.255 mm (H×V)
Weight :0.92/0.95/1.02Kgs (Min./Typ./Max.)
Surface :Glare (Haze 0%), Hard coating (3H)
Active Area :367.2×229.5 mm (H×V)
Bezel Area :370.4×232.7 mm (H×V)
Outline Dimension :382.2×246.8 mm (H×V)
Outline Depth :9.6/10 (Typ./Max.) mm
Shape Style :Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets :Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait :Landscape type
Touch Panel :Without


Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
AMCE002Samsung2.4"240×320
AMEJ006Samsung2.8"240×400
AMCB004Samsung2.4"240×320
AMS410GJ02-0Samsung4.1"480×800
AMS397GE10-0Samsung4.0"480×800


Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

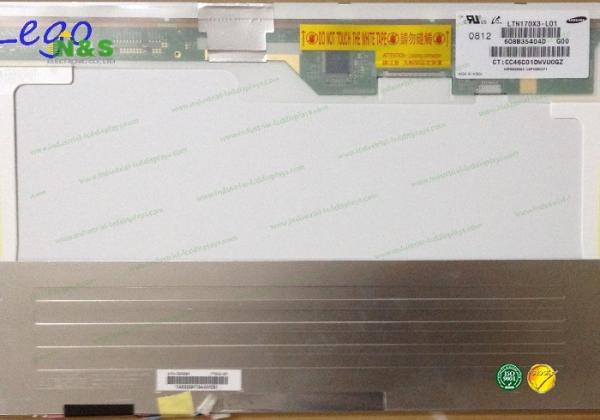

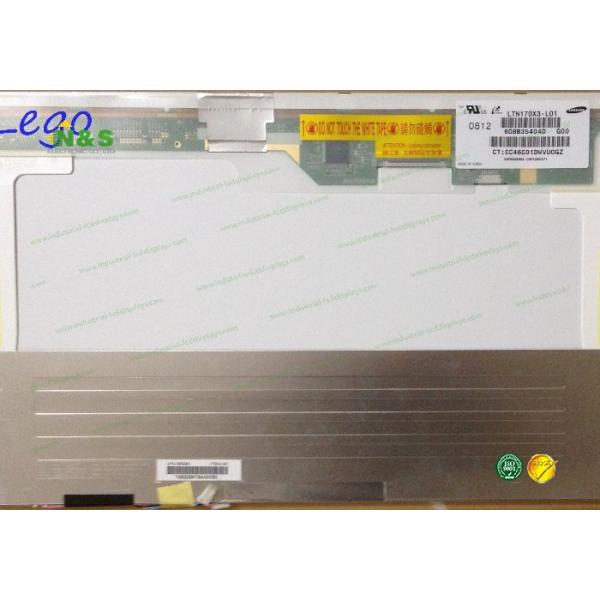

LTN170X3-L01 Picture

LTN170X3-L01 17.0 inch Industrial Flat Panel Display Hard coating 367.2×229.5 mm Active Area
