Specifications
Brand Name :
CMO
Model Number :
G104X1-L03
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
CMO
Panel Model :
G104X1-L03
Resolution :
1024(RGB)×768 , XGA
Display Mode :
Super MVA, Normally Black, Transmissive
Active Area :
210.4×157.8 mm
Outline :
238.6×175.8×7.97 mm
Description

10.4 Inch CMO LCD Screen G104X1-L03 , anti glare lcd screen industrial grade

G104X1-L03 Characteristic

Panel Brand : CMO
Panel Model : G104X1-L03
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : Super MVA, Normally Black, Transmissive
Active Area : 210.4×157.8 mm
Outline : 238.6×175.8×7.97 mm
Surface : Antiglare
Brightness : 350 cd/m2 (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 53%
Response Time : 14/11 (Typ.)(Tr/Td)
Viewing Angle : 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 8-bit) , 30 pins
Input Voltage : 3.3V (Typ.)

CMO G104X1-L03 Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 123 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0685×0.2055 mm (H×V)
Pixel Pitch : 0.2055×0.2055 mm (H×V)
Weight : 280g (Typ.)
Surface : Antiglare
Active Area : 210.4×157.8 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 238.6×175.8 mm (H×V)
Outline Depth : 6.0/7.97 (Typ./Max.) mm
Holes & Brackets : Face mounting holes (4-Ф2.8) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED133TT1 E Ink 13.3" 2200×1650
ED060SD1 E Ink 6.0" 600×800
ED060SCT E Ink 6.0" 600×800
ET043OC1 E Ink 4.4" 360×640
EN133UT1 E Ink 13.3" 1600×1200
ED047TC1 E Ink 4.7" 540×960
ED133UT1 E Ink 13.3" 1600×1200
ES133UT1 E Ink 13.3" 1600×1200
ED060SCQ E Ink 6.0" 600×800
ED097OD2 E Ink 9.7" 1200×825
ED060KG1 E Ink 6.0" 1072×1448

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

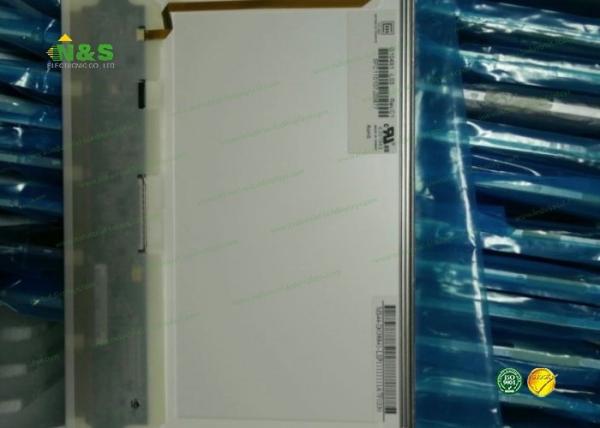

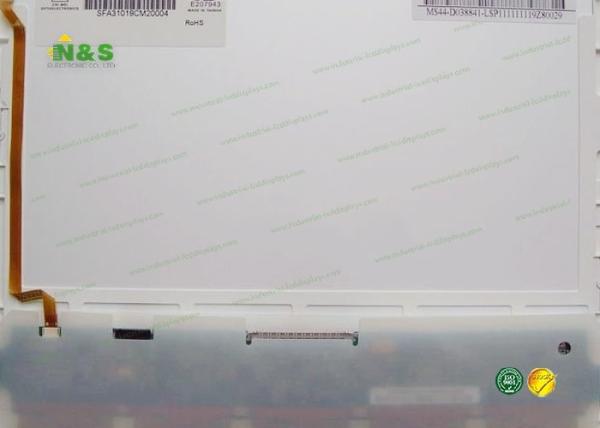

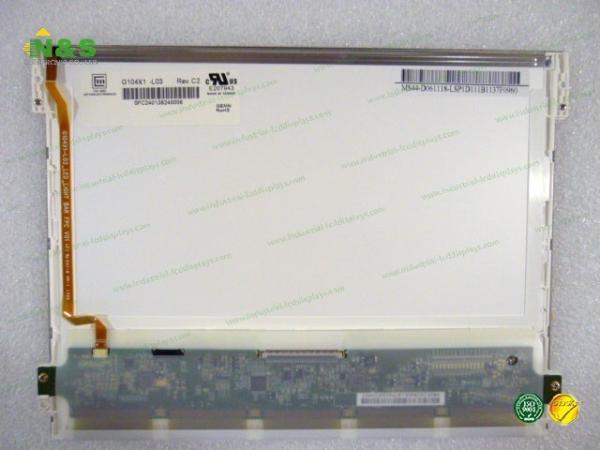

G104X1-L03 Picture
