LMS430HF27 Samsung LCD Panel 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins
LMS430HF27 Samsung LCD Panel 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins
Specifications
Brand Name :
Samsung
Model Number :
LMS430HF27
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Series :
LMS430HF
Keywords Desc. :
Samsung 4.3" VA LCM 480×272 500nits WLED TTL 45pins
Product Class :
Graphic LCD Display
Product Tags :
Color TFT-LCD,High Brightness LCD,Transflective LCD,Sunlight Readable
Application :
MP4 PMP,Pocket TV,Portable Navigation
Panel Type :
a-Si TFT-LCD
Panel Composition :
LCM
Panel Size :
4.3"
Resolution :
480×272
Aspect Ratio :
16:9 (W:H)
Form Factor :
Flat Rectangle Display
Orientation :
Landscape type
Active Area :
95.04 (W) × 53.856 (H) mm (A.A)
Viewing Area :
96.44 (W) × 55.23 (H) mm (V.A)
Outline Dimension :
105.5 (W) × 67.2 (H) mm
Weight :
45.0g (Typ.)
LC Family :
VA Family
Polarizer :
Transflective
Brightness :
500 (Typ.)
Contrast Ratio :
800:1 (Typ.)
Description

Samsung LMS430HF27 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins

LMS430HF27 Main Parameters

Panel Brand : SAMSUNG
Panel Model : LMS430HF27
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 4.3 inch
Resolution : 480×272(RGB) , WQVGA
Display Mode : VA, Normally Black, Transflective
Active Area : 95.04×53.856 mm
Outline : 105.5×67.2 mm
Brightness : 500 cd/m2 (Typ.)
Contrast Ratio : 800:1 (Typ.)(Transmissive)
Display Colors : 16.7M (8-bit)
Response Time : 17/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 10S1P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 45 pins
Input Voltage : 3.3V (Typ.)

SAMSUNG LMS430HF27 Mechanical Features

Panel Size : 4.3 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.198×0.066 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 45.0g (Typ.)
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 96.44×55.23 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 2.9±0.2 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without


FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

Below are our other LCD panels stock for your easy reference:

Panel Size : 4.3 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.198×0.066 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 45.0g (Typ.)
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 96.44×55.23 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 2.9±0.2 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

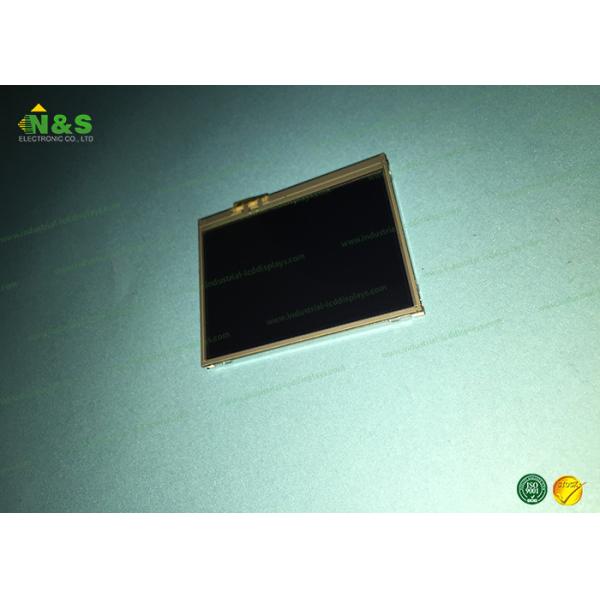

LMS430HF27 Picture
