10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins
10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins
10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins
10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins
10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins
10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins
Specifications
Brand Name :
TOSHIBA
Model Number :
LTD104EA5R
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Series :
LTD104EA
Keywords Desc. :
TOSHIBA 10.4" TN LCM 1024×768 170nits CCFL LVDS 20pins
Product Class :
Graphic LCD Display
Product Tags :
Color TFT-LCD,Transmissive LCD
Application :
Laptop
Panel Type :
LTPS TFT-LCD
Panel Composition :
LCM
Panel Size :
10.4"
Resolution :
1024×768
Aspect Ratio :
4:3 (W:H)
Form Factor :
Flat Rectangle Display
Orientation :
Landscape type
Active Area :
210.4 (W) × 157.8 (H) mm (A.A)
Viewing Area :
215.0 (W) × 162.5 (H) mm (V.A)
Outline Dimension :
237.1 (W) × 173.2 (H) mm
Max. Depth :
4.9 mm
Weight :
19020g
LC Family :
TN
Polarizer :
Transmissive
Brightness :
170 (Typ.)
Description

10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins

LTD104EA5R General Features

Panel Brand : Toshiba Matsushita
Panel Model : LTD104EA5R
Panel Type : LTPS TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 210.4×157.8 mm
Outline : 237.1×173.2×4.9 mm
Brightness : 170 cd/m2 (Typ.)
Contrast Ratio : 100:1 (Min.)
Display Colors : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Viewing Angle : 40/40/20/30 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL [8S6P: 8 Serial, 6 Parallel] Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 20 pins
Input Voltage : 3.3V (Typ.)

Toshiba Matsushita LTD104EA5R Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 170 cd/m2 (Typ.)
Contrast Ratio : 100 : 1 (Min.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Viewing Angle : 40/40/20/30 (Typ.)(CR≥10) (L/R/U/D)
Sunlight Readable : N

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LTD121LA7SG (Z) TOSHIBA 12.1" 1024×768
LTD154LZ1SG TOSHIBA 15.4" 1920×1200
LTD141LA1SG TOSHIBA 14.1" 1024×768
LTD121EA43G TOSHIBA 12.1" 1024×768
LTH15C503-A TOSHIBA 15.0" 1024×768
LTM024D161 TOSHIBA 2.4" 240×320
LTM030DH60 TOSHIBA 3.0" 240×427

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

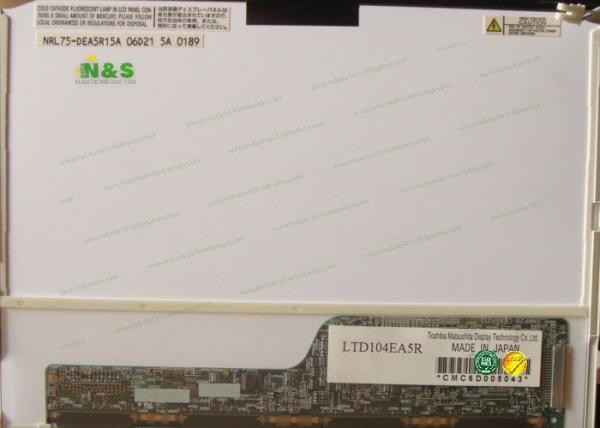

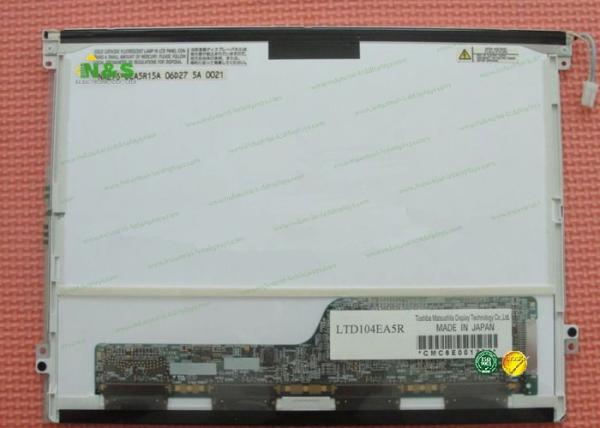

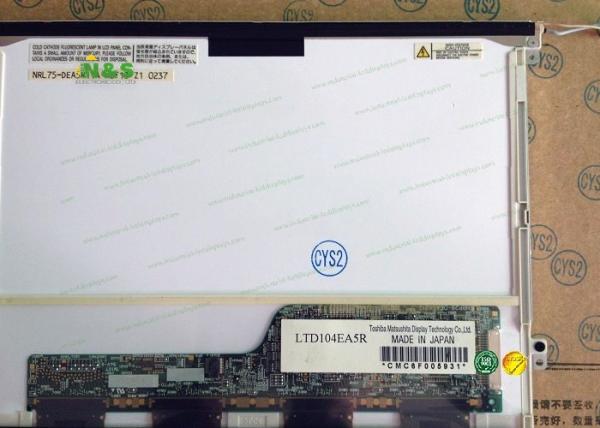

LTD104EA5R Picture

10.4 inch TOSHIBA LTD104EA5R TN LCM 1024×768 170nits CCFL LVDS 20pins
