LTM10C273 TOSHIBA 10.4 inch TN LCM 800×600 250nits CCFL TTL 31pins
LTM10C273 TOSHIBA 10.4 inch TN LCM 800×600 250nits CCFL TTL 31pins
LTM10C273 TOSHIBA 10.4 inch TN LCM 800×600 250nits CCFL TTL 31pins
LTM10C273 TOSHIBA 10.4 inch TN LCM 800×600 250nits CCFL TTL 31pins
LTM10C273 TOSHIBA 10.4 inch TN LCM 800×600 250nits CCFL TTL 31pins
LTM10C273 TOSHIBA 10.4 inch TN LCM 800×600 250nits CCFL TTL 31pins
Specifications
Brand Name :
TOSHIBA
Model Number :
LTM10C273
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Series :
LTM10C273
Keywords Desc. :
TOSHIBA 10.4" TN LCM 800×600 250nits CCFL TTL 31pins
Product Class :
Graphic LCD Display
Product Tags :
Color TFT-LCD,Transmissive LCD
Application :
Industrial Application
Panel Type :
a-Si TFT-LCD
Panel Composition :
LCM
Panel Size :
10.4"
Resolution :
800×600
Aspect Ratio :
4:3 (W:H)
Form Factor :
Flat Rectangle Display
Orientation :
Landscape type
Active Area :
211.2 (W) × 158.4 (H) mm (A.A)
Viewing Area :
216.2 (W) × 163.4 (H) mm (V.A)
Outline Dimension :
265 (W) × 188.8 (H) mm
Weight :
580g (Typ.)
LC Family :
TN
Polarizer :
Transmissive
Brightness :
250 (Typ.)
Contrast Ratio :
250:1 (Typ.)
Description

LTM10C273 TOSHIBA 10.4 inch TN LCM 800×600 250nits CCFL TTL 31pins

The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

LTM10C273 Detailed Product Description

Panel Brand : TOSHIBA
Panel Model : LTM10C273
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 265×188.8 mm
Brightness : 250 cd/m2 (Typ.)
Contrast Ratio : 250:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Lamp Type : 2 pcs CCFL
Signal Interface : Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage : 5.0V (Typ.)(VDD)

TOSHIBA LTM10C273 Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 580g (Typ.)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 216.2×163.4 mm (H×V)
Outline Dimension : 265×188.8 mm (H×V)
Outline Depth : 12.0 (Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.2)
Landscape or Portrait : Landscape type
Touch Panel : Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LTD121LA7SG (Z) TOSHIBA 12.1" 1024×768
LTD154LZ1SG TOSHIBA 15.4" 1920×1200
LTD141LA1SG TOSHIBA 14.1" 1024×768
LTD121EA43G TOSHIBA 12.1" 1024×768
LTH15C503-A TOSHIBA 15.0" 1024×768
LTM024D161 TOSHIBA 2.4" 240×320

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

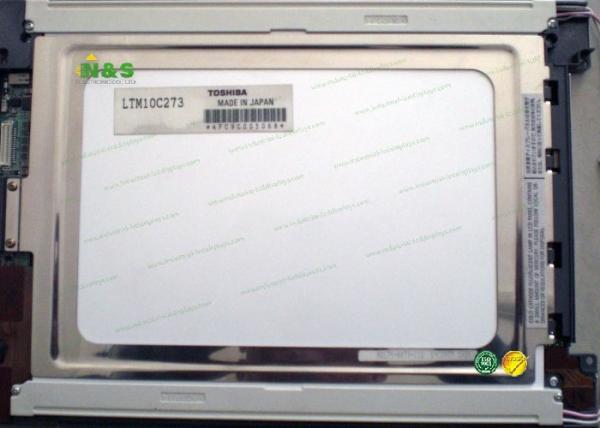

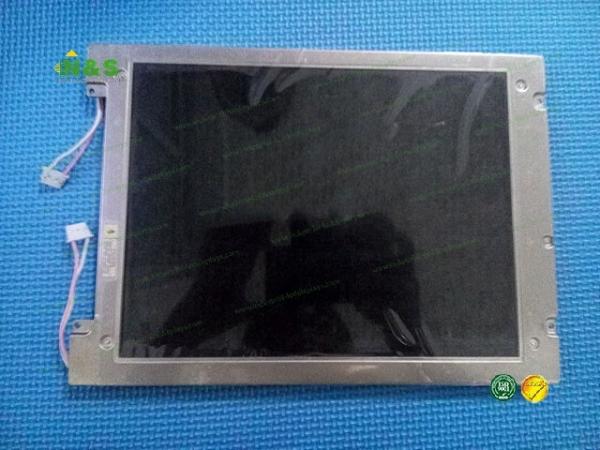

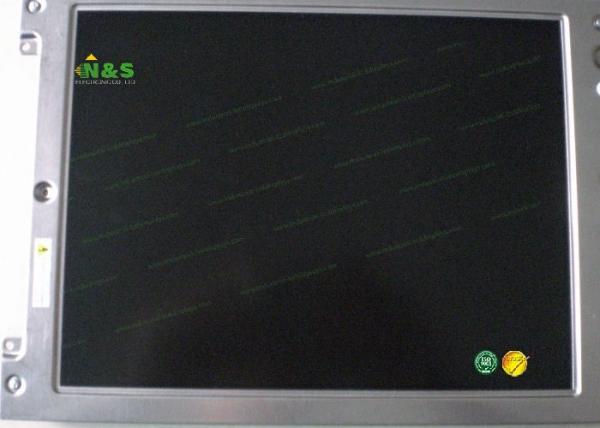

LTM10C273 Picture
