18.5 Inch M185B1-L07 Innolux LCD Panel CMO LCM 1366×768 200 700 / 1 16.7M CCFL LVDS
18.5 Inch M185B1-L07 Innolux LCD Panel CMO LCM 1366×768 200 700 / 1 16.7M CCFL LVDS
Specifications
Brand Name :
Innolux
Model Number :
M185B1-L07
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :

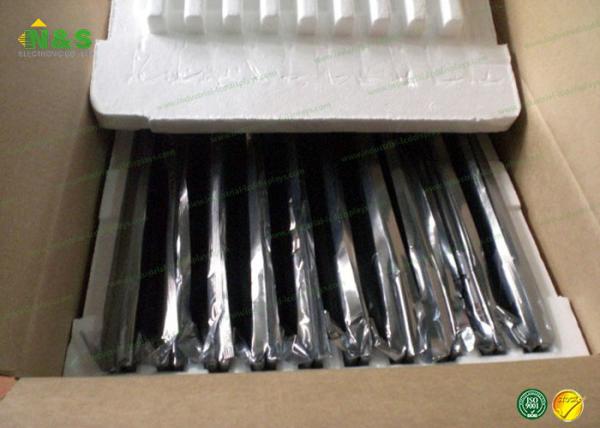

Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size : :
18.5 inch
Resolution : :
1366(RGB)×768 , WXGA
Active Area : :
409.8×230.4 mm
Outline : :
430.37×254.6×11 mm
Surface : :
Antiglare, Hard coating (3H)
Contrast Ratio : :
700:1 (Typ.)
Description

18.5 Inch M185B1-L07 Innolux LCD Panel CMO LCM 1366×768 200 700 / 1 16.7M CCFL LVDS

M185B1-L07 Detail

Panel Size : 18.5 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 84 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.100×0.300 mm (H×V)
Pixel Pitch : 0.300×0.300 mm (H×V)
Weight : 1.43/1.48Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 409.8×230.4 mm (H×V)
Bezel Area : 413.4×234.0 mm (H×V)
Outline Dimension : 430.37×254.6 mm (H×V)
Outline Depth : 8.05/11.0 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
Sunlight Readable : N
Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 15.21W (Typ.)

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED097OC1 E Ink 9.7" 1200×825
ED080XC2 E Ink 8.0" 1024×768
ED080XC1 E Ink 8.0" 1024×768
ED060SC3 E Ink 6.0" 800×600
ED050SC1 E Ink 5.0" 800×600
PD035QX7 E Ink 3.5" 320×240
PW070DS6 E Ink 7.0" 480×234

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
