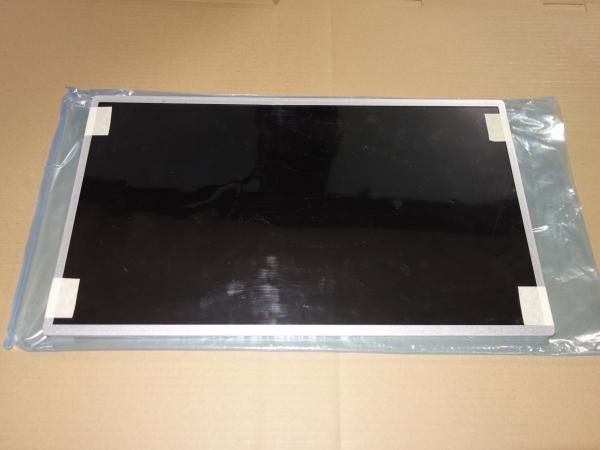

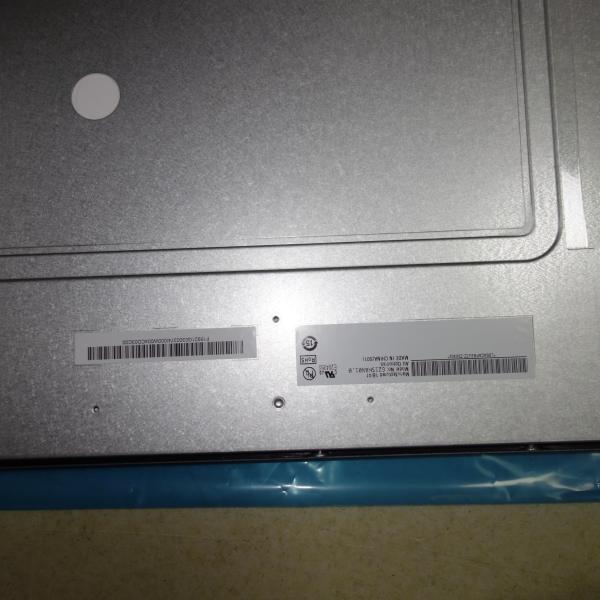

21.5 G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel
21.5 G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel
21.5 G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel
21.5 G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel
21.5 G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel
21.5 G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel
Specifications
Brand Name :
AUO
Model Number :
G215HAN01.0
Place of Origin :
taiwan
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Manufacturer :
AUO
Screen Size :
21.5 inch
Model Name :
G215HAN01.0
Screen Type :
LCM , a-Si TFT-LCD
Luminance :
400 cd/m² (Typ.)
Treatment :
Antiglare, Hard coating (3H)
Good View at :
Symmetry
Color Depth :
16.7M 72% NTSC
Backlight :
9S7P WLED , 50K hours , With LED Driver
Signal Type :
LVDS (2 ch, 8-bit) , 30 pins Connector
Description

21.5" G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel

Description Of AUO LCD Panel

G215HAN01.0 (Alias: 97.21G03.000) is a 21.5 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.1 which was released out on 2 18 2019, G215HAN01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.

Specification Of AUO LCD Panel

Display Area 476.064×267.786 mm (H×V)

Bezel Area		 479.8×271.3 mm (H×V)
Operating Temp. 0 ~ 60 °C
Model Alias 97.21G03.000
Storage Temp. -20 ~ 60 °C
Vibration Rating 1.5G (14.7 m/s²)
Color Temperature 6485K
Response Time 12/10 (Typ.)(Tr/Td) ms

AUO G215HAN01.0 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AHVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
12/10 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.18/1.25 (Typ./Max.)(9 points) 21.5
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
96% coverage
Adobe RGB
75% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G215HAN01.0 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
9S7P
Life Time
50K(Min.) (Hours)
Replacement
-
Lamp Shape
7 strings
Position
Edge light type (Top side)
Interface Features :
Type
Connector
Position
21.5
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration 21.5
STM
MS24049HJ
1.25 mm
9 pins
1 pcs
Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
1.17/1.4A (Typ./Max.)
Consumption
14.0/16.8W (Typ./Max.)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

H498ATN01.1 AUO 5.0"
H466TAN01.1 AUO 4.7"
H446TAN01.1 AUO 4.5"
A070STN01.2 AUO 7.0"
M215HTN01.1 CELL AUO 21.5"
M195RTN01.0 CELL AUO 19.5"
H572TVN01.2 AUO 5.7"
H402VVN01.0 AUO 4.0"
M240HTN01.2 CELL AUO 24.0"
A050VVN01.3 AUO 5.0"
M195RTN01.1 CELL AUO 19.5"
H430VAN01.0 AUO 4.3"
T390HVN04.0 CELL AUO 39"

Application Of AUO LCD Panel G215HAN01.0

1. Medical Equipment

2. Security Monitoring System

3. Industrial Control

4. On-board display

Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.

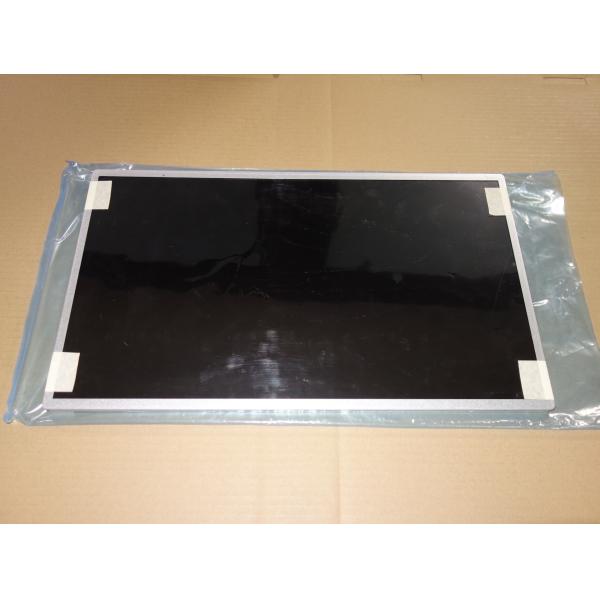

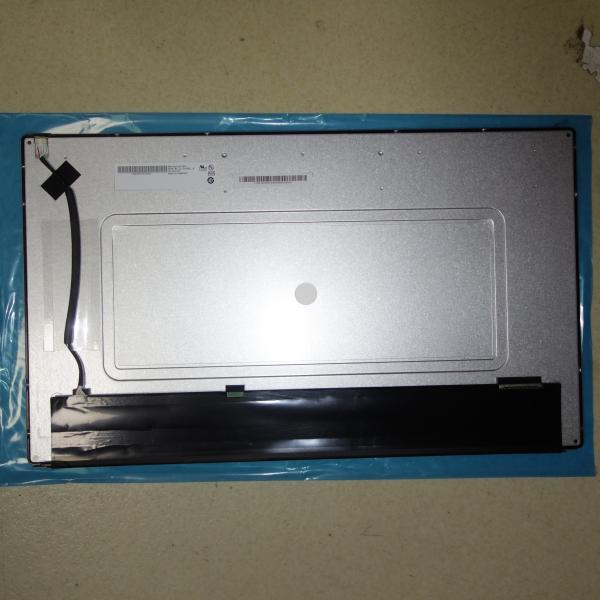

21.521.521.5
