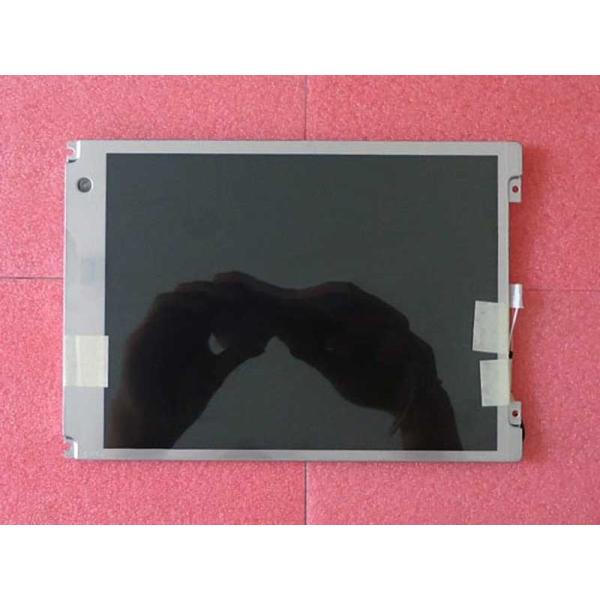

Smart 800×600 G084SN03 V1 8.4 Inch LCM Industrial LCD Panel
Smart 800×600 G084SN03 V1 8.4 Inch LCM Industrial LCD Panel
Specifications
Brand Name :
AUO
Model Number :
G084SN03 V1
Place of Origin :
taiwan
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T ,Western Union,PAYPAL,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
Standard Packaging
Panel Brand :
AUO
Panel Model :
G084SN03 V1
Panel Size :
8.4"
Panel Type :
a-Si TFT-LCD , LCM
Resolution :
800(RGB)×600, SVGA, 119PPI
Pixel Format :
RGB Vertical Stripe
Display Area :
170.4(W)×127.8(H) mm
Touch Screen :
Without
Description

Smart 800×600 G084SN03 V1 8.4 Inch LCM Industrial LCD Panel

Description Of AUO LCD Panel

G084SN03 V1 (Alias: G084SN03 V.1) is a 8.4 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in CCFL backlight, without backlight driver, without touch screen. On the basis of latest version datasheet Ver1.0 which was released out on 7 31 2008, G084SN03 V1 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

H497DAN01.1 AUO 5.0"
H650DAN01.0 AUO 6.4"
H572DAN01.0 AUO 5.7"
H546DAN01.2 AUO 5.5"
H499TAN03.0 AUO 5.0"
H572TAN01.0 AUO 5.7"
H466TAN02.3 AUO 4.7"
H446TAN03.1 AUO 4.5"
H446TAN03.0 AUO 4.5"
H546AAN01.0 AUO 5.5"
B070ATN01.0 CELL AUO 7.0"
A070SN02 V0 CELL AUO 7.0"
A050VVN01.2 AUO 5.0"
M320QAN01.1 CELL AUO 32.0"
M270HVN02.0 CELL AUO 27.0"
M270HTN01.1 CELL AUO 27.0"
B116XAN03.0 CELL AUO 11.6"

AUO G084SN03 V1 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
12 o'clock
Response Time
20/10 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6638K
Uniformity
1.43 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
46%
sRGB
64% coverage
Adobe RGB
48% coverage
DCI-P3
48% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G084SN03 V1 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
300/330mA (Typ./Max.)
Consumption
1W (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSB24013P20
1.0 mm
20 pins
1 pcs
LVDS-20P1C8B-140A

Application of AUO G084SN03 V1

1. Automotive Display

2. Medical display

3. Tablet PC

4. Intelligent Display

5. Industrial Display

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise

5. Sourcing line for different hard disks for different brands.
