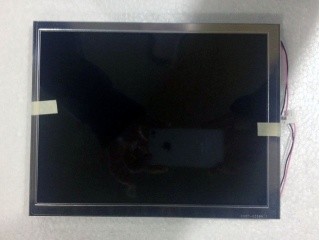

8.4 Inch 20 Pins Connector TFT LCD Display LB084S01-TL01 Without Driver
8.4 Inch 20 Pins Connector TFT LCD Display LB084S01-TL01 Without Driver
8.4 Inch 20 Pins Connector TFT LCD Display LB084S01-TL01 Without Driver
8.4 Inch 20 Pins Connector TFT LCD Display LB084S01-TL01 Without Driver
Specifications
Brand Name :
LG
Model Number :
LB084S01-TL01
Certification :
ISO9001
MOQ :
1
Payment Terms :
T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :
2600
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Size :
8.4 Inch
Resolution :
800*600
Brightness :
600 cd/m2 (Typ.)
Contrast Ratio :
600:1 (Typ.) (TM)
Viewing Angle :
75/75/70/50 (Typ.)(CR≥10)
Display Mode :
TN, Normally White, Transmissive
Lamp Type :
2 pcs CCFL , 30K hours , Without Driver
Display Colors :
262K/16.7M 45% NTSC
Best View on :
12 o'clock
Signal Interface :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Touch Screen :
Without
Description

1.LB084S01-TL01 Optical Details:

Basic Information : Luminance 600 cd/m² (Typ.) Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Good View at 12 o'clock Response Speed 7/18 (Typ.)(Tr/Td) (ms)
Viewing Angle 75/75/70/50 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 44% sRGB 61% coverage
Adobe RGB 46% coverage DCI-P3 45% coverage
Rec.2020 33% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

2.LB084S01-TL01 Mechanical Details:

Pixel Features : Number of Pixel 800(RGB)×600 [SVGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.071×0.213 mm Pixel Pitch(W×H) 0.213×0.213 mm [119PPI]
Physical Size : Active Viewing 170.4(W)×127.8(H) mm Overall Dim. 189.5(W)×148.6(H) mm
Bezel Opening 173.0(W)×130.6(H) mm Overall Depth 7.0/9.4 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style -
Fixation : Side mounting holes (4-M2) on left, right bezel
Other Detail : Mass 320/330g (Typ./Max.) Surface Antiglare, Hard coating (3H)

3.LB084S01-TL01 Interface Details:

Signal Electrical : Input Current 184/212mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption 0.61/0.70W (Typ./Max.) Signal Interface LVDS (1 ch, 6/8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
LS Mtron GT100-20P-LS-SMT 1 pcs 1.0 mm 20 pins LVDS-20P1C8B-180A

4.LB084S01-TL01 Lightting Details:

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange - Amount 2 pcs Life 30K(Typ.) (Hours)
Lamp Electrical : Input Current 3.0/7.0/8.0mA (Min./Typ./Max.) Input Voltage 380/390/480V (Min./Typ./Max.)
Frequency 30/60/80KHz (Min./Typ./Max.) Turn-on Voltage 800/1050V (Max.)(Ta=+25/0℃)
Consumption 5.46/6.01W (Typ./Max.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment 8.4 Inch 20 Pins Connector TFT LCD Display LB084S01-TL01 Without Driver
JST BHSR-02VS-2 2 pcs 3.5 mm 2 pins BLL-2PINS-HL
Backlight Driver : No

5.FAQ:

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
