800×480 7 LMS700KF15 Industrial TMR Samsung LCD Panel
800×480 7 LMS700KF15 Industrial TMR Samsung LCD Panel
800×480 7 LMS700KF15 Industrial TMR Samsung LCD Panel
800×480 7 LMS700KF15 Industrial TMR Samsung LCD Panel
Specifications
Brand Name :
Samsung
Model Number :
LMS700KF15
Place of Origin :
Korea
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Operating Temp. :
-30 ~ 80 °C
Storage Temp. :
-30 ~ 85 °C
Brightness :
350 cd/m² (Typ.)
Contrast Ratio :
700:1 (Typ.) (TM)
Viewing Angle :
70/70/70/70 (Typ.)(CR≥10)
Display Mode :
TN, Normally White, TMR
Signal Interface :
Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Lamp Type :
8S3P WLED , Without Driver
Description

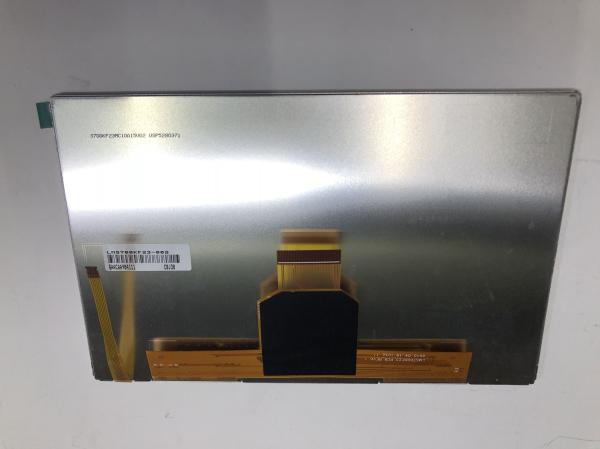

800×480 7" LMS700KF15 Industrial TMR Samsung LCD Panel

Description Of Samsung LCD Panel

Samsung Display Co., Ltd. (hereafter called SAMSUNG) LMS700KF15 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Based on datasheet with version of Rev.001 which was released out on 9 7 2009, LMS700KF15 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.

SAMSUNG LMS700KF15 Mechanical Details

Pixel Features : Pixel Format 800(RGB)×480 [WVGA] Dot Pitch 0.0635×0.1905 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1905×0.1905 mm (H×V) [133PPI]
Mechanical Size : Display Area 152.4×91.44 mm (H×V) Bezel Area 154.95×93.89 mm (H×V)
Outline Dim. 163.2×104 mm (H×V) Outline Depth 3.4±0.2 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 15:9 (H:V) Shape Style
Holes & Brackets : Without
Other Features : Weight 110g (Typ.) Surface -

SAMSUNG LMS700KF15 Optical Details

Basic Information : Brightness 350 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive)
Viewing Angle 70/70/70/70 (Typ.)(CR≥10) Optical Mode TN, Normally White, TMR
Viewing Direction 6 o'clock Response Time 16 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.316; Wy:0.335 Color Numbers 16.2M (6-bit + FRC)
Color Temperature 6287K White Uniformity 1.25/1.43 (Typ./Max.)(9 points) 800×480 7
1931 Color Gamlt : NTSC Ratio 50% sRGB 68% coverage
Adobe RGB 52% coverage DCI-P3 52% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmittance -

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

AMS549HQ02 Samsung 5.5"
AMS520BQ12-0 Samsung 5.2"
AMS497DX12-0 Samsung 5.0"
AMS163AN01 Samsung 1.63"
AMS510CV02 Samsung 5.1"
AMS510CV01 Samsung 5.1"
AMS302AK03 Samsung 3.0"
AMS353FD01-0 Samsung 3.5"
AMS499QP89-0 Samsung 5.0"
AMS529BY03 Samsung 5.3"
SDC 1.63 320×320 Samsung 1.63"
AMS499QP42-0 Samsung 5.0"
AMS529BY01 Samsung 5.3"
AMS309PW03-0 Samsung 3.1"
AMS497QH02 Samsung 5.0"
AMS497QH05 Samsung 5.0"

Application Of Samsung LCD Panel LMS700KF15

1. Tablet PC

2. Commercial Display

3. Medical Display

4. Automotive Display

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.
