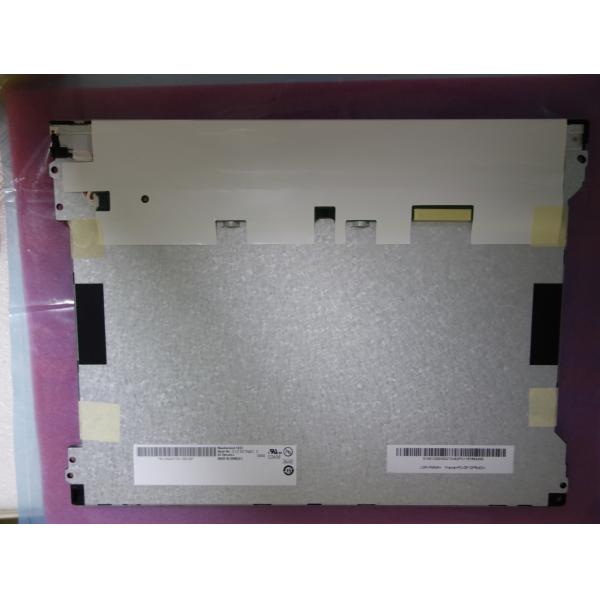

1024×768 G121XTN01.0 12.1 Inch AUO Lcd Monitor Panel
1024×768 G121XTN01.0 12.1 Inch AUO Lcd Monitor Panel
Specifications
Brand Name :
AUO
Model Number :
G121XTN01.0
Place of Origin :
Taiwan
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Luminance :
500 cd/m² (Typ.)
Operating Temp. :
-30 ~ 85 °C
Storage Temp. :
-30 ~ 85 °C
Contrast Ratio :
700 : 1 (Typ.) (TM)
Work Mode :
TN, Normally White, Transmissive
Signal Type :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Description

1024×768 G121XTN01.0 12.1 Inch AUO Lcd Monitor Panel

Description Of AUO LCD Panel

G121XTN01.0 is a 12.1 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.2 which was released out on 5 27 2014, G121XTN01.0 supports display 1024(2)×768(2) (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGBW Rectangle.

AUO G121XTN01.0 Mechanical Details

Pixel Features :
Resolution
1024(2)×768(2), XGA
Dot Pitch(mm)
0.120×0.120 (H×V)
Pixel Format
RGBW Rectangle
Pixel Pitch(mm)
0.240×0.240 (H×V) [105PPI]
Mechanical Size :
Active Area(mm)
245.76(H) × 184.32(V)
Bezel Area(mm)
250.8(H) × 188.4(V)
Outline Dim.(mm)
279(H) × 209(V)
Depth(mm)
9.0 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel
Other Spec :
Weight
495g (Max.)
Treatment
Antiglare, Hard coating (3H)

AUO G121XTN01.0 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
25/10 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6638K
White Uniformity
1.33 (Max.)(5 points) 1024×768 G121XTN01.0 12.1 Inch AUO Lcd Monitor Panel
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
92% coverage
Adobe RGB
72% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Below are our other LCD panels stock for your easy reference:

H429ALN01 V0 AUO 4.3"
H139BLN01.1 AUO 1.39"
H163QLN01.1 AUO 1.63"
H497TLB01 AUO 5.0"
H497TLB01.0 AUO 5.0"
M350DVR01.1 CELL AUO 35.0"
T320HVN02.1 CELL AUO 31.5"
M270DAN01.1 CELL AUO 27.0"
T500QVN03.3 CELL AUO 50"
T500QVN03.0 CELL AUO 50"
H546DAN07.3 AUO 5.5"
M270HVN02.3 CELL AUO 27.0"

Application Of AUO LCD Panel G121XTN01.0

1. Military Field LCD

2. Industrial Equipment LCD

3. Aerospace Field LCD

4. Medical Equipment LCD

Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.

Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2. Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
