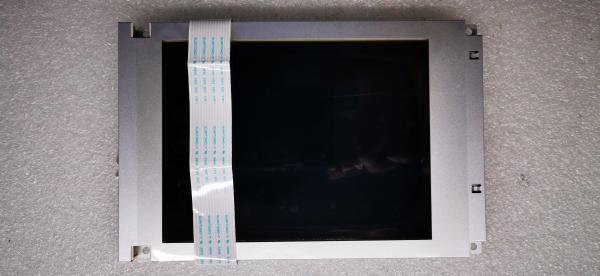

5.7 SP14Q002-A1 320×240 Monochrome Hitachi LCD Panel
5.7 SP14Q002-A1 320×240 Monochrome Hitachi LCD Panel
Specifications
Brand Name :
Hitachi
Model Number :
SP14Q002-A1
Place of Origin :
Korea
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Screen Size :
5.7 inch
Luminance :
140 cd/m² (Typ.)
Contrast Ratio :
25 : 1 (Typ.) (TM)
Viewing Angle :
40 (Typ.)(CR≥2, Φ2-Φ1)
Work Mode :
STN, Black/White (Negative), Transmissive
Signal Type :
Parallel Data (4-bit) , 14 pins FPC
Operating Temp. :
0 ~ 50 °C
Storage Temp. :
-20 ~ 60 °C
Description

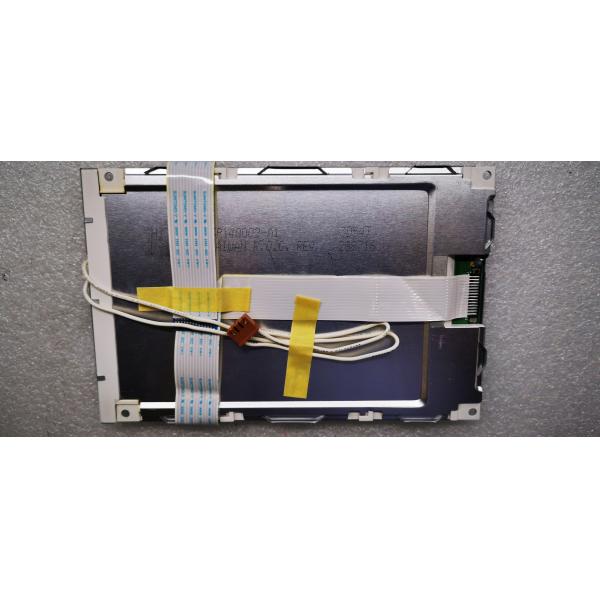

5.7" SP14Q002-A1 320×240 Monochrome Hitachi LCD Panel

Description of Hitachi LCD Panel

Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) SP14Q002-A1 is a 5.7 inch diagonal FSTN-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen. Based on datasheet with version of Ver.7 which was released out on 5 1 2012, SP14Q002-A1 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle.

HITACHI SP14Q002-A1 Mechanical Details

Pixel Features : Pixel Format 320×240 [QVGA] Dot Pitch 0.360×0.360 mm (H×V)
Configuration Rectangle Pixel Pitch 0.360×0.360 mm (H×V) [70PPI]
Mechanical Size : Display Area 115.185×86.385 mm (H×V) Bezel Area 122.0×92.0 mm (H×V)
Outline Dim. 167×109 mm (H×V) Outline Depth 8.5/10.0 (Typ.Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets : Face mounting holes (4-Φ3.5) on left, right bezel
Other Features : Weight - Surface Antiglare

HITACHI SP14Q002-A1 Optical Details

Basic Information : Brightness 140 cd/m² (Typ.) Contrast Ratio 25:1 (Typ.) (Transmissive)
Viewing Angle 40 (Typ.)(CR≥2, Φ2-Φ1) Optical Mode STN, Black/White (Negative), Transmissive
Viewing Direction 6 o'clock Response Time 120/150 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity - Color Numbers Monochrome

Application of Hitachi LCD Panel SP14Q002-A1

1. Outdoor and Handheld Device LCD

2. Aerospace Field LCD

3. Military Field LCD

4. Industrial Display

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

Feedback:

(1) Your early confirmation will be highly appreciated after receiving the item.

(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
