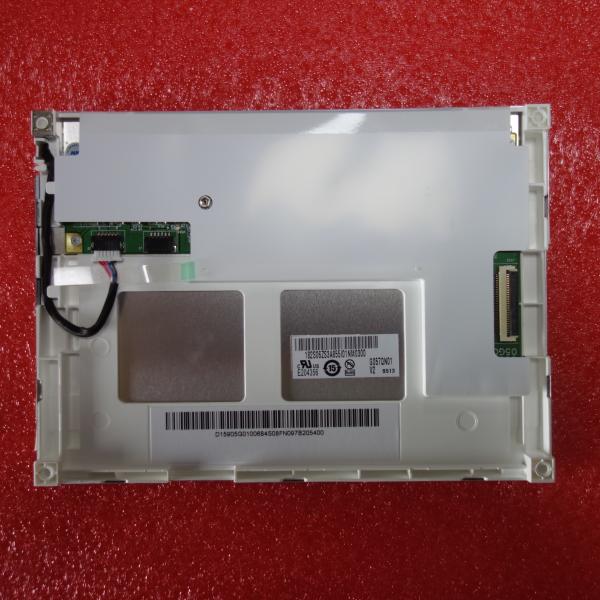

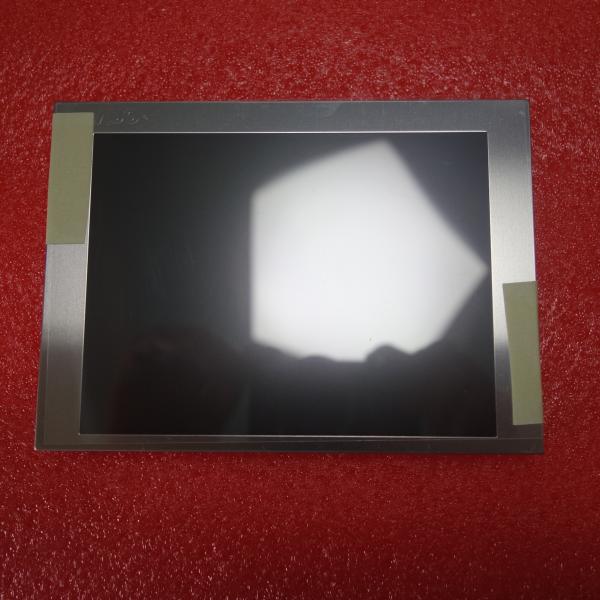

High Brightness G057QN01 V2 320×240 262K Outdoor LCD Panel
High Brightness G057QN01 V2 320×240 262K Outdoor LCD Panel
High Brightness G057QN01 V2 320×240 262K Outdoor LCD Panel
High Brightness G057QN01 V2 320×240 262K Outdoor LCD Panel
Specifications
Brand Name :
AUO
Model Number :
G057QN01 V2
Place of Origin :
taiwan
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Brand :
AUO
Model :
G057QN01 V2
Diagonal Size :
5.7 inch
Type :
a-Si TFT-LCD , LCM
Luminance :
800 cd/m² (Typ.)
Interface Type :
CMOS (1 ch, 6-bit) 33 pins Connector
Description

High Brightness G057QN01 V2 320×240 262K Outdoor LCD Panel

Description Of AUO LCD Panel

According to datasheet with version of Ver1.2 which was released out on 12 11 2014, G057QN01 V2 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150/165g (Typ./Max.).

AUO G057QN01 V2 Optical Details

Basic Information : Luminance 800 cd/m² (Typ.) Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Good View at 12 o'clock Response Speed 15/10 (Typ.)(Tr/Td) (ms)
Viewing Angle 80/80/70/70 (Typ.)(CR≥10) High Brightness G057QN01 V2 320×240 262K Outdoor LCD Panel Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K (6-bit)
Color Temperature 6485K White Uniformity 1.30 (Max.)(5 points) High Brightness G057QN01 V2 320×240 262K Outdoor LCD Panel
1931 Color Gamlt : NTSC Ratio 49% sRGB 69% coverage
Adobe RGB 52% coverage DCI-P3 51% coverage
Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -

AUO G057QN01 V2 Mechanical Details

Pixel Features : Number of Pixel 320(RGB)×240 [QVGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.120×0.360 mm Pixel Pitch(W×H) 0.360×0.360 mm [70PPI]
Physical Size : Active Viewing 115.2(W)×86.4(H) mm Overall Dim. 144(W)×104.6(H) mm
Bezel Opening 118.2(W)×89.4(H) mm Overall Depth 12.3/12.8 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style -
Fixation : Rear mounting holes (4-Φ2.6)
Other Detail : Mass 150/165g (Typ./Max.) Surface Antiglare, Hard coating (3H)

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information

H598QAN02.1 AUO 6.0"
M185XTN01.2 CELL AUO 18.5"
H598QAN01.0 AUO 6.0"
T430HVN01.2 CELL AUO 43"
H495TAN01.2 AUO 5.0"
T650QVN04.5 CELL AUO 65"
M320DVN01.0 CELL AUO 32.0"
M238HVN01.0 CELL AUO 23.8"
M238HVN01.2 CELL AUO 23.8"
T320XVN02.F CELL AUO 31.5"
T430HVN01.6 CELL AUO 43"
B101EAN01.2 CELL AUO 10.1"
H497EAN01.0 AUO 5.0"
T320XVN02.C CELL AUO 31.5"
T320HVN05.8 CELL AUO 31.5"
T500HVN07.5 CELL AUO 50"

Application Of AUO LCD Panel G101EVT03.2

1. Banking

2. Industrial Controling

3. Military

4. Monitoring

5. Medical Imaging

6. Securities

Pre-sales service :
1. Our team design and make solutions based on different requirements from different customers.
2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.

After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.

Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
