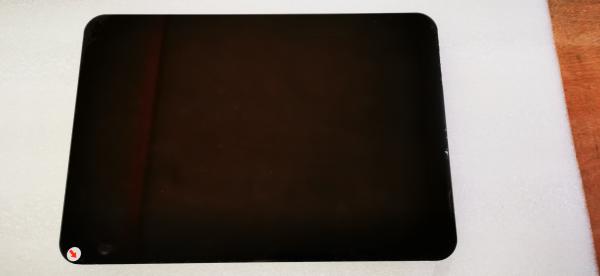

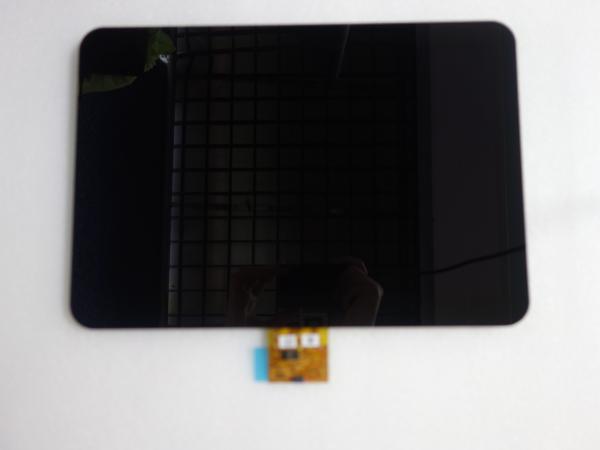

G121EAT02.0 WLED 12.1 1280×800 AUO LCD Panel With LED Driver
G121EAT02.0 WLED 12.1 1280×800 AUO LCD Panel With LED Driver
G121EAT02.0 WLED 12.1 1280×800 AUO LCD Panel With LED Driver
G121EAT02.0 WLED 12.1 1280×800 AUO LCD Panel With LED Driver
Specifications
Brand Name :
AUO
Model Number :
G121EAT02.0
Place of Origin :
Taiwan
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Luminance :
500 cd/m² (Typ.)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Interface Type :
LVDS (1 ch, 6/8-bit) , 30 pins Connector
Operating Temperature :
-30 ~ 85 °C
Contrast Ratio :
1000:1 (Typ.) (TM)
Light Source :
WLED , 100K hours , With LED Driver
Description

G121EAT02.0 WLED 12.1" 1280×800 AUO LCD Panel With LED Driver

Description Of AUO LCD Panel

AU Optronics Corp. (hereafter called AUO) G121EAT02.0 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver0.3 which was released out on 6 1 2016, G121EAT02.0 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe.

AUO G121EAT02.0 Mechanical Details

Pixel Features :
Resolution
1280(RGB)×800, WXGA
Dot Pitch(mm)
0.068×0.204 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.204×0.204 (H×V) [124PPI]
Mechanical Size :
Active Area(mm)
261.12(H) × 163.2(V)
Bezel Area(mm)
-
Outline Dim.(mm)
278(H) × 184(V)
Depth(mm)
9.29 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4 pcs) on left, right bezel
Other Spec :
Weight
TBD
Treatment
Antiglare, Hard coating (3H)

AUO G121EAT02.0 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(5 points) G121EAT02.0 WLED 12.1
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
99% coverage
Adobe RGB
75% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

H163QLN01.0 AUO 1.63"
H139BLN01.2 AUO 1.39"
H500TLB01.0 AUO 5.0"
X546DLB01.0 AUO 5.5"
H546DLB01.1 AUO 5.5"
H429ALN01 V0 AUO 4.3"
H139BLN01.1 AUO 1.39"
H163QLN01.1 AUO 1.63"
H497TLB01 AUO 5.0"
H497TLB01.0 AUO 5.0"
M350DVR01.1 CELL AUO 35.0"
T320HVN02.1 CELL AUO 31.5"

Application Of AUO LCD Panel G121EAT02.0

1. Tablet PC

2. Military Display

3. Indusrtial Display

4. Self-service Terminals Display

FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.
