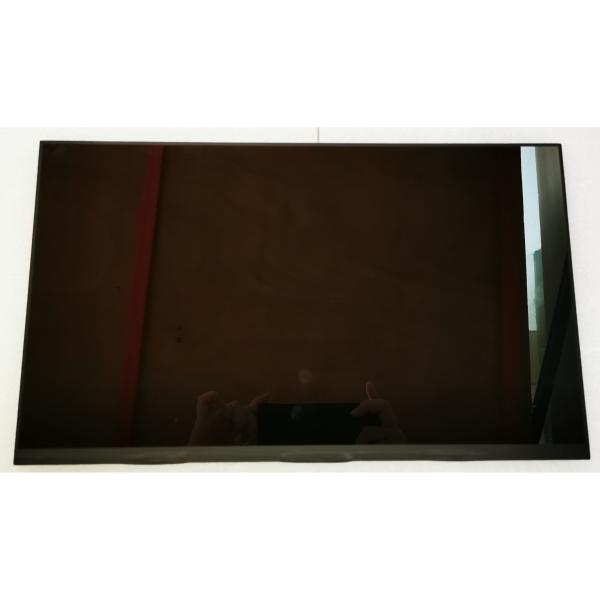

G156HAN05.0 15.6 1920×1080 Auo Lcd Display Sunlight Readable
G156HAN05.0 15.6 1920×1080 Auo Lcd Display Sunlight Readable
G156HAN05.0 15.6 1920×1080 Auo Lcd Display Sunlight Readable
G156HAN05.0 15.6 1920×1080 Auo Lcd Display Sunlight Readable
Specifications
Brand Name :
AUO
Model Number :
G156HAN05.0
Place of Origin :
Taiwan
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Brightness :
500 cd/m² (Typ.)
Operating Temp. :
-10 ~ 60 °C
Storage Temp. :
-20 ~ 70 °C
Display Mode :
AHVA, Normally Black, Transmissive
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio :
1000:1 (Typ.) (TM)
Lamp Type :
WLED , 50K hours , With LED Driver
Signal Interface :
eDP (1 Lane)
Description

G156HAN05.0 15.6" 1920×1080 Auo Lcd Display Sunlight Readable

Description Of AUO LCD Panel

G156HAN05.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, with surface treament of Antiglare, Hard coating (3H). As a AHVA, Normally Black, Transmissive LCM product, G156HAN05.0 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms.

AUO G156HAN05.0 Optical Details

Basic Detail :
Luminance
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.2M (6-bit + FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./Max.)(9 points) G156HAN05.0 15.6
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-

AUO G156HAN05.0 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.05975×0.17925 mm
Pixel Pitch(W×H)
0.17925×0.17925 mm [141PPI]
Physical Size :
Active Viewing
344.16(W)×193.59(H) mm
Overall Dim.
-
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Other Detail :
Mass
-
Surface
Antiglare, Hard coating (3H)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

B080EAN04.1 CELL AUO 8.0"
T500HVN08.8 CELL AUO 50"
H546DAN01.5 AUO 5.5"
H546DAN08.0 AUO 5.5"
B080XAN03.5 AUO 7.9"
B080XAN03.2 AUO 7.9"
H499TAN05.0 AUO 5.0"
H520DAN01.1 AUO 5.2"
B116XAN05.0 CELL AUO 11.6"
H495TAN01.0 AUO 5.0"
H598QAN02.1 AUO 6.0"
M185XTN01.2 CELL AUO 18.5"
H598QAN01.0 AUO 6.0"
T430HVN01.2 CELL AUO 43"

Application Of AUO LCD Panel G156HAN05.0

1. Self-service Terminals Display

2. Commercial Display

3. Intelligent Display

4. Medical Display

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2. Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
