Specifications
Brand Name :
AUO
Model Number :
G156HAN04.0
Place of Origin :
Taiwan
MOQ :
1
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Operating Temperature :
-30 ~ 85 °C
Luminance :
1000 cd/m² (Typ.)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Operating Mode :
AHVA, Normally Black, Transmissive
Contrast Ratio :
1000:1 (Typ.) (TM)
Interface Type :
LVDS (2 ch, 8-bit) , 30 pins Connector
Description

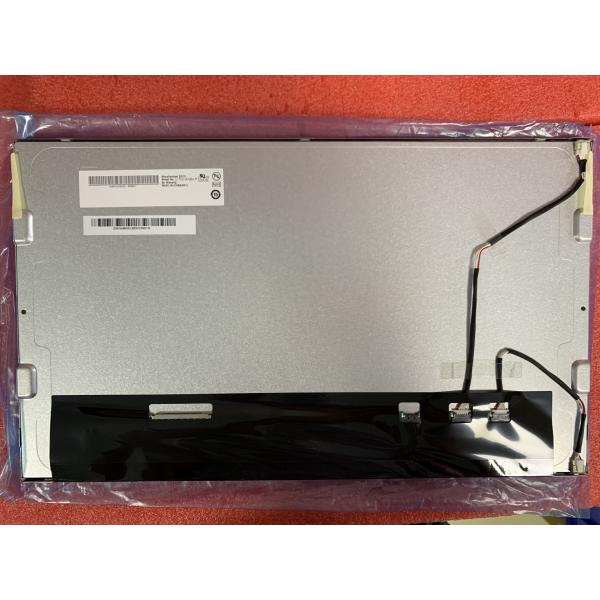

G156HAN04.0 15.6" 1920×1080 AUO Industrial TFT Panel Antiglare

Description Of AUO LCD Panel

AU Optronics Corp. (hereafter called AUO) G156HAN04.0 is a 15.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver0.1 which was released out on 2 20 2020, G156HAN04.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.

AUO G156HAN04.0 Mechanical Features

Panel Size : 15.6 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.05975×0.17925 mm 0.17925×0.17925 mm [141PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
344.16×193.59 mm - 363.8×215.9 mm 10.32±0.5 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:9 (W : H) Landscape type
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Features : Panel Cover Weight Surface
- 880/975W (Typ./Max.) Antiglare, Hard coating (3H)

Basic Information : Brightness Operating Mode Contrast Ratio
1000 cd/m² (Typ.) AHVA, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
Luminance Variation : 1.25/1.33 (Typ./Max.)(9 points) G156HAN04.0 15.6
Performance : 3D Type Outdoor Visibility Reflectance
- Sunlight Readable -

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

H598QAN01.0 AUO 6.0"
T430HVN01.2 CELL AUO 43"
H495TAN01.2 AUO 5.0"
T650QVN04.5 CELL AUO 65"
M320DVN01.0 CELL AUO 32.0"
M238HVN01.0 CELL AUO 23.8"
M238HVN01.2 CELL AUO 23.8"
T320XVN02.F CELL AUO 31.5"
T430HVN01.6 CELL AUO 43"
B101EAN01.2 CELL AUO 10.1"
H497EAN01.0 AUO 5.0"
T320XVN02.C CELL AUO 31.5"
T320HVN05.8 CELL AUO 31.5"

Application Of AUO LCD Panel G156HAN04.0

1. Military Display

2. Medical Display

3. Intelligent Display

4. Industrial Display

FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.

Packing & Delivery for our LCD Screen Panel Replacements:

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

G156HAN04.0 15.6
