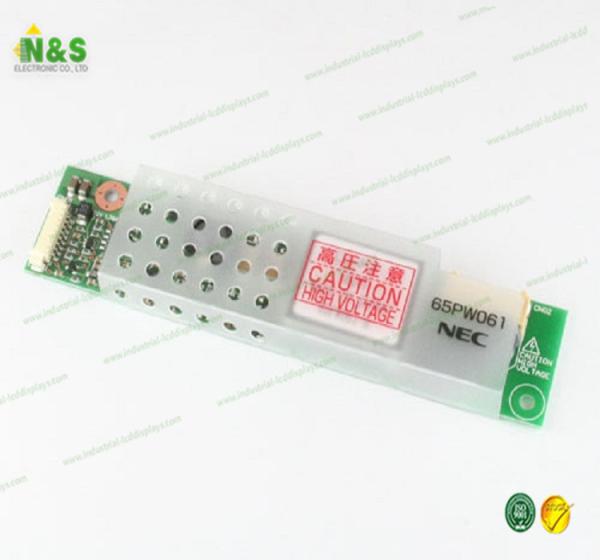

Adaptable LCD Module Cfl Inverter 12v NEC 65PW061 With ISO9001 Certification
Adaptable LCD Module Cfl Inverter 12v NEC 65PW061 With ISO9001 Certification
Adaptable LCD Module Cfl Inverter 12v NEC 65PW061 With ISO9001 Certification
Adaptable LCD Module Cfl Inverter 12v NEC 65PW061 With ISO9001 Certification
Specifications
Brand Name :
NEC
Model Number :
65PW061
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :
500PCS
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Size :
113x25x8.5 (*3)mm
Input Voltage :
12V
Output Voltage: :
1100V~1600V
Type :
DC/AC Inverters
Output Frequency: :
60kHz
D/C :
15+
Quality :
New and Original
Application :
Electronic component
Description

1.OUTLINE

This 65PW061 inverter is for LCD modile.A daptable LCD modules are as follows.

Adaptable LCD module

NL6448BC20-18D

NL6448BC20-20

2.SPECIFICATION

2.1 GENERAL SPECIFICATIONS

Item

Specification

Unit

Size

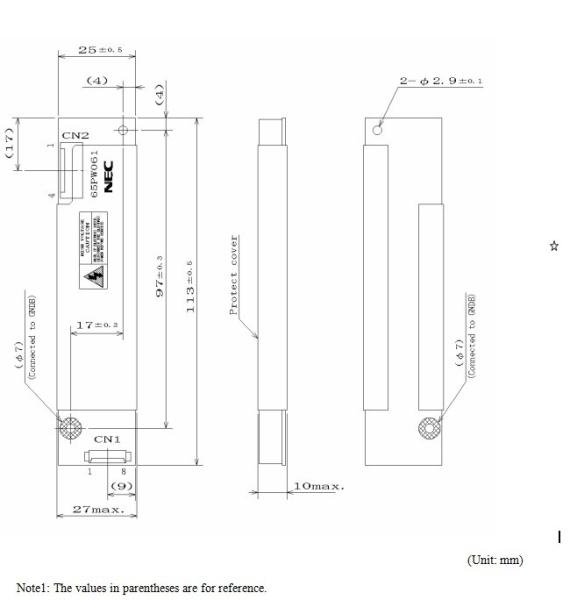

See "8.OUTLINE DRAWINGS".

mm

Weight

25 (max.)

g

Delivery unit

10 (min.)

set


2.2 ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Rating Unit Remarks
Power supply voltage VDDB 0 to +14.0 V

-

Input voltage

 BRTC signal VBC -1.0 to VDDB+1.0 V
BRTI signal VBI -1.0 to +5.0 V
Storage temperature Tst -20 to +85 °C -
Operating temperature Top -10 to +75 °C -

Relative humidity Note1

RH

 £ 95 % Ta £ 40°C
£ 85 % 40 < Ta £ 50°C
Absolute humidity Note1 AH

£ 70

Note2

 g/m3 Ta > 50°C

Note1: No condensation

Note2: Water amount at Ta= 50°C and RH= 85%

2.3 ELECTRICAL CHARACTERISTICS

(Ta= 25°C)

Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VDDB 4.5 - 13.2 V Note1, Note2

Power supply current

IDDB

-

-

1,500

mA

at VDDB= 4.5V

and the maximum luminance control

Note2, Note3

Input voltage

 BRTC signal High VBCH 2.0 - VDDB V

-
Low VBCL 0 - 0.8 V
BRTI signal VBI 0 - 2.5 V

Input current

 BRTC signal High IBCH - - 860 mA

-
Low IBCL -720 - - mA
BRTI signal IBI -1,110 - -20 mA

Output voltage

 Open lamp voltage VO 1,060 - - Vrms Ta= -10 to +75°C

Lamp voltage

(at steady state)

 VBLH - 360 - Vrms -
AM signal High VAMH 4.0 5.0 5.5 V at malfunction
Low VAML - 0 0.5 V at normal
Output current

Lamp current

(per lamp)

 IBL 4.5 5.0 5.5 mArms

at the maximum

luminance control
Oscillation frequency FO 50 55 60 kHz -
Luminance control frequency FB 240 255 269 HZ

Note1: When designing of the power supply, take the measures for the prevention of surge voltage.

Note2: The power supply lines (VDDB and GNDB) have large ripple voltage during luminance control of LCD lamps.

There is the possibility that the ripple voltage produces acoustic noise and signal wave noise in audio circuit and so on.

Put a capacitor (5,000 to 6,000mF) between the power supply lines (VDDB and GNDB) to reduce the noise,

if the noise occurred in the circuit.

Note3: IDDB= 500mA at VDDB= 12.0V, IDDB= 700mA at VDDB= 10.8V, IDDB= 1,050mA at VDDB= 5.0V

2.4 FUSE

Parameter

 Fuse

Rating

Fusing current

Remarks
Type Supplier

VDDB

CCP2E35HTTE

KOA Corporation

 1.75A

3.5A

Note1
72V

Note1: The power supply capacity should be more than the fusing current.

If it is less than the fusing current, the fuse may not blow in a short time,

And then nasty smell, smoke and so on may occur.
