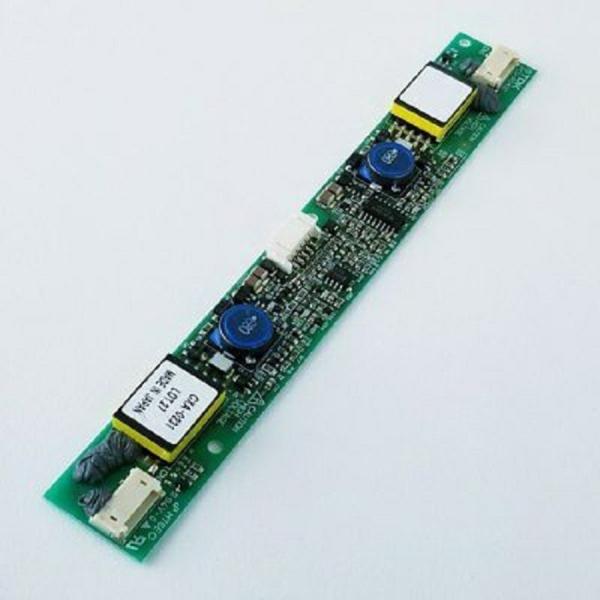

DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231
DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231
DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231
DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231
Specifications
Brand Name :
TDK
Model Number :
CXA-0231
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :
500PCS
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Size :
180x25x8 (*2)mm
Input Voltage :
12V
Output Voltage :
1500V~1700V
Type :
DC/AC Inverters
Output Frequency :
69kHz
D/C :
18+
Quality :
New and Original
Application :
Electronic component
Description

1.FEATURES:


• The CXA-0231 is an inverter for cold cathode fluorescent lamps and features a built-in dimmer.

• Because they employ advanced output current control, fluctuations in input voltage, load,

and distributed capacitance have virtually no effect on brightness

A PWM (pulse-width modulation) circuit mounted on the CXA- 0231 enables a brightness adjustment range to be wider than that of the conventional type.

• Output open and short circuit conditions result in no damage, heat generation, or other difficulties.

• Safe design that includes a built-in overcurrent protection element.

• The high-voltage terminal is coated with silicone so as to reduce a possibility of an occurrence of a defect caused by dust.

2.Electrical Characteristics

Item Unit Symbol Specification Condition
min typ max Vin(V) Vrmt(V) Vbr(V) Ta(℃ ) RL(kΩ) Remark

Output Current

mArms

Iout

(Maximum dimmer)

 5.5 6.0 6.5 12±0.6 5 0 23±5 95 (*1)
5.3 6.0 6.7 12±2.4 5 0 0 to +70 75 to 112 (*1)

Iout

(Minimum dimmer)

 0.6 1.5 2.4 12±0.6 5 1.3 23±5 95 (*1)
0.4 1.5 2.6 12±2.4 5 1.3 0 to +70 75 to 112 (*1)
Input Current A Iin1 - 0.78 1.4 12±2.4 5 0 to 1.3 0 to +70 75 to 112 Remote ON
mA Iin2 - 1 12±1.2 0 to 0.4 0 to 1.5 0 to +70 75 to 112 Remote OFF

Frequency

 kHz Freq1 53 60 67 12±2.4 5 0 0 to +70 75 to 112
kHz Freq2 55 62 69 12±2.4 5 0 0 to +70 75 to 112
Hz Freq3(Duty frequency) 225 270 335 12±2.4 5 1.3 0 to +70 75 to 112
Open Circuit Voltage Vrms Vopen 1500 1700 - 12±2.4 5 0 0 to +70 ∞ Open load

(*1) Please refer to the connection diagram for details of a dimming method.

3.Other Specifications

Dimming Function Yes
Operating Temperature ℃ 0 to +70
Storage Temperature ℃ -30 to +85
Operating Humidity Ratio RH% 95Max
Safety Standard ｰ
Weight g 30
Dimensions(WxDxH) mm 180x25x8 (*2)
Fused Input Yes
Remote ON ／ OFF Yes
Alarm Signal Function No
Shutdown Function No

Silicone Coating on

High Voltage Area

 Yes

(*2) These dimensions are indicated the maximum only H. Others are typical values.

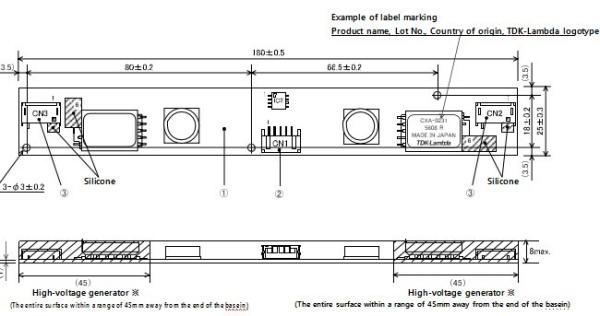

4.Connector

Connector

number

 Part number Model/Material Quantity Remarks Recommended applicable connector
① Printed circuit board PCB Composite(CEM-3) 1 UL94V-0 t=1.0 ー
② Input connector CN1 S5B-PH-SM4-TB(LF()SN) 1 JST Mfg. Co., Ltd. PHR-5
③ Output connector CN2,CN3 SM02(8.0)B-BHS-1-TB(LF()SN) 2 JST Mfg. Co., Ltd. BHR-03VS-1
