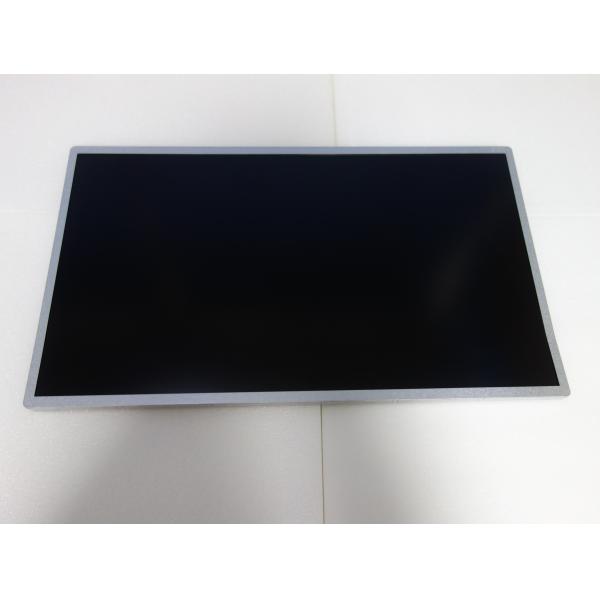

Wide Viewing Angle Medical Lcd Display , Tft Lcd Module 21.5'' 1920×1080 G215HVN01.1
Wide Viewing Angle Medical Lcd Display , Tft Lcd Module 21.5'' 1920×1080 G215HVN01.1
Wide Viewing Angle Medical Lcd Display , Tft Lcd Module 21.5'' 1920×1080 G215HVN01.1
Wide Viewing Angle Medical Lcd Display , Tft Lcd Module 21.5'' 1920×1080 G215HVN01.1
Wide Viewing Angle Medical Lcd Display , Tft Lcd Module 21.5'' 1920×1080 G215HVN01.1
Wide Viewing Angle Medical Lcd Display , Tft Lcd Module 21.5'' 1920×1080 G215HVN01.1
Specifications
Brand Name :
AUO
Model Number :
G215HVN01.1
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :
500PCS
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Size :
21.5 Inch
Screen Type :
LCM , a-Si TFT-LCD
Luminance :
250 cd/m² (Typ.)
Contrast Ratio :
5000 : 1 (Typ.) (TM)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Response :
10/6 (Typ.)(Tr/Td) ms
Backlight :
10S7P WLED , 30K hours , With LED Driver
Voltage Supply :
5.0V (Typ.)
Touchscreen :
Without
Use For :
Industrial
Description

1. General Description

This specification applies to the 21.5 inch-wide Color TFT-LCD Module G215HVN01.0.

The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bits data).

All input signals are dual channel LVDS interface.

LED driver board is included. G215HVN01.0 is designed for industrial display applications.

2.Display Characteristics

ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 546.86(21.53”)
Active Area [mm] 476.64 (H) x 268.11 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch [um] 248.25 (per one triad) ×248.25
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode VA Mode, Normally Black
White Luminance ( Center ) [cd/m2] 300 (Typ.)
Contrast Ratio 5000 (Typ.)
Optical Response Time [msec] 25 ms (Typ., on/off)
Nominal Input Voltage [Volt] +5.0 V
Backlight Input Voltage [Volt] +12.0 V
Power Consumption [Watt] 19.82 W (Typ. Cell 3.5 + LED 16.32) (with LED driver board, all white pattern)
Weight [Grams] 1,850 (± 185 g)
Physical Size [mm] 495.6(W) × 292.2(H) × 12.7(D)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 8 bits)
Surface Treatment Anti-Glare, 3H

Temperature Range Operating

Storage (Non-Operating)

[oC]

[oC]

0 to +60

-20 to +60
RoHS Compliance RoHS Compliance
TCO Compliance TCO 5.1 Compliance

3.Optical Characteristics

Item Unit Conditions Min. Typ. Max. Note

Viewing Angle

 [degree] Horizontal (Right) CR = 10 (Left)

75

75

89

89

-

-

1, 2
[degree]

Vertical (Upper)

CR = 10 (Lower)

75

75

89

89

-

-
Contrast ratio Normal Direction 3000 5000 - 3

Response Time

[msec]

 Raising Time (TrR) - 20 25
Falling Time (TrF) - 5 10

4
Raising + Falling - 25 35

Color / Chromaticity Coordinates (CIE)

 Red x 0.589 0.639 0.689

5
Red y 0.283 0.333 0.383
Green x 0.253 0.303 0.353
Green y 0.573 0.623 0.673
Blue x 0.105 0.155 0.205
Blue y 0.000 0.048 0.098
Color Coordinates (CIE) White White x 0.263 0.313 0.363
White y 0.279 0.329 0.379
Central Luminance [cd/m2] 240 300 - 6
Luminance Uniformity [%] 75 80 - 7
Crosstalk (in 60Hz) [%] 1.5 8
Flicker dB -20 9

4.Service
