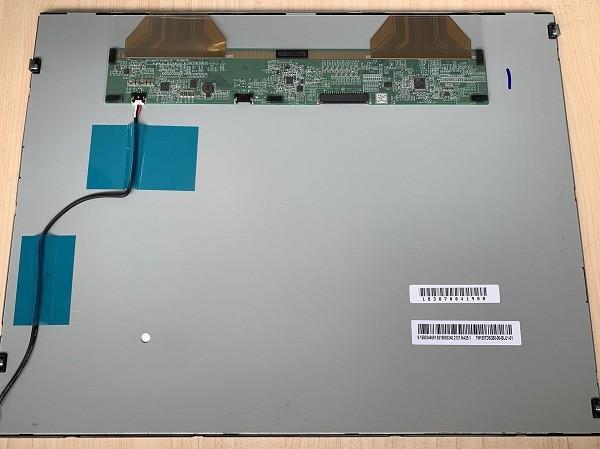

1024*768 TFT Tianma LCD Displays 15 Inch TM150TDSG80 LCM Composition LVDS Interface
1024*768 TFT Tianma LCD Displays 15 Inch TM150TDSG80 LCM Composition LVDS Interface
Specifications
Brand Name :
Tianma
Model Number :
TM150TDSG80
Certification :
ISO9001
Place of Origin :
Korea
MOQ :
1
Payment Terms :
T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :
500PCS
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Size :
15 Inch
Composition :
LCM
Resolution :
1024×768
Brightness :
350
C/R :
800:1
View Angle :
80/80/80/80
Colors :
262K/16.7M
Backlight :
WLED
Interface :
LVDS
Application :
Industrial
Description

1.General Specifications

Feature Spec

Display Spec.

 Size 15 inch
Resolution 1024xRGBx768
Technology Type a-Si
Pixel Configuration RGB vertical stripe
Pixel pitch(mm) 0.297(H) × 0.297(V)
Display Mode TM with Normally White
Surface Treatment Anti Glare
Viewing Direction 12:00
Gray Scale Inversion Direction 6:00

Mechanical Characteristics

 LCM (W x H x D) (mm) 326.5(H)×253.5 (V) ×10.0 (D) (max.)
Active Area(mm) 304.128(W) x 228.096 (V) (typ.)
With /Without TSP Without TSP
Connection Type

CN1:185083-20121-3

CN2:MSB24038P5
Weight (g) TBD

Backlight

LED backlight type

Replaceable lamp holder for backlight
Electrical Characteristics Interface LVDS 1port
Color Depth 16.7M/262K

Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.

Note 2: Requirements on Environmental Protection: RoHS

Note 3: LCM weight tolerance: ± 5%

2. Driving For LCD

Parameter Symbol min. typ. max. Uni t Remarks
Power supply voltage VCC 3.14 3.3 3.46 V -
Power supply ripple Vp-p 200mV V Including spike noise
Power supply current ICC - mA

at VDD = 3.3V

Note 1
Permissible ripple voltage VRP - - 100 mV VDD
Differential input voltage ︱Vid︱ 250 450 mV

Differential input threshold voltage for

LVDS receiver

 High VTH - - 100 mV

VCM = 1.25V

Note2
Low VTL -100 - mV
Input voltage width for LVDS receiver Vi 0 - 1.90 V -
Terminating resistor RT - 100 - Ω -
Rush current Irush - - 1.5 A Note3
Input voltage for MSL signals High VFH 0.4VCC VCC V
Low VFL 0 0.3VCC V

Note 1: Black mode, 65MHz

Note 2: Common mode voltage for LVDS receiver

Note 3: Measurement Conditions:

3.DISPLAY COLORS AND DATA SIGNAL

This product can display in equivalent to 16,777,216 colors in 254 scales.

Also the relation between display colors and input data signals is as the following table.

And it can display in equivalent to 262,144 colors in 64 scales, without data signals R7, R6, G7, G6, B7, B6 in the following table.
