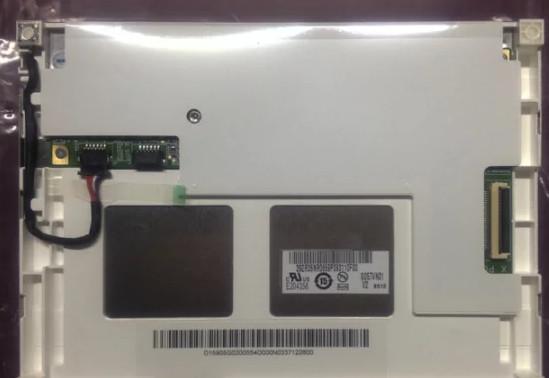

5.7 Inch High Brightness LCD Display G057VN01 V2 640*480 VGA AUO LCD Panel
5.7 Inch High Brightness LCD Display G057VN01 V2 640*480 VGA AUO LCD Panel
5.7 Inch High Brightness LCD Display G057VN01 V2 640*480 VGA AUO LCD Panel
5.7 Inch High Brightness LCD Display G057VN01 V2 640*480 VGA AUO LCD Panel
5.7 Inch High Brightness LCD Display G057VN01 V2 640*480 VGA AUO LCD Panel
5.7 Inch High Brightness LCD Display G057VN01 V2 640*480 VGA AUO LCD Panel
5.7 Inch High Brightness LCD Display G057VN01 V2 640*480 VGA AUO LCD Panel
5.7 Inch High Brightness LCD Display G057VN01 V2 640*480 VGA AUO LCD Panel
Specifications
Brand Name :
AUO
Model Number :
G057VN01 V2
Place of Origin :
TaiWan
MOQ :
500
Price :
pls contact us
Payment Terms :
Western Union,PAPLY,BANK TRANSFER
Supply Ability :
500
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Panel Brand :
AUO
Panel Model :
G057VN01 V2
Panel Size :
10.1"
Description

5.7 inch High Brightness LCD Display G057VN01 V2 / 640*480 VGA AUO Original New 5.7" 700 cd/m2 TFT Module

Part Number
G057VN01 V2
Brand
AUO
Diagonal Size
5.7"
Panel Type
a-Si TFT-LCD , LCM
Resolution
640(RGB)×480 [VGA]
Pixel Format
RGB Vertical Stripe
Treatment
Antiglare, Hard coating (3H)
Display Mode
TN, Normally White, Transmissive
Display Area
115.2(H)×86.4(V) mm
Outline Size
144(H)×104.6(V) ×12.8(D) mm
View Direction
12 o'clock
Viewing Angel
80/80/70/70 (Typ.) (CR>=10)
Luminance
700 cd/m² (Typ.)
Backlight
WLED , 50K hours , With LED Driver
Color Depth
262K 50% NTSC
Contrast Ratio
800:1 (Typ.) (TM)
Signal Interface
CMOS (1 ch, 6-bit) , 33 pins
Response Time
15/10 (Typ.)(Tr/Td)
Panel Weight
150/165g (Typ./Max.)
Input Voltage
3.3V (Typ.)
Frequency
60Hz
Touch Screen
Without
Operating Temp.
0 ~ 50 °C
Application
Industrial

We also have other industrial LCD panels, pls contact to us for the further information

Panel Model Brand Size
X139BLB01.0 AUO 1.39"
H381DLN01.0 AUO 3.8"
H497TLB01.4 AUO 5.0"
G173HW01 V0 CELL AUO 17.3"
T320HVN05.A CELL AUO 31.5"
B080EAN04.1 CELL AUO 8.0"
T500HVN08.8 CELL AUO 50"
H546DAN01.5 AUO 5.5"
H546DAN08.0 AUO 5.5"
B080XAN03.5 AUO 7.9"
B080XAN03.2 AUO 7.9"
H499TAN05.0 AUO 5.0"
H520DAN01.1 AUO 5.2"

Application Of AUO LCD Panel

  1. Office Electronic Equipment: money counting machine, office phone set, copying mechine...
  2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens...
  3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale...
  4. Medical Devices: sphygmomanometer...
  5. Sports Equipment: running machine...
  6. Industrial Control Equipment: remote control, punched-card machine...
  7. Information Terminal Display: POS...
  8. Security Products: elevator controller, electronic indicator...

Advantage Of AUO LCD Panel

  1. We are professional LCD module manufacture in China with precise and advanced equipments.
  2. High quality Control with CE,ROHS and so on approved.
  3. More than 10 years of industry experience and involved main markets all over the world
  4. Dedicated and professional sales team will offer you 24 hours online and immediate service
  5. OEM and ODM support,12 months warranty for all of our products
  6. Our mission is to help our customers achieve success, then fulfill our both dreams

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.
