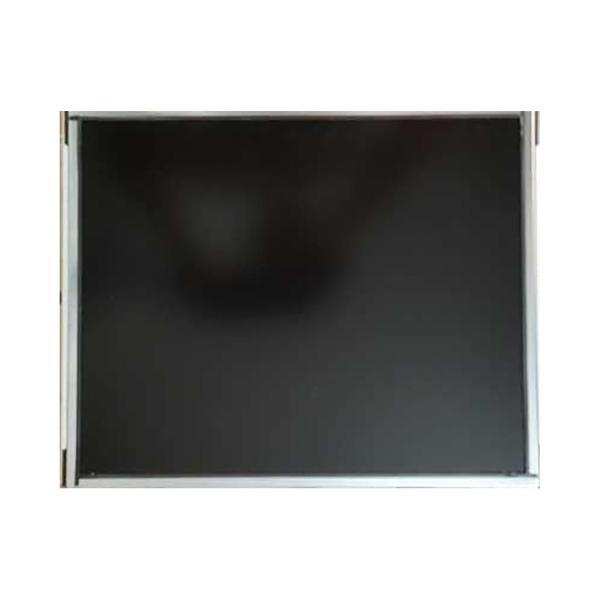

LQ190E1LX78 Sharp Replacement Lcd Panel 19 LCM 1280×1024 Brightness
LQ190E1LX78 Sharp Replacement Lcd Panel 19 LCM 1280×1024 Brightness
Specifications
Brand Name :
Sharp
Model Number :
LQ190E1LX78
Place of Origin :
korea
MOQ :
1pcs
Price :
pls contact us
Payment Terms :
T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :
500
Packaging Details :
standard Packaging
Brand :
Sharp
Model :
LQ190E1LX78
Diagonal Size :
19.0 inch
Type :
a-Si TFT-LCD, LCM
Pixel Format :
1280(RGB)×1024 [SXGA] 86PPI
Touch Panel :
Without
Description

LQ190E1LX78 Sharp Replacement Lcd Panel 19" LCM 1280×1024 Brightness

Sharp LQ190E1LX78 Mechanical Details

Pixel Features : Resolution 1280(RGB)×1024, SXGA Dot Pitch(mm) 0.098×0.294 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.294×0.294 (H×V) [86PPI]
Mechanical Size : Active Area(mm) 376.32(H) × 301.056(V) Bezel Area(mm) 380.65(H) × 306.5(V)
Outline Dim.(mm) 398.1(H) × 329.5(V) Depth(mm) 18.5 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 5:4 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Spec : Weight 2.30Kgs (Max.) Treatment Antiglare (Haze 3%), Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

Sharp LQ190E1LX78 Optical Details

Basic Information : Luminance(cd/m²) 1200 (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode ASV, Normally Black, Transmissive
Best View on Symmetry Response(ms) 35 (Typ.)(Tr+Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.43 (Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 78% sRGB 100% coverage
Adobe RGB 78% coverage DCI-P3 81% coverage
Rec.2020 58% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

We also have other industrial LCD panels, pls contact to us for the further information

Panel Model Brand Size
LM016LC1S07 SHARP 1.9"
LS050K3SX06A SHARP 5.0"
LK460D3HA10 SHARP 46"
LK315T3HB874 SHARP 31.5"
LK315T3HB873 SHARP 31.5"
LQ0DZC0156 SHARP 40"
LX080M1BB01 SHARP 8.0"
LS050K3SX09 SHARP 5.0"
LQ315D1EG02 SHARP 31.5"
JE0DZ1C0093 SHARP 60"
LK460D3FZ10 SHARP 46"
LQ0DZC0128 SHARP 31.5"
LQ0DASA469 SHARP 4.7"
LQ133M1JW08A SHARP 13.3"
LK315T3HC1K SHARP 31.5"
LQ055T3SX04 SHARP 5.5"
LQ079L1SX06 SHARP 7.9"
LQ079L1SX04 SHARP 7.9"
LQ133M1JW08 SHARP 13.3"

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

Shipment:

(1) Worldwide shipping. Any delivery way you want to choose, please contact us.

(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

(4) Delivery time is approximate:

------ Via DHL, Fedex, UPS: 3-7working days

------ Via EMS:7-15 working days

------ Via Direct Express Line:1-3 working days.
