Specifications
Brand Name :
OLYCOM
Model Number :
OM6000
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-8days
Packaging Details :
4pcs in one 55.5*40*43cm carton
Supply Ability :
1000pcs/month
Size :
19" 1U
Slots :
4
Function :
DWDM/CWDM/OTN
Power Supply :
Dual power supply
Feature :
Large Capacity
Transmission Capacity :
96x10Gbps / 96x100Gbps
Description

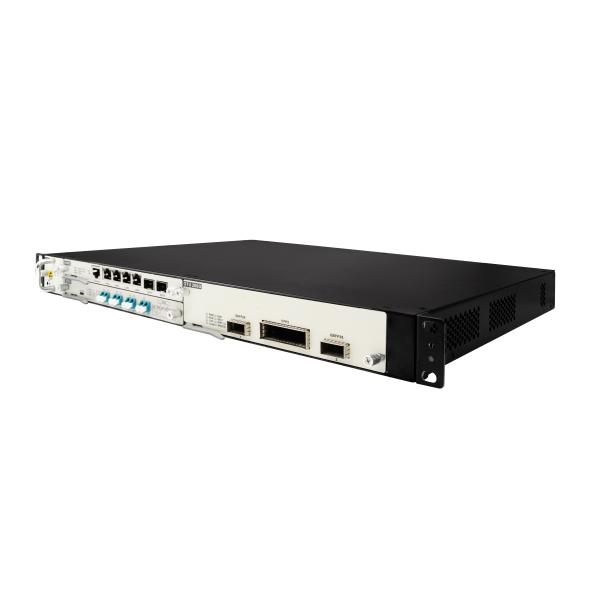

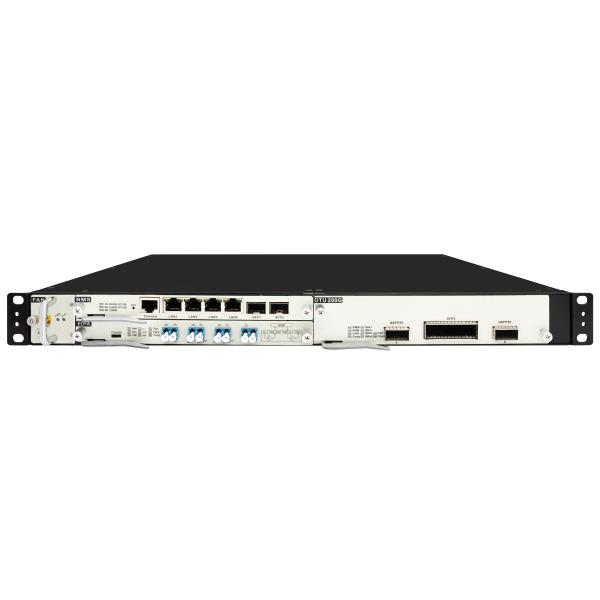

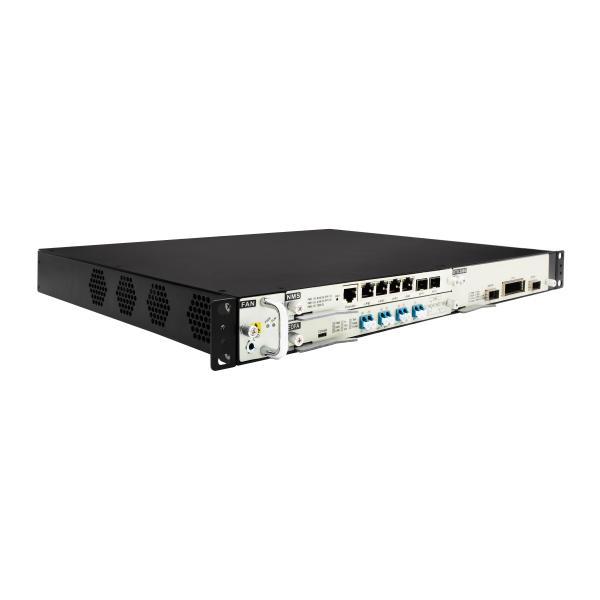

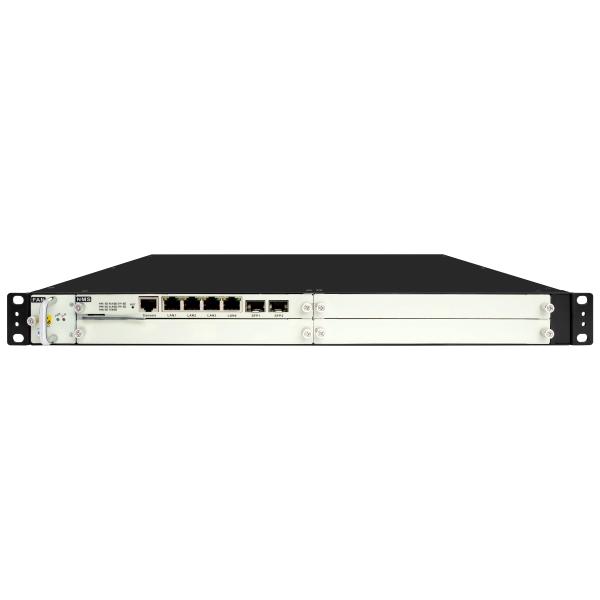

1U 19" 4 slots Intelligent DWDM/OTN Transmission Platform

Introduction

OM6000 is a compact, high-capacity, low-cost OTN optical transmission system which introduced by OLYCOM It adopts CWDM / DWDM common platform design, supports multi-service transparent transmission, and has flexible networking and access capabilities. Applicable to the national backbone network, provincial backbone network, metro backbone network and other core networks, to meet the needs of large-capacity nodes above 1.6T, is the industry‘s most cost-effective transmission application platform. Build a large-capacity WDM transmission expansion solution for IDC and ISP operators.

Key Features

1. Super T-bit Capacity
2. Intelligent Protection
3. High Reliability
4. Flexible and Transparent Access to Multiple Services
5. Large Capacity
6. Intelligent Transmission
7. Easy to Operate
8. Simple Maintenance
9. Intelligent Management Platform

Specification

Transmission Capacity 96x10Gbps /96x100Gbps
Network Management Unit EMS network management
OTU ● Support 1.25G ~10Gbps,100Gbps
● 1/2/4/8 /10Gbps Fibre Channel
● CPRI 2/3/4/5/6/7
● 1G/10G Ethernet LAN or WAN PHY
● STM-4/16/64 SONET/SDH
MUX/DEMUX Support 8ch/16ch/40ch/48ch
EDFA EDFA erbium doped fiber amplifier
DCM DCM:G.652/G655 Dispersion compensation fiber module
OLP OLP1 + 1 optical protection
Services Card 191 ( W ) x 253 ( D ) x 20 ( H ) mm
1U 4-slot Chassis 482.5 ( W ) x 350( D ) x 44.5 ( H ) mm
2U 8-slot Chassis 482.5 ( W ) x 350( D ) x 89 ( H ) mm
5U 20-slot Chassis 482.5 ( W ) x 350( D ) x 222.5 ( H ) mm
Operating Temperature -10℃ ~ 60℃
Storage Temperature -40℃ ~ 80℃
Relative Humidity 5% ~ 95% Non-condensing
Power Supply Mode Dual power supply, AC220V/DC-48V optional
Power Consumption 1U ＜120W, 2U＜200W, 5U＜400W

Applications


Telecom
Data center
5G Network
Long Haul Network

OM6000 include the following cards

NMS management card 100G QSFP28 to CFP transponder 2xQSFP28 to CFP2 200G Muxponder
100G Muxponder: QSFP28 ↔ 4xSFP28 40G&100G OEO: 6*QSFP28 SFP28 25G Quad transponder
SFP+ Multi-Rate Quad transponder Redundant Multi-Rate Dual transponder EDFA Optical Amplifiers
Bidi EDFA Optical Amplifiers 16ch DWDM MUX/DEMUX 40ch DWDM MUX/DEMUX(AAWG)
OLP Optical Line Protector DWDM Passive Optical Add/Drop Multiplexers DCM card
