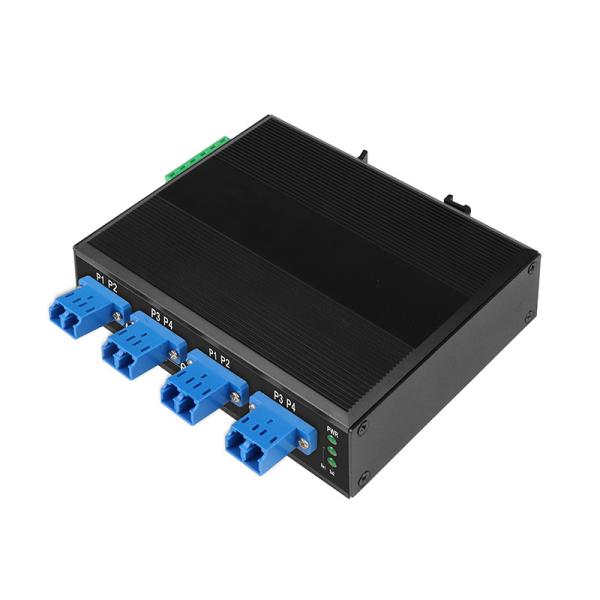

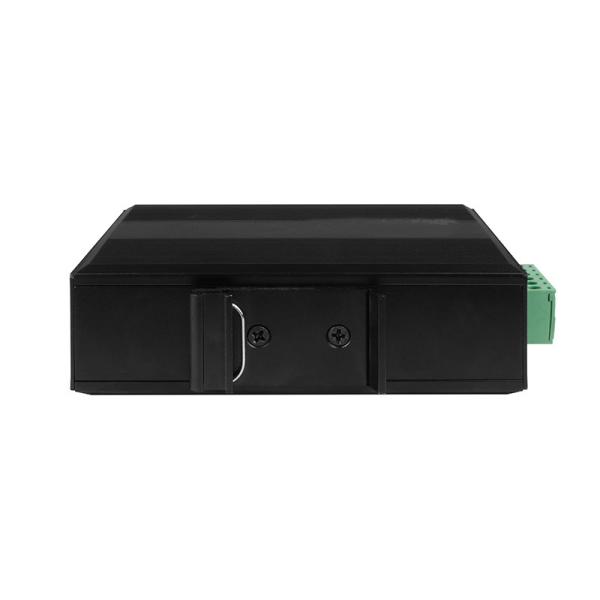

Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input
Specifications
Brand Name :
Olycom
Model Number :
OM-FBS-22LC1
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
5000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Product name :
2*2B Bypass optical switch
Certificaiton :
CE FCC ROHS compliance
Power supply :
DC12~52V
Packing :
Neutral Packing
Application :
Telecommunication Network
Description

Industrial Optical Bypass Switch

D2*2B/D4*4B OEM/ODM DC24V input

Introduction of bypass switch

The Fiber Bypass has the characteristics of low loss, high stability and high reliability. For different optical path needs, optical switch modules can be customized to meet the optical path needs of complex test systems and improve product test efficiency. It is an indispensable core product for the monitoring and protection of optical communication system, which can be connected to high-density optical communication systems.
Key Features of industrial optical bypass switch
  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Channel Crosstalk
  • Operating environment temperature: -20 ° ~70 ° c

Specification

Product Name Fiber Bypass

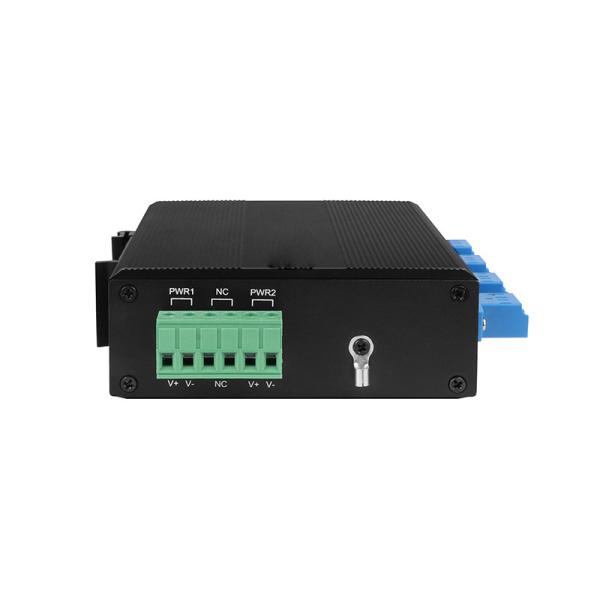

Power Interface Standard industrial terminal block.
Polarity Protection Support
Optical Fiber Interface LC
Wavelength Range 850±40/1300±40nm; 1260~1650nm
Test Wavelength 850/1300nm; 1310/1550nm
Insert Loss Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB
Return Loss MM≥30 dB SM≥50 dB
Channel Crosstalk MM≥35 dB SM≥55 dB
Polarization Loss ≤0.05 dB
Wavelength Loss ≤0.05 dB
Temperature Loss ≤0.05 dB
Repeatability ≤0.05 dB
Operating voltage 3.3V-5V
Service life ≥100000000 times
Switching time ≤10 ms
Transmission optical power ≤500 mw
Environment

Working temperature:-20°～ 70°C

Storage temperature:-40°～ 85°C

Application

Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input

Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input

Industrial Optical Bypass Switch D2*2B/D4*4B OEM/ODM DC24V Input

Production Steps:

Welding: Weld the necessary components

Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.

Assembling: Builds up components of a product, like panels, screws, PCB boards.

Testing: To make sure the product is basically working fine after assembling

Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.

Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.

QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product lable.

When all above is done, the product will go to market.

Product tags

hp switch sfp compatibility

,

dpdt switch schematic

,

4 pin optocoupler
