Specifications
Brand Name :
Olycom
Model Number :
OSPL1G05D
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen, China
MOQ :
1Pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal
Supply Ability :
3000Pcs per week
Delivery Time :
3~7 working days
Packaging Details :
1 piece in 1 carton. 0.2KG/pcs
Product name :
Industrial 1.25G SFP 1000Base-SX 850nm Module
Distance :
550m
Fiber :
LC, duplex, 850nm
Working Temp :
-40~+85°C
Feature :
1.25Gb/s, Hot Pluggable
Power :
3.3V
Description

Industrial 1.25G SFP 1000Base-SX 850nm MMF Multimode up to 550m Duplex LC DDM for Outdoor Use

Product Overview

OLYCOM’s OSPL1G05D Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 850 nm VCSEL laser, up to 9dB link budge ensure this module 1000Base Ethernet 550m application.

Features

  • Up to 1.25Gb/s Data Links.
  • Support Hot-Pluggable.
  • Duplex LC connector.
  • Up to 550m on 50/125μm MMF. 850nm VCSEL laser transmitter.
  • Single +3.3V Power Supply.
  • Monitoring Interface Compliant with SFF-8472.
  • Maximum Power <1W.
  • Industrial operating temperature range: -40°C to 85°C.
  • RoHS is compliant and Lead-Free.
  • Comply with international Electromagnetic Compatibility (EMC) and international safety requirements and standards.

Application

1. Metro/Access Networks

2. 1.25 Gb/s 1000Base-SX Ethernet

3. 1×Fibre Channel Other Optical Links

4. Some open industrial devices

Optical Parameteres

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 840 850 860 nm
Spectral Width(RMS) σRMS 0.85 nm
Optical Output Power Pout -9 -3 dBm 1
Extinction Ratio ER 8.2 dB
Optical Rise/Fall Time tr / tf 260 ps 2
Relative Intensity Noise RIN -120 dB/Hz
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 770 860 nm
Receiver Overload Pol 0 dBm 4
RX Sensitivity Sen -18 dBm 4
RX_LOS Assert LOS A -29 dBm
RX_LOS De-assert LOS D -19 dBm
RX_LOS Hysteresis LOS H 0.5 dB
General Specifications:
Data Rate BR 1.25 Gb/s
Bit Error Rate BER 10-12
Max. Supported Link Length on 50/125μm MMF@1.25Gb/s LMAX 550 m
Total System Budget LB 8 dB

Industrial 1.25G SFP 1000Base-SX 850nm MMF Multimode 550m Duplex LC DDM For Outdoor

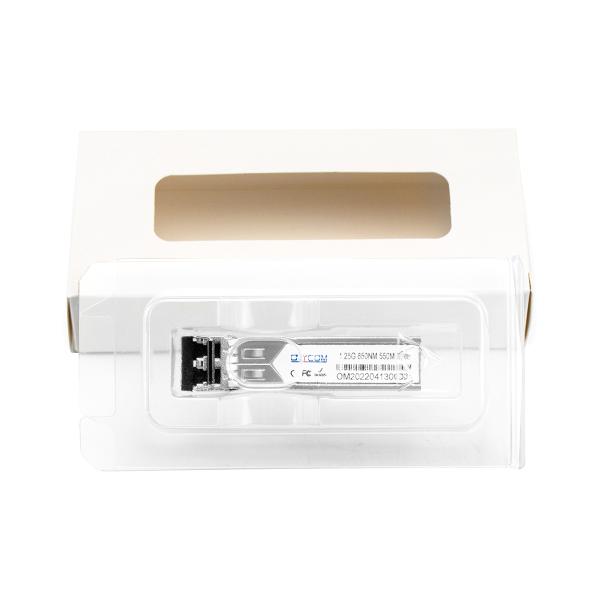

Product Photos

Industrial 1.25G SFP 1000Base-SX 850nm MMF Multimode 550m Duplex LC DDM For Outdoor

Industrial 1.25G SFP 1000Base-SX 850nm MMF Multimode 550m Duplex LC DDM For Outdoor

Industrial 1.25G SFP 1000Base-SX 850nm MMF Multimode 550m Duplex LC DDM For Outdoor
